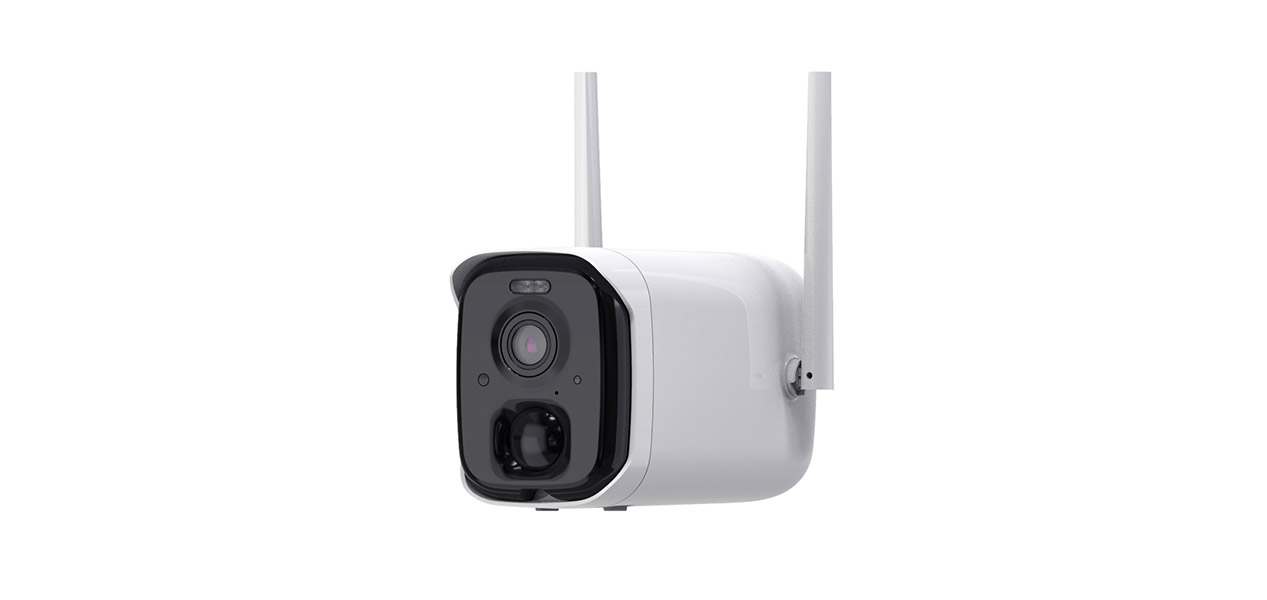

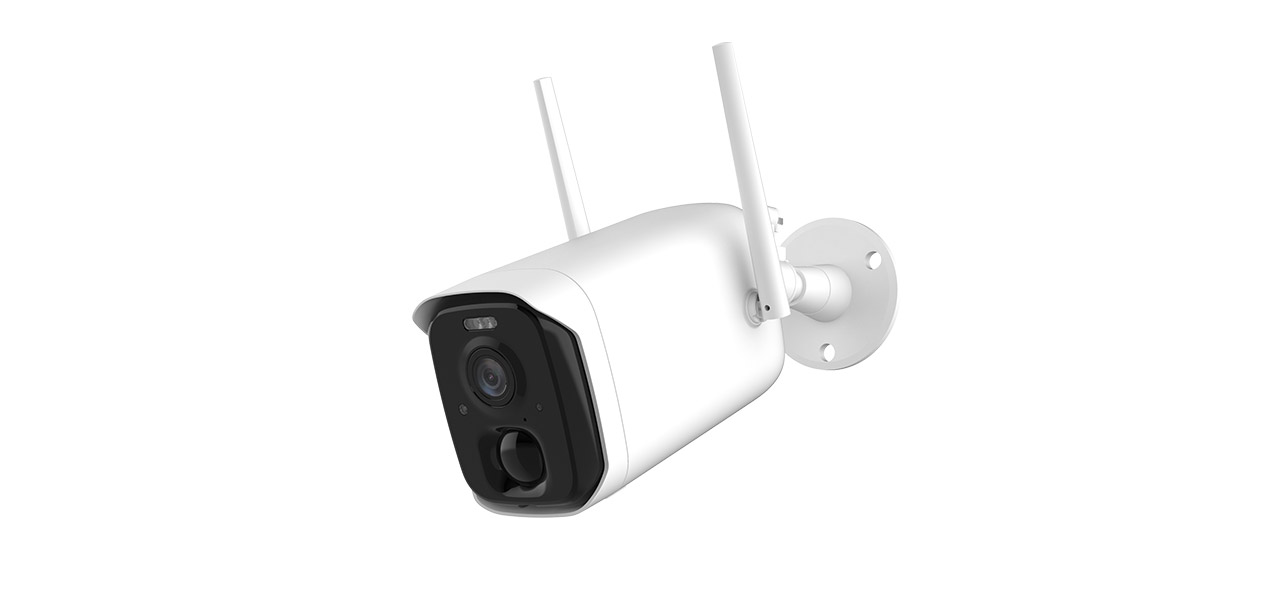

| Model NO. | AC84 |
| Camera | |
| Sensor | 1/3" CMOS |
| Focal Length | 2.97 mm |
| Aperture | F1.6 |
| Optical Field of View | 123.6° diagonal, 105° horizontal, 58.3° vertical |
| Minimum Illumination | 0.01 lux |
| Audio | |
| Input | Built-in microphone |
| Output | Built-in speaker |
| Two-way Audio | Full duplex |
| Audio Compressing | AAC |
| Video | |
| Video Compressing | H.264, H.265 |
| Lighting Frequency | 50 Hz, 60 Hz |
| Frame Rate | 15 fps |
| Maximum Resolution | 2560 x 1440 |
| Light Source For Night Vision | White light or infrared LED switchable |
| Network | |
| Wireless Standard | 2.4 GHz Wi-Fi (IEEE 802.11 b/g/n) |
| Protocols Supported | TCP/IP, UDP/IP, DHCP, RTMP, MUTP |
| IP Address Type | Dynamic IP address |
| Recording | |
| Recording Method | Alarm triggered recording, and manual recording |
| Video Storage | Cloud storage, local Micro SD card (up to 128 GB), and mobile phone memory |
| Function | |
| AI Function | Human detection, activity zone, vechicle detection, pet snapshot and package detection |
| Wake-up Method | PIR body induction wake-up and remote wake-up |
| Alarm Notification | Alarm push by mobile app, white LED flashing and alarm sound warning |
| Indicator | RGB tri-color LED |
| Battery | |
| Capacity | 9000 mAh |
| Removability | Unremovable |
| Working Time | 8 months (recording 20 pieces of 10-second video per day) |
| Standby Time | 2 years |
| Charging Voltage | 5 V ±5% |
| Charing Current | 1.5 A |
| Charging Time | 15 hours |
| Protection | Over-charge, over-discharge, over-current, short circuit and charging protection at high and low temperature |
| Power Consumption | |
| Standby | 1.93 mW |
| Daytime Working | 1.11 W |
| Nighttime Working | 2.02 W |
| Interface | |
| Power | Micro USB |
| Storage | Micro SD card |
| Key | Power key and reset key |
| Installation | |
| Installation Method | Wall mount, desktop |
| Bracket Type | 1/4'' universal screw hole |
| Environment | |
| Dustproof and Waterproof | IP65 |
| Operating Temperature | -10 ℃ ~ 45 ℃ |
| Storage Temperature | -20 ℃ ~ 60 ℃ |
| Prodoct dimension | |
| Dimension | 135 mm × 75.2 mm × 82.4 mm (without bracket) |
| Material | ABS + PC |
| Color | White |
| Certification | |
| Certification | CE, FCC, RoHS, WEEE, MSDS, UN38.3, UL62368 |
