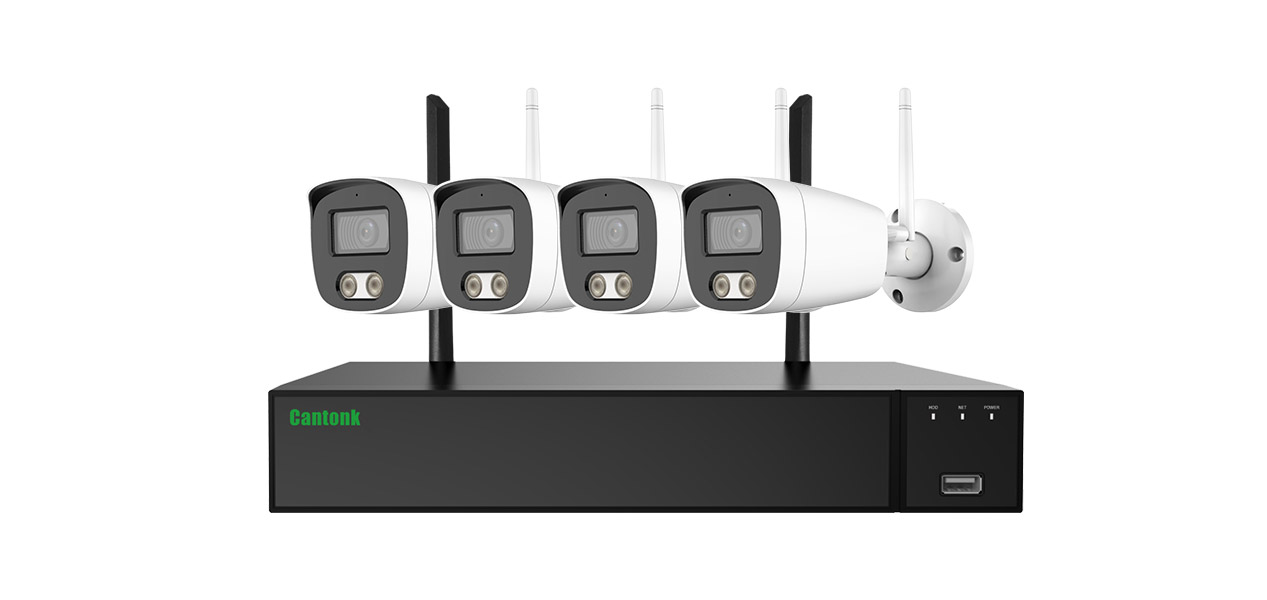

| Model NO. | LW8MC84B1 |
| Package | |
| NVR | 1x LW08C |
| Camera | 4 x LW8B1 |
| WIFI Range | No Obstacles 400m Max |
| Cable | 1 x 1m Net Cable |
| Mouse | 1xUSB 2.0 Mouse |
| Adaptor | 1xDC12V2A for NVR;4x12V1A for IPC |
| Weight | 3860g |
| Camera Model | LW8B1 |
| Camera | |
| Image Sensor | GC4653 1/3" CMOS |
| Resolution | 8MP |
| Compression | H.265 |
| TV System | PAL(default） |
| Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec |
| S/N Ratio | ≥52dB |
| Scanning System | Progressive |
| Video Output | Wireless network |
| Reset Button | Yes |
| LENS Type | |
| Focus Length | 2.8mm F2.0 |
| Focus Control | Fixed |
| Lens Type | Fixed |
| Pixels | 8M Pixels |
| Night Vision | |
| Infrared LED | LED: 2PCS IR light&White light |
| Infrared Distance | 30M |
| Fill light mode | Infrared / Full color / Smart |
| Network | |
| Ethernet | N/A |
| Protocol | Wi-Fi 802.11b/g/n |
| ONVIF | N/A |
| P2P | N/A |
| POE | N/A |
| Main Stream 1 | 3840*2160@15fps |
| Sub Stream 1 | 768*432@15f ps |
| IE Brower | N/A |
| Smart Phone | N/A |
| Wireless | |
| Antena | 3dBi |
| Hotspot | NO |
| Wi-Fi | Wi-Fi(IEEE802.11b/g/n) |
| WIFI Range | No obstacles 400m Max. |
| Camera Features | |
| Day/Night | Color/ B&W (IR-CUT ) |
| Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror |
| Screen rotation | Rotate 90°/180°/270° |
| ROI | N/A |
| Defog Mode | N/A |
| BLC | N/A |
| HDR | N/A |
| Intelligent detection | Human&Vehicle |
| Motion Detection | Support |
| Privacy Masking | 3 Rectangular Zone |
| Recording Mode | NVR |
| Interface | |
| Audio | Built-in microphone |
| Alarm | N/A |
| SD Card Slot | N/A |
| RS485 | N/A |
| General | |
| Housing | Metal IP67 |
| Anti-cut Bracket | YES |
| IR Cut Filter | YES |
| Operation Temperature | -30℃ ~ +55℃ RH95% Max |
| Storage Temperature | -20℃ ~ +55℃ RH95% Max |
| Power Source | DC12V±10%, 1A |
| Dimension | 169.5*70*67.5(mm) |
| Weight | 0.42kg |
| Model | LW08C |
| System | |
| Main Processor | ARM Cortex A7 Processor |
| Operating System | Embedded LINUX |
| Video | |
| Input | 8CH (8MP/5MP/4MP/3MP/2MP/960P/720P/D1) |
| Output | 1 VGA, 1 HD |
| Audio | |
| Input | N/A |
| Output | 1*3.5mm audio interface |
| Audio Bit Rate | 64kbps |
| Audio Compression standard | G711A |
| Alarm | |
| Sensor Input | NO |
| Output | NO |
| Motion Detection | 8 Channel, MD Zones: 396 (22 × 18) |
| Intelligent detection | Human&Vehicle |
| Trigger Events | Recording, Email, Buzzer,ScreenTip and Push notification |
| Display | |
| HD | 1024x768/60Hz,1280x720/60Hz,1280x1024/60Hz,1920x1080/60Hz,4K(3840x2160)/30Hz |
| VGA | 1024x768/60Hz,1280x720/60Hz,1280x1024/60Hz，1920x1080/60Hz |
| Display Split | 1/4/8/9 |
| Digital Zoom | YES |
| OSD | Camera name, Time |
| Recording | |
| Video Compression | H.265 |
| Resolution | 8MP(3840X2160),5MP(2880X1620),4MP(2688×1520),3MP(2048×1536),1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480) |
| Record Rate | 8MP@8x15fps,5MP@8×15fps,4MP@8x15fps,3MP@8×15fps,1080P@8×15fps, 960P@8×15fps,720P@8×15fps, D1@8×15fps |
| Record Mode | Manual\Timing\Motion\Intelligent |
| Playback & Backup | |
| Local Sync Playback | 2CH 8MP@15fps,4CH 5MP@15fps, 4CH 4MP@15fps, 4CH 3M@15fps, 4CH 1080P@15fps |
| Decode Capability | 1080P@120fps |
| Remote Sync Playback | YES |
| Search Mode | ALL, Channel, Manual, Timing, Motion Detection,Human,Vehicle |
| Playback Functions | Play, Stop, Backward ,Forward, Fast play, Slow Play, Frame forward,Audio,Editing |
| Backup Mode | Network/USB2.0 |
| Network | |
| Interface | 1xRJ-45 10/100Mbps self-adaptive Ethernet interface for LAN |
| Network Functions | TCP/IP,HTTP,NTP,SMTP,DHCP,DDNS,RTSP,RTCP,RTP |
| Onvif Version | N/A |
| Web Browser | Edge, Firefox, Chrome, Safari |
| CMS Software | N/A |
| Cloud Support(P2P) | Yes |
| Smart Phone | iPhone, Android |
| POE | N/A |
| WIFI | Support, WIFI Range: No Obstacles 400m Max. |
| Storage | |
| Interface Type | 1 SATA Hard Disk Interface (2.5"/3.5" SATA) |
| Capacity | Up to 8TB capacity |
| eSATA | N/A |
| General | |
| Language | Simplified Chinese, English, German, French, Spanish, Italian |
| USB Interface | 2 USB 2.0 Interfaces |
| RS485 | N/A |
| Power Supply | DC12V/2A<10W (Without HDD) |
| Working Environment | -10~55℃/10~90% |
| Dimension(W×D×H) | 260*215*46(mm) |
| Weight | 0.66kg |
