NVRC421PKM4KE200S
  • Specification
  • Drawing
  • Download
  • Feedback

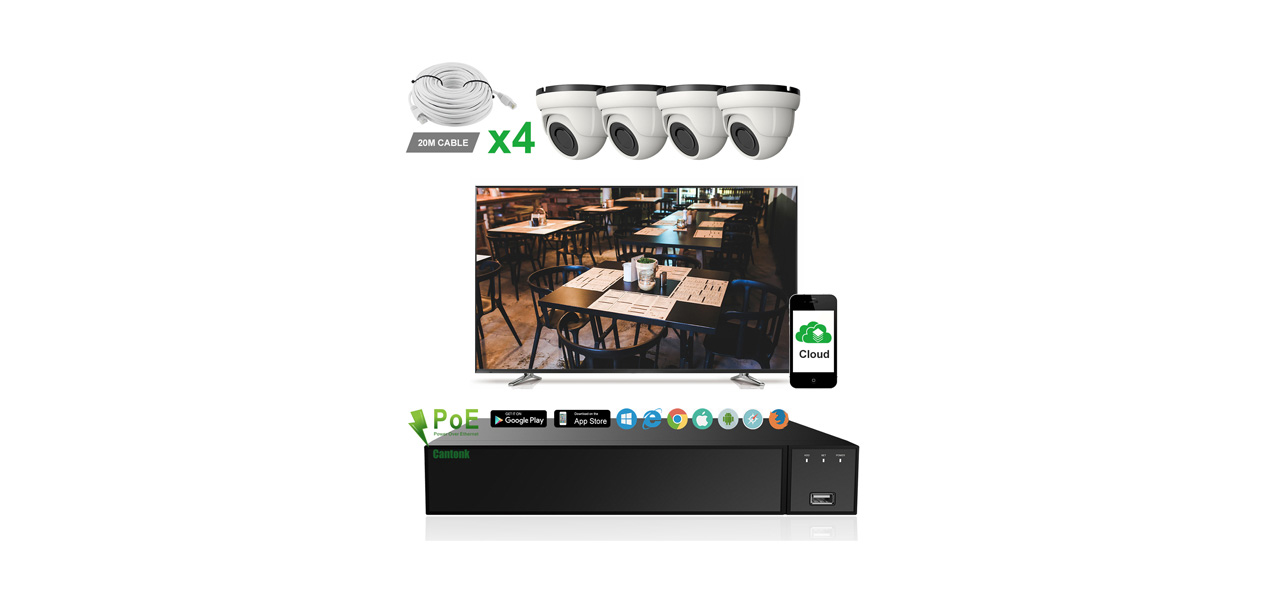

Model NO.NVRC421PKM4KE200S
Package
NVR1x NVRC421PK
Camera4 x IPSU20KE200
Cable4x 20m CAT5e Cable
Mouse1xUSB 2.0 Mouse
Hard Disk No
AdaptorDC52V/1.25A
Weight6.8kg/SET
Camera ModelIPSU20KE200
Image Sensor1/2.9"  Full HD CMOS Sensor
Resolution2MP 1080P
Effective Pixels1920(H)*1080(V)
Compression H.264/H.264+/H.265/H.265+/JPEG/AVI
TV SystemPAL/NTSC
Electronic Shutter TimeAuto: PAL 1/25-1/10000Sec; NTSC 1/30-1/10000Sec
Minimun Illumination0.01Lux
S/N Ratio≥60dB
Scanning SystemProgressive
Video OutputNetwork
Reset ButtonOptional
Lens
Focus Length3.6mm
Focus ControlFixed
Lens TypeFixed
Pixels2MP
Night Vision
Infrared LED14µ x 18PCS
Infrared Distance20M
IR StatusAuto Control
IR Power OnAuto Control
Network
EthernetRJ-45 (10/100Base-T)
Wireless/
ProtocolTCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP,UDP
ONVIFSupport ONVIF 2.4(Profile S/T/G)
P2PYES
POEYes, Support IEEE 802.3af
Video Delay0.3S (Within the Lan)
Main Stream 12304*1296@20fps
Main Stream 21920*1080@30fps
Main Stream 31280*720@30fps
Sub Stream 1720*480@30fps
Sub Stream 2352*288@30fps
Sub Stream 3/
Tri Stream/
IE Brower IE8-11, Google Chrome, Firefox , Mac Safari
Smart PhoneiPhone, iPad, Android, Android Pad
Camera Features
Day/NightColor/ B&W (IR-CUT )
Image ConfigSaturation/Brightness/Contrast /Sharpness, Mirror,  White Balance, FLK(Flicker Control)
Starlight/
Corridor PatternSupport
Defog  ModeSupport
ROI/
BLCYES
HDR/
WDRNO
Motion DetectionSupport
Privacy  Masking3 Rectangular Zone
Recording ModeNVR
LanguageChinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French,
Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands,Czech, Vietnamese
Interface
AudioOptional
Alarm/
SD Card Slot/
RS485/
General
HousingMetal , IP67
Anti-cut BracketNO
IR Cut FilterYES
Operation Temperature-20℃ ~ +60℃ RH95% Max
Storage Temperature-20℃ ~ +60℃ RH95% Max
Power SourceDC12V±10%, 750mA
Dimensionφ93 x 74(H) mm
Weight400g
ModelNVRC421PK
System
Main ProcessorARM Cortex A7 Processor
Operating SystemEmbedded LINUX
Video
Input9CH (3840×2160, 2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc)
Output1 VGA, 1 HD
Audio
Input1 Port RCA
Output1 Port RCA(Linear, 1kΩ)
Audio Bit Rate64kbps
Audio Compression standardG711u, G711a, ADPCM_DVI4
Alarm
Sensor Input4
Output1
Motion Detection9 Channel, MD Zones: 396 (22 × 18)
Trigger EventsRecording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output
Display
HD Output1Resolution:4K (3840 × 2160)/30Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz,
1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HD Output2/
VGAResolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Display Split9CHxD1/8CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k
Digital ZoomYES
OSDCamera Title, Time, Recording, Motion Detection, Event Alarm
Recording
Video CompressionH265/H264/H265+/H264+
Resolution4k(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),
1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480)
Record RatePAL :4K@8x25fps,5MP@9×25fp,4MP@9x25fp,3MP@9×25fp,1080P@9×25fp,
960P@9×25fp,720P@9×25fp, D1@9×25fp
 NTSC: 4K@8x30fps,5MP@9×30fp,4MP@9×30fp,3MP@9×30fp,1080P@9×30fp,
 960P@9×30fp, 720P@9×30fp, D1@9×30fp
Record ModeManual\Timer\Motion Detection\ Alarm\Motion and Alarm\Smart Alarm
Playback & Backup
Local Sync Playback1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps,
4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps
Decode Capability4CH 1080P(1920x1080)@30fps
Remote Sync PlaybackYES
Search ModeALL, Channel, Manual, Time, Date, Motion Detection,Event Alarm,Tag search
Playback FunctionsPlay, Pause, Stop, Rewind, Fast play, Slow Play, Full Screen, Frame Play ,Frame Rewind, Digital Zoom,tag,clip
Backup ModeUSB Device/Network
Network
Interface5 x RJ45 (10M/100M Adaptive Ethernet Interface)
Incoming Bandwidth80MB
Network FunctionsTCP/IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE
Onvif Support onvif S,onvif T
Web BrowserIE8-11, Google Chrome, Firefox , Mac Safari
CMS SoftwareSupport  Windows 7/ Windows 8/Windows 10/MAC OS
Cloud Support(P2P)Yes
Smart PhoneiPhone, iPad, Android, Android Pad
POE4 x Independent 100Mbps POE Network Interfaces(Output PowerAT mode 30W, AF mode 15W per Interface),
45/78 line order, Total Power Output
50W,  Support Plug and Play, Support network cable extended mode Max. 200M
WIFI/
Storage
Interface Type1 SATA Hard Disk Interface (2.5"/3.5" SATA)
CapacityUp to 8TB capacity
eSATA/
General
LanguageTraditional Chinese, Simplified Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian,
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek,  Vietnamese,Janpanese
USB Interface2 USB 2.0 Interfaces
RS485/
Power SupplyDC 52V/1250mA  ≤10W (Without Hard Disk and POE)
Working Environment-10~55℃/10~90%
Dimension(W×D×H)260*215*43(mm)
Weight2.0KG (without HDD)
