NVRC821PKM4FE800R
  • Specification
  • Drawing
  • Download
  • Feedback

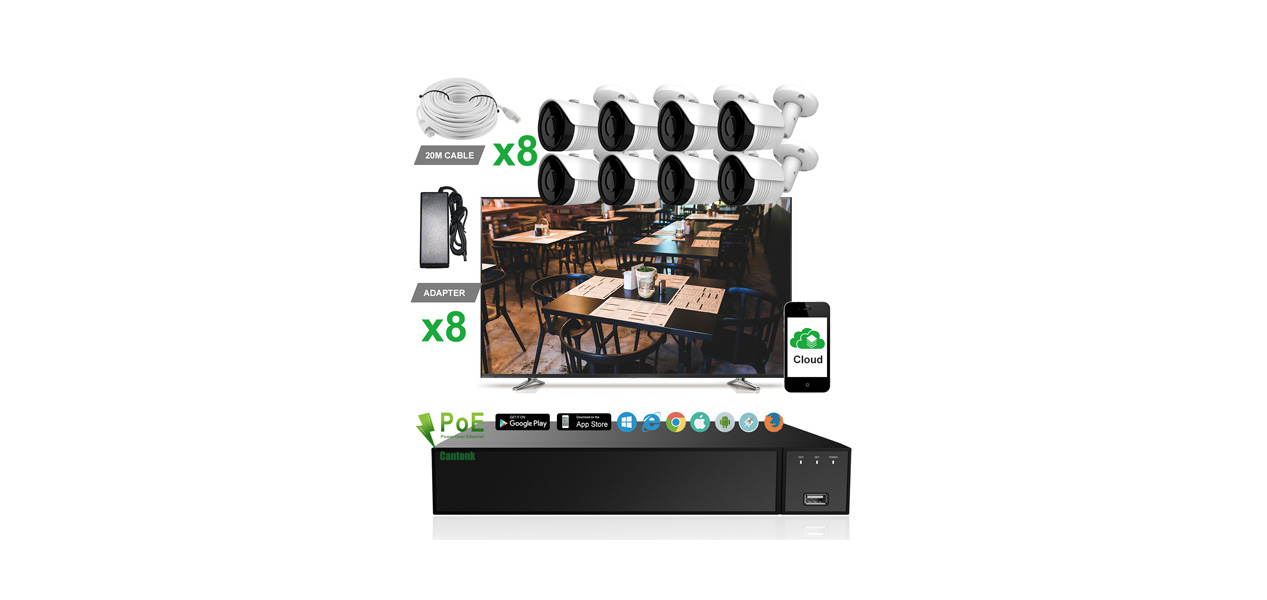

Model NO.NVRC821PKM4FE800R
Package
NVR1x NVRC821PK
Camera8 x IPR25FE800
Cable8x 20m CAT5e Cable
Mouse1xUSB 2.0 Mouse
Hard Disk No
AdaptorDC52V/2.5A
Weight10.8kg/SET
Camera ModelIPR25FE800
Image Sensor1/2.5" High-resolution CMOS Sensor
Resolution8MP
Effective Pixels2704(H)*1950(V)
Compression H.265
TV SystemPAL/NTSC
Electronic Shutter TimeAuto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
Minimun Illumination0.01Lux
S/N Ratio≥52dB
Scanning SystemProgressive
Video OutputNetwork
Reset ButtonOptional
Lens
Focus Length3.6mm
Focus ControlFixed
Lens TypeFixed
Pixels5MP
Night Vision
Infrared LED14µ x 20PCS
Infrared Distance25M
IR StatusAuto Control
IR Power OnAuto Control
Network
EthernetRJ-45 (10/100Base-T)
Wireless/
ProtocolTCP/IP,ICMP,RTP,RTSP,RTCP
ONVIF/
P2P/
POEYes, Support IEEE 802.3af
Video Delay0.3S (Within the Lan)
Main Stream 13840x2160@15fps
Main Stream 2/
Main Stream 3/
Sub Stream 11280x720@15fps
Sub Stream 2/
Sub Stream 3/
Tri Stream/
IE Brower /
Smart Phone/
Camera Features
Day/NightColor/ B&W (IR-CUT )
Image ConfigSaturation/Brightness/Contrast /Sharpness, Mirror,  White Balance, FLK(Flicker Control)
Starlight/
Corridor Pattern/
Defog  Mode/
ROI/
BLCYES
HDR/
WDRNO
Motion DetectionSupport
Privacy  Masking3 Rectangular Zone
Recording ModeNVR
Language/
Interface
Audio/
Alarm/
SD Card Slot/
RS485/
General
HousingMetal , IP67
Anti-cut BracketYES
IR Cut FilterYES
Operation Temperature-20℃ ~ +60℃ RH95% Max
Storage Temperature-20℃ ~ +60℃ RH95% Max
Power SourceDC12V±10%, 950mA
Dimension157(W) x 70(H) x 66(D)mm
Weight650g
ModelNVRC821PK
System
Main ProcessorARM Cortex A7 Processor
Operating SystemEmbedded LINUX
Video
Input16CH (3840×2160, 2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc)
Output1 VGA, 1 HD
Audio
Input1 Port RCA
Output1 Port RCA(Linear, 1kΩ)
Audio Bit Rate64kbps
Audio Compression standardG711u, G711a, ADPCM_DVI4
Alarm
Sensor Input4
Output1
Motion Detection16 Channel, MD Zones: 396 (22 × 18)
Trigger EventsRecording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output
Display
HD Output1Resolution:4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HD Output2/
VGAResolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Display Split16CHxD1/9CHxD1/8CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k
Digital ZoomYES
OSDCamera Title, Time, Recording, Motion Detection, Event Alarm
Recording
Video CompressionH265/H264/H265+/H264+
Resolution4k(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),
1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480)
Record RatePAL :4k@8×25fp,5MP@16×25fp,4MP@16x25fp,3MP@16×25fp,1080P@16×25fp, 960P@16×25fp,720P@16×25fp, D1@16×25fp
NTSC: 4k@8×30fp,5MP@16×30fp,4MP@16×30fp,3MP@16×30fp,1080P@16×30fp, 960P@16×30fp, 720P@16×30fp, D1@16×30fp
Record ModeManual\Timer\Motion Detection\ Alarm\Motion and Alarm\Smart Alarm
Playback & Backup
Local Sync Playback1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps
Decode Capability4CH 1080P(1920x1080)@30fps
Remote Sync PlaybackYES
Search ModeALL, Channel, Manual, Time, Date, Motion Detection,Event Alarm,Tag search
Playback FunctionsPlay, Pause, Stop, Rewind, Fast play, Slow Play, Full Screen, Frame Play ,Frame Rewind, Digital Zoom,tag,clip
Backup ModeUSB Device/Network
Network
Interface8 x RJ45 (10M/100M Adaptive Ethernet Interface)+1xRJ45 10M/100M/1000M Adaptive Ethernet Interface
Incoming Bandwidth100MB
Network FunctionsTCP/IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE
Onvif Support onvif S,onvif T
Web BrowserIE8-11, Google Chrome, Firefox , Mac Safari
CMS SoftwareSupport  Windows 7/ Windows 8/Windows 10/MAC OS
Cloud Support(P2P)Yes
Smart PhoneiPhone, iPad, Android, Android Pad
POE8 x Independent 100Mbps POE Network Interfaces(Output PowerAT mode 30W, AF mode 15W per Interface),
45/78 line order, Total Power Output≧100W,  Support Plug and Play, Support network cable extended mode Max. 200M
WIFI/
Storage
Interface Type1 SATA Hard Disk Interface (2.5"/3.5" SATA)
CapacityUp to 8TB capacity
eSATA/
General
LanguageTraditional Chinese, Simplified Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian,
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek,  Vietnamese,Janpanese
USB Interface2 USB 2.0 Interfaces
RS485/
Power SupplyDC 52V/2500mA  ≤10W (Without Hard Disk and POE)
Working Environment-10~55℃/10~90%
Dimension(W×D×H)260*215*43(mm)
Weight2.0KG (without HDD)
