XVRCT430M4FEH500S
  • Specification
  • Drawing
  • Download
  • Feedback
Model NO.XVRCT430M4FEH500S

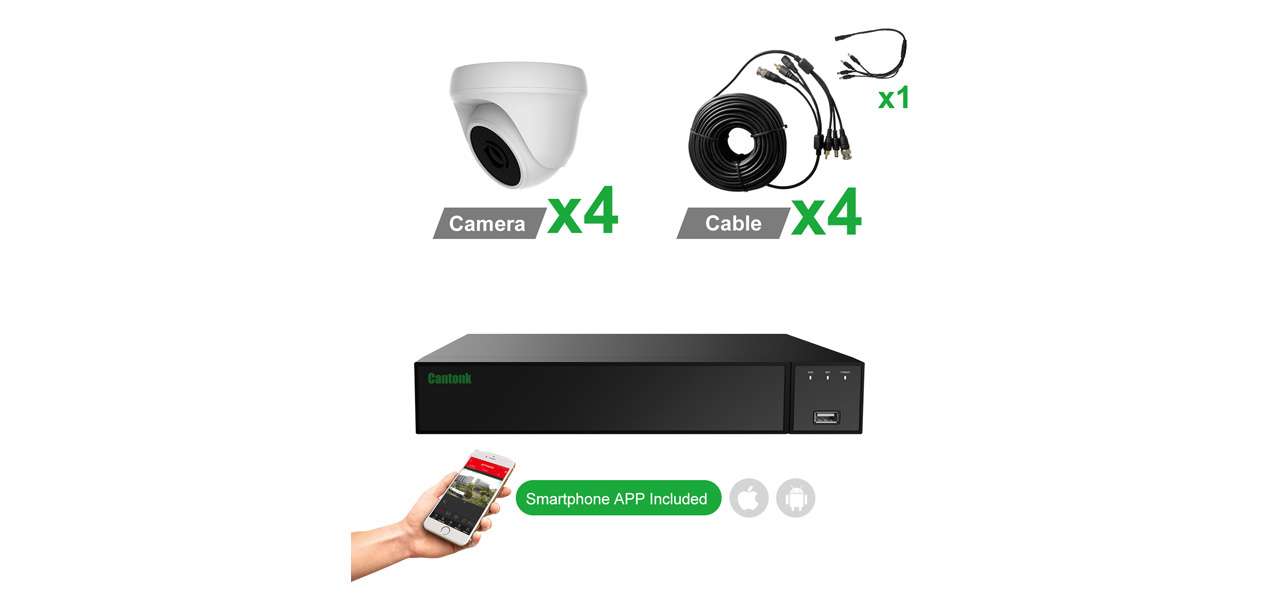

Package
XVR1x XVRCT430KT
Camera4 x KDSU20AHD500FEH
Cable4x 18m BNC+DC Cable, 1x (1 to 5CH power cable splitter)
Mouse1xUSB 2.0 Mouse
Hard Disk No
Adaptor1xDC12V/5A
Weight7.9kg/SET
Camera ModelKDSU20AHD500FEH
Image Sensor1/3" CMOS sensor
Image Resolution5M:2592*1944   4M:2560*1440  2M:1920*1080
TV SystemPAL/NTSC
Electronic ShutterAUTO
Scanning SystemProgressive  Scan
Lens
Focus Length3.6mm
Focus ControlFixed
Lens TypeFixed
Night Vision
IR Cut FilterYES
Infrared LED14µ x 18PCS
Infrared Distance20M
IR StatusAGC Auto Control
Camera Features
Starlight/
Day/Night  YES
OSD Menu YES
WDR DWDR
UTC YES
Noise Reduction DNR
White Balance AUTO / MANUAL
Gain Control AUTO
General
HousingMetal, IP66
BracketNO
Operation Temperature-10℃ ~ +60℃ RH95% Max
Storage Temperature-20℃ ~ +60℃ RH95% Max
Power SourceDC12V±10%, 550mA
Dimensionφ93 x 74(H) mm
Weight400g
ModelXVRCT430KT
System
Main ProcessorMC6630
Operating SystemEmbedded LINUX
Video
InputNormal Mode: Analog: 4*(TVI/AHD: 5M@12fps;  AHD/TVI/CVI: 4M@15fps;
AHD/TVI: 3M@18fps;  AHD/TVI/CVI: 1080P/720P;  Analog: 960H)
Analog+Network: 2*Analog(5MP@12fps;4MP@15fps;@3MP@18fps;2MP)+4*network(MAX 2MP)
Network: 9*5MP/4MP/3MP/1080P/960P/720P(Total incoming bandwidth ≤48M)
Input4CH BNC
Signal TypeAnalog/AHD/CVI/TVI 2.0/TVI 3.0/Network
Output1HD,1 VGA
Audio
Input2 Channel, RCA
Two-way AudioNO
Output1 Channel, RCA
Alarm
Sensor InputNO
OutputNO
Motion Detection4 Channel(max 9 Channel in pure network mode)
Trigger EventsRecording,  Email, Screen tips, Buzzer, Push notifications(motion detection)
Email AlarmSend Image to The Designated E-mail
PTZ

InterfaceRS485
ProtocolPelco-D, Pelco-P
Baud Rate110~921600
Address0~255
Display
VGAResolution: 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz
HD OutputResolution:1920 × 1080P/60Hz,  1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz
Display Split9 Channel/4 Channel / 1Channel
Privacy Masking3 Rectangular Zones (Each camera)
OSDCamera title, Time, Video loss, Alarm, Motion detection, Recording
Recording
Video CompressionH.265/H.264
Audio CompressionG.711u/G.711a
Resolution5MP_Lite(1296×1944),4MP_Lite(1280×1440),3MP_Lite(1024×1536),
1080N(960×1080),720P(1280×720),960H(P:960×576/N:960×480)
Video QualityLowest/Low/Ordinary/Good/Better/Best
Record RateAnalog:  PAL:5MP_Lite(1296×1944 4*8fps),4MP_Lite(1280×1440 4*15fps),3MP_Lite(1024×1536 4*18fps),
1080N(960x1080 4*18fps),720P(1280×720 4*20fps), 960H(960×480 4*25fps)
NTSC: 5MP_Lite(1296×1944 4*8fps),4MP_Lite(1280×1440 4*15fps),3MP_Lite(1024×1536 4*18fps),
1080N(960x1080 4*18fps),720P(1280×720 4*20fps), 960H(960×480 4*25fps)
Pure IP(H.265):
PAL: 5MP@8×25fps,4MP@9x25fps,3MP@9×25fps,1080P@9×25fps,960P@9×25fps,
720P@9×25fps,D1@9×25fps
NTSC: 5MP@8×30fps,4MP@9×30fps,3MP@9×30fps,1080P@9×30fps, 960P@9×30fps,
720P@9×30fps, D1@9×30fps
Record ModeManual\Timer\Motion Detection
Playback & Backup
Decode Capability2CH 1080P@30fps
Sync PlaybackPure Analog: 4CH 960H@25fps, 2CH 720P@20fps, 2CH 1080N@18fps,
1CH 5M_LITE@8fps, 1CH 4M_LITE@15fps, 1CH 3M_LITE@18fps
Mixture mode:  4CH 720P@25fps, 2CH 1080P@25fps,  1CH 5M_LITE@8fps,
1CH 4M_LITE@15fps, 1CH 3M_LITE@18fps
Pure Network: 4CH*720P@25fps, 2CH 1080P@25fps, 1CH 5MP@25fps
Remote Playback1Channel
Search ModeALL, Channel, Manual, Time, Date, Motion Detection
Playback FunctionsPlay, Pause, Stop, Fast play, Slow play, Rewind, Single frame forward/back, Digital Zoom, Full screen
Smart Phone Playback4 Channel
Backup ModeUSB Device(with fomat FAT 32 )/Network/FTP
Network
Interface1 RJ45 10M/100M Adaptive Ethernet Interface
Network FunctionsTCP/IP, HTTP, UPnP, DNS, NTP, SMTP,DHCP, FTP, DDNS, RTP, RTSP, RTCP
DDNSDyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE,HDPROVN
Web BrowserEdge,IE8-11, Google Chrome , Firefox ,Safari
CMS SoftwareSupport  Windows 7/ Windows 8/Windows 10
Extra StreamCIF/D1(1~25fps)
Smart PhoneiPhone, ipad,  Android ,Android pad
Hard Disk Driver
Interface Type1 SATA Interface
Capacity1 SATA Hard Disk (2.5"/3.5" SATA, Up to 8TB)
General
General
LanguageSimplified Chinese,Traditional Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Japanese,
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek, Vietnamese,
UTC ControlYES
USB Interface2 USB 2.0 Interfaces
Power consumptionDC 12V/2A  ≤4W (Without Hard Disk)
Working Environment-10~55℃/10~90%
Dimension (W×D×H)260*215*43(mm)
