WIFIMB4364FK500
  • Specification
  • Drawing
  • Download
  • Feedback

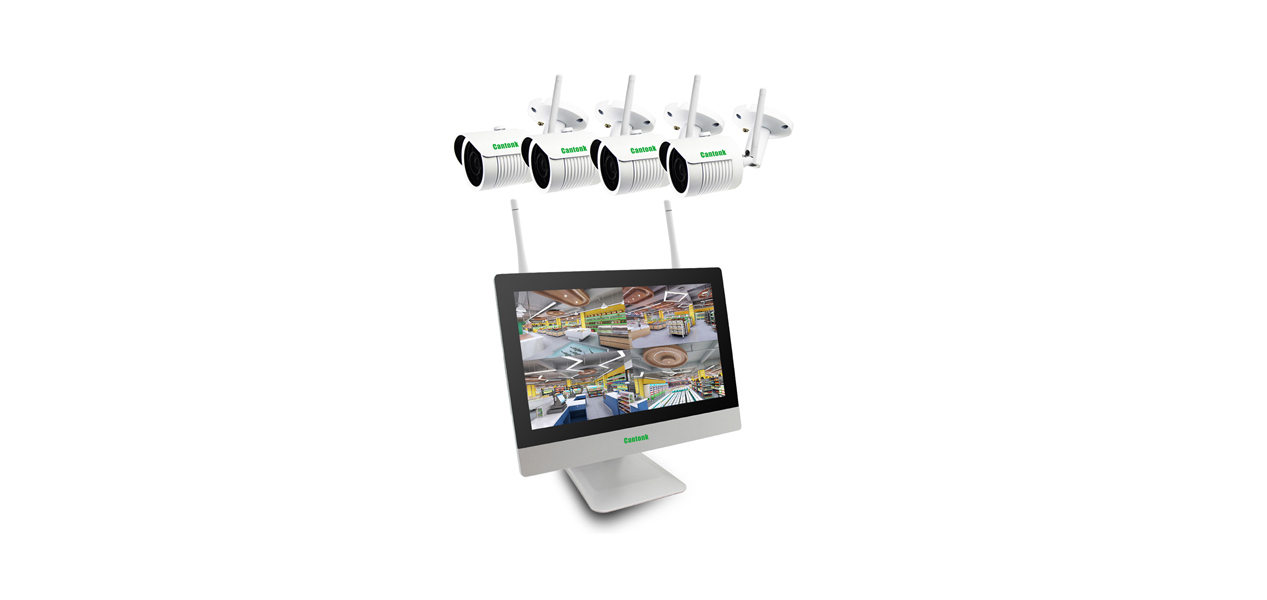

Model NO.WIFIMB4364FK500
Package
NVR1x NVRM436W
Camera4 x  IPR25FK500W
WIFI RangeNo Obstacles 300m Max
Cable1 x 1m Net Cable
Mouse1xUSB 2.0 Mouse
Adaptor1xDC 12V 2A for WIFI NVR, 4xDC 12V 0.5A for WIFI IP Camera
Weight5.5kg/SET
Camera Model IPR25FK500W
Camera
Image Sensor1/2.5"  High-resolution CMOS Sensor
Resolution5MP
Effective Pixels2608(H)*1952(V)
Compression H.264/H.264+/H.265/H.265+
TV SystemPAL/NTSC
Electronic Shutter TimeAuto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
S/N Ratio≥52dB
Scanning SystemProgressive
Video OutputWireless network
Reset ButtonYes
LENS Type
Focus Length3.6mm
Focus ControlFixed
Lens TypeFixed
Pixels5M Pixels
Night Vision
Infrared LED42µ x 2PCS
Infrared Distance25M
IR Status Auto Control
IR Power On Auto Control
Network
Ethernet/
ProtocolTCP/IP,ICMP,RTP,RTSP,RTCP
ONVIF/
P2P/
POE/
Main Stream 12592*1944@1-15fps(default resolution:2592*1944/frame rate:15fps/bit rate:1.8Mbps)
Main Stream 2/
Main Stream 3/
Sub Stream 11280*720@1-15fps(default frame rate:15fps/bit rate:1Mbps)
Sub Stream 2/
Sub Stream 3/
Tri Stream/
IE Brower /
Smart Phone/
Wireless
Antena3dbi
HotspotNO
Wi-FiWi-Fi(IEEE802.11b/g/n)
WIFI RangeNo obstacles 300m Max.
AI Function
Intelligent AnalysisHumanoid Detetion
Camera Features
Day/NightColor/ B&W (IR-CUT )
Image ConfigSaturation/Brightness/Contrast /Sharpness, Mirror,  White Balance, FLK(Flicker Control)
Corridor Pattern/
ROI/
Defog  Mode/
BLCYES
HDR/
WDRYES
Motion DetectionSupport
Privacy  Masking3 Rectangular Zone
Recording ModeNVR
Language/
Interface
Audio/
Alarm/
SD Card Slot/
RS485/
General
HousingMetal , IP66
Anti-cut BracketYES
IR Cut FilterYES
Operation Temperature-10 ~ +50 RH95% Max
Storage Temperature-20 ~ +60 RH95% Max
Power SourceDC12V±10%, 500mA
Dimension186(W) x 75(H) x 71(D)mm
Weight750g
ModelNVRM4364KTW
System
Main ProcessorARM Cortex A7 Quad-core Processor
Operating SystemEmbedded LINUX
Video
Input4CH (2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc)
Output1 VGA, 1 HD
Audio
Input/
OutputBuilt In Speaker
Audio Bit Rate64kbps
Audio Compression standardG711u, G711a, G726
Alarm
Sensor InputNO
OutputNO
Motion Detection4 Channel, MD Zones: 396 (22 × 18)
Trigger EventsRecording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output
AI Function
Face Comparison1 channel video stream face Comparison(1 face databases with 10 face images)
Display
MonitorSupport 12 Inch Monitor built in
Resolution1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Display Split4CHxD1/4CHx1080P@15fps/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP
Digital ZoomYES
OSDCamera Title, Time, Recording, Motion Detection, Alarm
Recording
Video CompressionH.264/H.265/H.264+/H.265+
Resolution5MP(2592×1944),4MP(2688×1520),3MP(2048×1536),1080P(1920×1080),
960P(1280x960),720P(1280×720),D1 (720×576/720×480)
Record RatePAL : 5MP@4×25fp,4MP@4x25fp,3MP@4×25fp,1080P@4×25fp, 960P@4×25fp,720P@4×25fp, D1@4×25fp
NTSC: 5MP@4×30fp,4MP@4×30fp,3MP@4×30fp,1080P@4×30fp, 960P@4×30fp, 720P@4×30fp, D1@4×30fp
Record ModeManual\Timer\Motion Detection
Playback & Backup
Local Sync Playback1CH 5MP@30fps, 1CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@20fps, 4CH 960P@30fps, 4CH 720P@30fps
Decode Capability4CH 1080P@20fps
Remote Sync PlaybackYES
Search ModeALL, Channel, Manual, Time, Date, Motion Detection
Playback FunctionsPlay, Pause, Stop,  Fast Play, Digital Zoom
Backup ModeNetwork/USB(With usb hub)
Network
Interface1 RJ45 10M/100M Adaptive Ethernet Interface
Incoming Bandwidth60MB
Network FunctionsTCP/CP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP, p2p
Onvif VersionSupport Onvif 2.4
Web BrowserIE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
CMS SoftwareSupport  Windows 7/ Windows 8/Windows 10
Cloud Support(P2P)Yes
Smart PhoneiPhone, iPad, Android, Android Pad
POE/
WIFISupport, WIFI Range: No Obstacles 300m Max.
Storage
Interface Type1 SATA Hard Disk Interface (2.5"SATA)
CapacityUp to 8TB capacity
eSATA/
General
LanguageTraditional Chinese, Simplified Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian,
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek,  Vietnamese
USB Interface1 USB 2.0 Interfaces
RS485/
Power SupplyDC12V/2A
Working Environment-10~55/10~90%
Dimension(W×D×H)287(L)*142(W)*252(H)mm
Weight1032g
