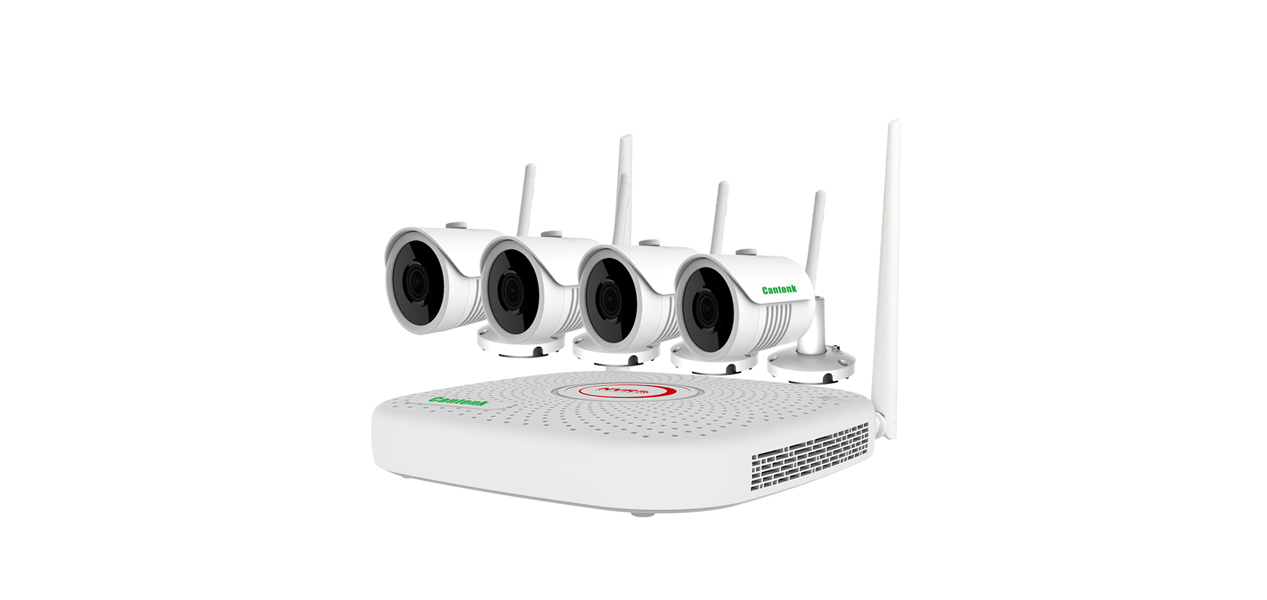

WIFIPGEB4214FK800
  • Specification
  • Drawing
  • Download
  • Feedback
Model NO.WIFIPGEB4214FK800
Package
NVR1x NVRPGE4214KTW
Camera4 x IPR25FK800W
WIFI RangeNo Obstacles 300m Max
Cable1 x 1m Net Cable
Mouse1xUSB 2.0 Mouse
Adaptor1xDC 12V 2A for WIFI NVR, 4xDC 12V 0.5A for WIFI IP Camera
Weight5.3kg/SET
Camera ModelIPR25FK800W
Camera
Image Sensor1/2.5"  High-resolution CMOS Sensor
Resolution8MP
Effective Pixels2608(H)*1952(V)
Compression H.264/H.265
TV SystemPAL/NTSC
Electronic Shutter TimeAuto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
S/N Ratio≥52dB
Scanning SystemProgressive
Video OutputWireless network
Reset ButtonYes
LENS Type
Focus Length3.6mm
Focus ControlFixed
Lens TypeFixed
Pixels5M Pixels
Night Vision
Infrared LED42µ x 2PCS
Infrared Distance25M
IR StatusAuto Control
IR Power OnAuto Control
Network
Ethernet/
ProtocolTCP/IP,ICMP,RTP,RTSP,RTCP
ONVIF/
P2P/
POE/
Main Stream 13072*2592@1-15fps(default resolution:3072*2592/frame rate:15fps/bit rate:2.3Mbps)
Main Stream 22592*1944@1-15fps(default resolution:2592*1944/frame rate:15fps/bit rate:1.8Mbps)
Main Stream 3/
Sub Stream 11280*720@1-15fps(default frame rate:15fps/bit rate:1Mbps)
Sub Stream 2/
Sub Stream 3/
Tri Stream/
IE Brower /
Smart Phone/
Wireless
Antena3dbi
HotspotNO
Wi-FiWi-Fi(IEEE802.11b/g/n)
WIFI RangeNo obstacles 300m Max.
Camera Features
Day/NightColor/ B&W (IR-CUT )
Image ConfigSaturation/Brightness/Contrast /Sharpness, Mirror,  White Balance, FLK(Flicker Control)
Corridor Pattern/
ROI/
Defog  ModeYES
BLCYES
HDR/
WDRYES
Motion DetectionSupport
Privacy  Masking3 Rectangular Zone
Recording ModeNVR
Language/
Interface
Audio/
Alarm/
SD Card Slot/
RS485/
General
HousingMetal , IP67
Anti-cut BracketYES
IR Cut FilterYES
Operation Temperature-10℃ ~ +50℃ RH95% Max
Storage Temperature-20℃ ~ +60℃ RH95% Max
Power SourceDC12V±10%, 500mA
Dimension186(W) x 75(H) x 71(D)mm
Weight750g
ModelNVRPGE421W
System
Main ProcessorARM Cortex A7 Quad-core Processor
Operating SystemEmbedded LINUX
Video
Input4CH (3840x2160,2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc)
Output1 VGA, 1 HD
Audio
Input/
Output1*3.5mm audio interface
Audio Bit Rate64kbps
Audio Compression standardG711u, G711a
Alarm
Sensor InputNO
OutputNO
Motion Detection4 Channel, MD Zones: 396 (22 × 18)
Trigger EventsRecording, Email, FTP, Snapshot, Buzzer and Screen Tips
Display
HD1Resolution: 4K(3840x2160)/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HD2/
VGAResolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Display Split4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4K
Digital ZoomYES
OSDCamera Title, Time, Recording, Motion Detection, Alarm
Recording
Video CompressionH.264/H.265/H.264+/H.265+
Resolution4K(3840x2160),25MP(2592×1944),4MP(2688×1520),3MP(2048×1536),
1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480)
Record RatePAL :4K@4x25fps,5MP@9×25fp,4MP@4x25fp,3MP@4×25fp,1080P@4×25fp, 960P@4×25fp,720P@4×25fp, D1@4×25fp
NTSC: 4K@4x30fps,5MP@4×30fp,4MP@4×30fp,3MP@4×30fp,1080P@4×30fp, 960P@4×30fp, 720P@4×30fp, D1@4×30fp
Record ModeManual\Timer\Motion Detection
Playback & Backup
Local Sync Playback1CH 4K@30fps,1CH 5MP@30fps, 1CH 4MP@30fps, 2CH 3M@30fps,
4CH 1080P@20fps, 4CH 960P@30fps, 4CH 720P@30fps
Decode Capability4CH 1080P@30fps
Remote Sync PlaybackYES
Search ModeALL, Channel, Manual, Time, Date, Motion Detection,Event Alarm
Playback FunctionsPlay, Pause, Stop, Rewind, Fast play, Slow Play, Full Screen, Frame Play ,Frame Rewind, Digital Zoom
Backup ModeNetwork/USB(With usb hub)
Network
Interface1 RJ45 10M/100M Adaptive Ethernet Interface
Incoming Bandwidth80M
Network FunctionsTCP/CP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP, p2p
Onvif VersionSupport Onvif 2.4
Web BrowserIE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
CMS SoftwareSupport  Windows 7/ Windows 8/Windows 10
Cloud Support(P2P)Yes
Smart PhoneiPhone, iPad, Android, Android Pad
POE/
WIFISupport, WIFI Range: No Obstacles 300m Max.
Storage
Interface Type1 SATA Hard Disk Interface (2.5"/3.5" SATA)
CapacityUp to 8TB capacity
eSATA/
General
LanguageTraditional Chinese, Simplified Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian,
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek,  Vietnamese,Japanese
USB Interface2 USB 2.0 Interfaces
RS485/
Power SupplyDC12V/2A
Working Environment-10~55℃/10~90%
Dimension(W×D×H)219*217*40(mm)
Weight2.0KG (without HDD)
