| Model NO. | KBTA90HTC2005XESL | |
| Video Output Mode | AHD/TVI/CVI: 2M@30fps/25fps | |
| Camera | ||
| Image Sensor | 1/2.8" SONY Starvis Back-illuminated CMOS Sensor | |
| Image Resolution | 2M:1920*1080 | |
| TV System | PAL/NTSC | |
| Electronic Shutter | Auto | |
| Minimun Illumination | 0.005Lux | |
| Scanning System | Progressive Scan | |
| Lens | ||
| Focus Length | 2.8-12mm Motor Zoom | |
| Focus Control | Auto | |
| Lens Type | Auto | |
| Night Vision | ||
| IR Cut Filter | YES | |
| Infrared LED | 42µ x 6PCS | |
| Infrared Distance | 60M | |
| IR Status | AGC Auto Control | |
| Camera Features | ||
| Starlight | YES | |
| Day/Night | YES | |
| OSD Menu Language | YES | |
| White Balance | AUTO / MANUAL | |
| Gain Control | AUTO | |
| Noise Reduction | 3DNR | |
| WDR | YES | |
| UTC | YES | |
| General | ||
| Housing | IP67 | |
| Bracket | YES | |
| Operation Temperature | -10℃ ~ +60℃ RH95% Max | |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max | |
| Power Source | DC12V±10%, 900mA | |

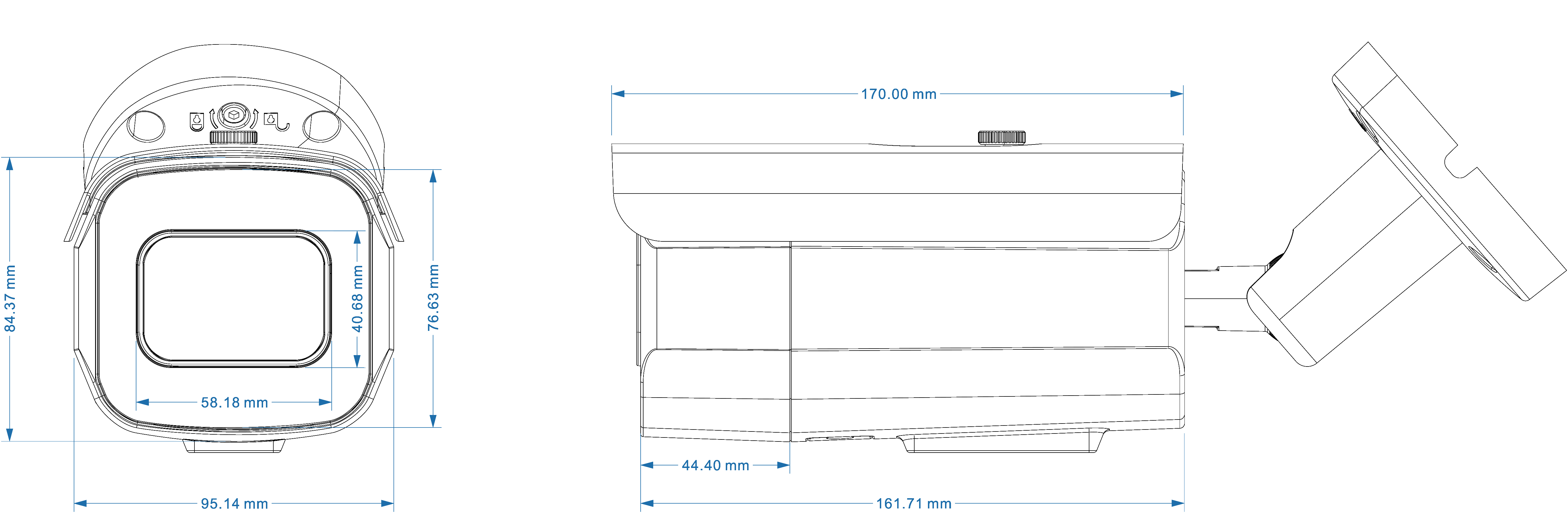

| Dimension | 170(W) x 110(H) x 101(D)mm | |
| Weight | 1.65kgs(With bracket) | |
