AHD SA40 5MP
  • Specification
  • Drawing
  • Download
  • Feedback
Model NO.KDSA40HTC500FEHKDSA40HTC500ESH
Video Output ModeAHD/TVI: 5M@20fps/12.5fps,
4M@30fps, 2M@30fps;
CVI: 4M@30fps, 2M@30fps
AHD/TVI: 5M@20fps/12.5fps, 4M@30fps,
2M@30fps; CVI: 4M@30fps, 2M@30fps
Camera
Image Sensor1/3" CMOS Sensor 1/2.8"  SONY Starvis Back-
illuminated CMOS sensor
Image Resolution5M:2592*1944 4M:2560*1440
2M:1920*1080
5M:2592*1944 4M:2560*1440
2M:1920*1080
TV SystemPAL/NTSCPAL/NTSC
Electronic ShutterAutoAuto
Minimun Illumination0.01Lux0.005Lux
Scanning SystemProgressive  ScanProgressive  Scan
Lens
Focus LengthBoard Lens 3.6mmBoard Lens 3.6mm
Focus ControlFixedFixed
Lens TypeFixedFixed
Night Vision
IR Cut FilterYESYES
Infrared LED42µ x 4PCS42µ x 4PCS
Infrared Distance40M40M
IR StatusAGC Auto ControlAGC Auto Control
Camera Features
Starlight/YES
Day/Night  YESYES
OSD Menu YESYES
WDR DWDRYES
UTC YESYES
Noise Reduction DNRAI-DNR
White Balance AUTO / MANUALAUTO / MANUAL
Gain Control AUTOAUTO
General
HousingIP67IP67
BracketNONO
Operation Temperature-10℃ ~ +60℃ RH95% Max-10℃ ~ +60℃ RH95% Max
Storage Temperature-20℃ ~ +60℃ RH95% Max-20℃ ~ +60℃ RH95% Max
Power SourceDC12V±10%,750mADC12V±10%,750mA

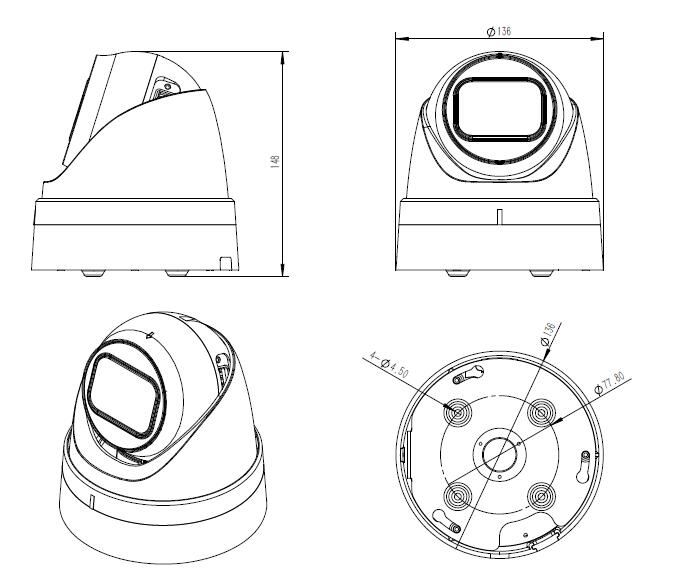

Dimensionφ136 x 148(H)mmφ136 x 148(H)mm
Weight1.7Kgs1.7Kgs
