| Model NO. | KBC1HTC200ESP |
| Video Output Mode | AHD/TVI/CVI: 2M@30fps/25fps |
| Camera | |
| Image Sensor | 1/2.8" SONY Starvis Back-illuminated CMOS Sensor |
| Image Resolution | 2M:1920*1080 |
| TV System | PAL/NTSC |
| Electronic Shutter | Auto |
| Scanning System | Progressive Scan |
| Lens | |
| Focus Length | 2.8-12mm Manual Zoom Lens |
| Focus Control | Manual |
| Lens Type | Manual |
| Night Vision | |
| IR Cut Filter | YES |
| Infrared LED | / |
| Infrared Distance | / |
| IR Status | AGC auto control |
| Camera Features | |
| Starlight | YES |
| Day/Night | YES |
| OSD Menu | YES |
| WDR | YES |
| UTC | YES |
| Noise Reduction | 3DNR |
| Coaxial Audio | / |
| White Balance | AUTO |
| Gain Control | AUTO |
| General | |
| Housing | / |
| Bracket | NO |
| Operation Temperature | -10℃ ~ +60℃ RH95% Max |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max |
| Power Source | DC12V±10%,150mA |

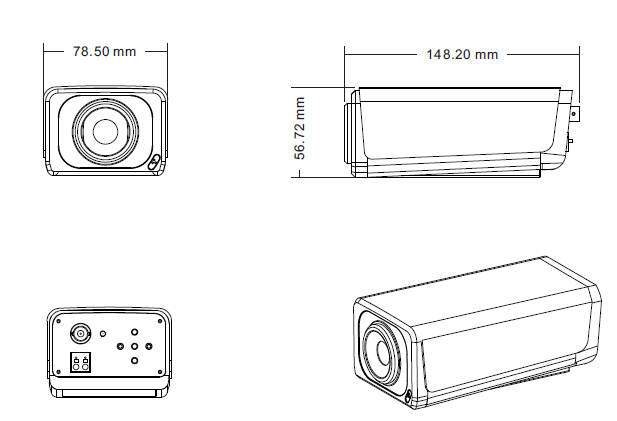

| Dimension | 148(W) x 79(H) x 57(D)mm |
| Weight | 585g |
