| Model NO. | KBC1HD400ESL | |
| Video Output Mode | ||
| Camera | ||
| Image Sensor | 1/2.8" SONY Starvis Back-illuminated CMOS sensor | |
| Image Resolution | 8M:3840*2160 5M:2592*1944 4M:2560*1440 2M:1920*1080 | |
| TV System | PAL/NTSC | |
| Electronic Shutter | Auto | |
| Scanning System | Progressive Scan | |
| Lens | ||
| Focus Length | 2.8-12mm Manual Zoom Lens | |
| Focus Control | Manual | |
| Lens Type | Manual | |
| Night Vision | ||
| IR Cut Filter | YES | |
| Infrared LED | / | |
| Infrared Distance | / | |
| IR Status | AGC auto control | |
| Camera Features | ||
| Starlight | / | |
| Day/Night | YES | |
| OSD Menu | YES | |
| WDR | YES | |
| UTC | YES | |
| Noise Reduction | 3DNR | |
| Coaxial Audio | / | |
| White Balance | AUTO | |
| Gain Control | AUTO | |
| General | ||
| Housing | / | |
| Bracket | NO | |
| Operation Temperature | -10℃ ~ +60℃ RH95% Max | |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max | |
| Power Source | DC12V±10%,150mA | |

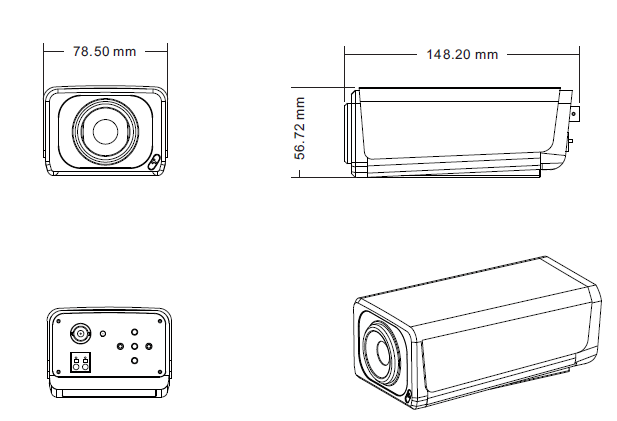

| Dimension | 148(W) x 79(H) x 57(D)mm | |
| Weight | 585g | |
