IPTA30MS800
  • Specification

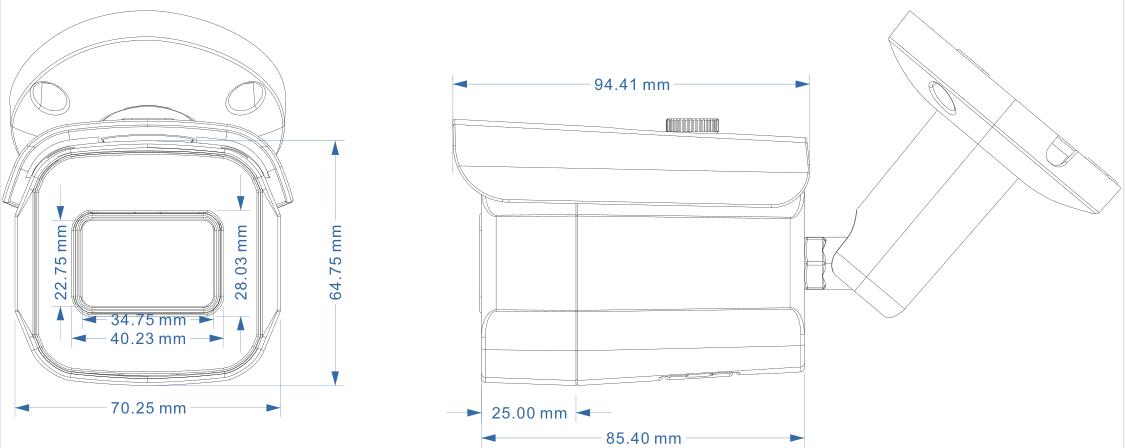

  • Drawing
  • Download
  • Feedback
Model NO.IPTA30MS800
Camera
Image Sensor1/2.7" Progressive Scan CMOS
Resolution8MP
Effective Pixels3872(H)*2180(V)
Compression H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG
TV SystemPAL/NTSC
Electronic Shutter TimeAuto: PAL 1/25-1/10000Sec; NTSC 1/30-1/10000Sec
Minimun Illumination0.01Lux
S/N Ratio≥52dB
Scanning SystemProgressive
Video OutputNetwork
Reset ButtonOptional
Lens
Focus Length3.6mm
Focus ControlFixed
Lens TypeFixed
Pixels8MP
Night Vision
Infrared LED42µ x 2PCS
Infrared Distance 25±5M
IR StatusAuto Control
IR Power OnManual & Timed mode
Network
EthernetRJ-45 (10/100Base-T)
Wireless/
ProtocolTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP,  RTCP ,PPPoE, NTP,  UPnP,  SMTP, UDP
ONVIFSupport ONVIF 2.4(Profile S/T/G)
P2PYES, Support QR Code
POEInternal, Support IEEE 802.3af
Video Delay 0.3S (Within the Lan)
Main Stream 13840*2160@20fps
Main Stream 22592*1536@20fps
2560*1440@20fps
Main Stream 3
1920*1080@20fps
1280*720@20fps
Sub Stream 1720*480@20fps
Sub Stream 2/
Sub Stream 3/
Tri Stream1280*720@20fps
720*480@20fps
IE Brower IE8-11, Google Chrome, Firefox , Mac Safari
Smart PhoneiPhone, iPad, Android, Android Pad
AI Function
Intelligent Analysis/
Camera Features
Day/NightColor/ B&W (IR-CUT )
Image ConfigSaturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance,
FLK(Flicker Control), Video Tampering, HLC, Distortion
Full Color/
Corridor PatternSupport
Defog  ModeSupport
ROISupport
BLCSupport
WDRHDR: 120dB
Motion DetectionSupport
Privacy  Masking3 Rectangular Zone
Recording ModeNVR/CMS/Web
LanguageChinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French,
Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands,Czech, Vietnamese
Interface
AudioOptional Audio In/Out
AlarmOptional  1 Channel Input/Ouput
SD Card SlotOptional External, Support Max 512GB
RS485/
General
HousingIP67
Anti-cut BracketYES
IR Cut FilterYES
Operation Temperature-20℃ ~ +60℃ RH95% Max
Storage Temperature-20℃ ~ +60℃ RH95% Max
Power SourceDC12V±10%,700mA
Dimension170(W)x75(H)x77(D)mm
Weight770g
Model NO.IPTA30MS800
Camera
Image Sensor1/2.7" Progressive Scan CMOS
Resolution8MP
Effective Pixels3872(H)*2180(V)
Compression H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG
TV SystemPAL/NTSC
Electronic Shutter TimeAuto: PAL 1/25-1/10000Sec; NTSC 1/30-1/10000Sec
Minimun Illumination0.01Lux
S/N Ratio≥52dB
Scanning SystemProgressive
Video OutputNetwork
Reset ButtonOptional
Lens
Focus Length3.6mm
Focus ControlFixed
Lens TypeFixed
Pixels8MP
Night Vision
Infrared LED42µ x 2PCS
Infrared Distance 25±5M
IR StatusAuto Control
IR Power OnManual & Timed mode
Network
EthernetRJ-45 (10/100Base-T)
Wireless/
ProtocolTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP,  RTCP ,PPPoE, NTP,  UPnP,  SMTP, UDP
ONVIFSupport ONVIF 2.4(Profile S/T/G)
P2PYES, Support QR Code
POEInternal, Support IEEE 802.3af
Video Delay 0.3S (Within the Lan)
Main Stream 13840*2160@20fps
Main Stream 22592*1536@20fps
2560*1440@20fps
Main Stream 3
1920*1080@20fps
1280*720@20fps
Sub Stream 1720*480@20fps
Sub Stream 2/
Sub Stream 3/
Tri Stream1280*720@20fps
720*480@20fps
IE Brower IE8-11, Google Chrome, Firefox , Mac Safari
Smart PhoneiPhone, iPad, Android, Android Pad
AI Function
Intelligent Analysis/
Camera Features
