| Model NO. | KLBAHTC5005XESH |
| Video Output Mode | AHD/TVI: 5M@20fps/12.5fps, 4M@30fps, 2M@30fps; CVI: 4M@30fps, 2M@30fps |
| Camera | |
| Image Sensor | 1/2.8" SONY Starvis Back-illuminated CMOS Sensor |
| Image Resolution | 5M:2592*1944 4M:2560*1440 2M:1920*1080 |
| TV System | PAL/NTSC |
| Electronic Shutter | Auto |
| Minimun Illumination | 0.005Lux |
| Scanning System | Progressive Scan |
| Lens | |
| Focus Length | Board Lens 8mm |
| Focus Control | Fixed |
| Lens Type | Fixed |
| Night Vision | |
| IR Cut Filter | YES |
| Infrared LED | 42µ x 6PCS |
| Infrared Distance | 60M |
| IR Status | AGC Auto Control |
| Camera Features | |
| Starlight | YES |
| Day/Night | YES |
| OSD Menu | YES |
| WDR | YES |
| UTC | YES |
| Noise Reduction | AI-DNR |
| White Balance | AUTO / MANUAL |
| Gain Control | AUTO |
| General | |
| Housing | IP67 |
| Bracket | YES |
| Operation Temperature | -10℃ ~ +60℃ RH95% Max |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max |
| Power Source | DC12V±10%,900mA |

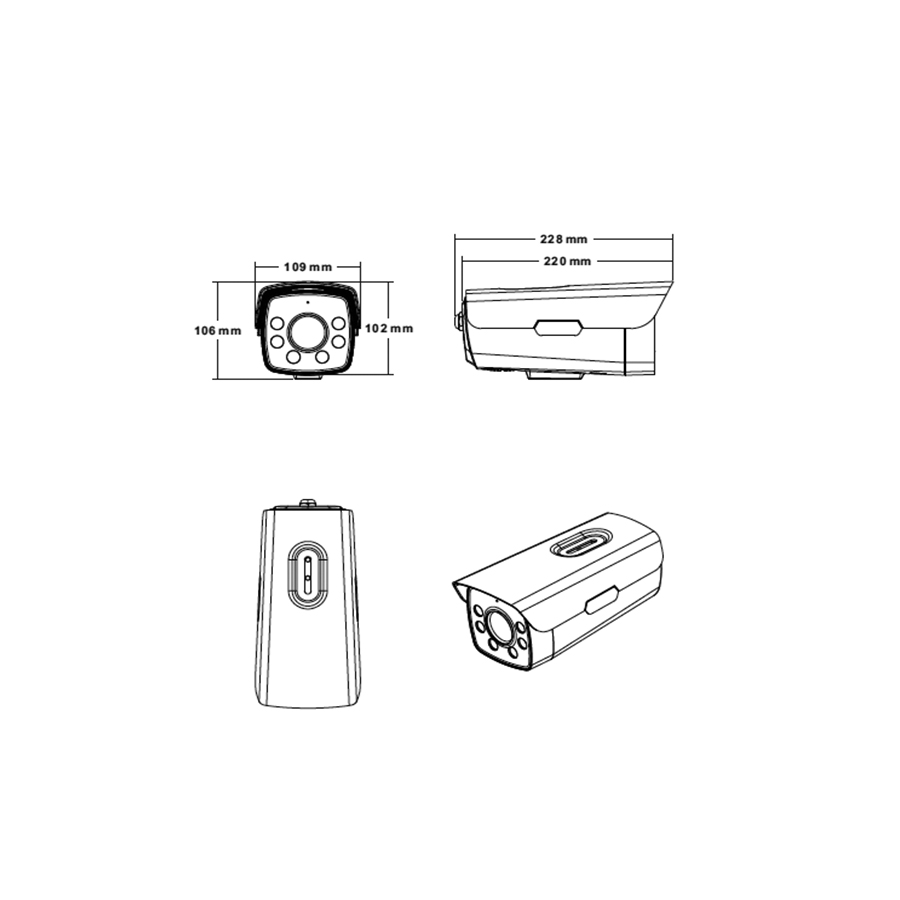

| Dimension | 313(W) x 109(H) x 106(D)mm |
| Weight | 1.85Kgs (With bracket) |
