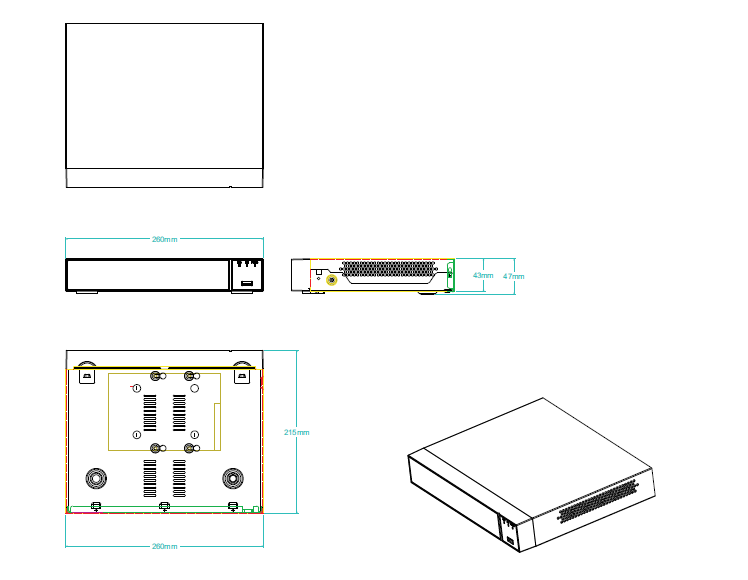

  • Drawing
  • Download
  • Feedback
ModelNVRC921
System
Main ProcessorARM Cortex A7 Processor
Operating SystemEmbedded LINUX
Video
Input9CH(3840*2160,2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc)
Output1 VGA, 1 HD
Audio
Input1 Port RCA
Output1 Port RCA(Linear, 1kΩ)
Audio Bit Rate64kbps
Audio Compression standardG711u, G711a, ADPCM_DVI4
Intercomsupport (two-way)
Alarm
Sensor InputNO
OutputNO
Motion Detection9 Channel, MD Zones: 396 (22 × 18)
Trigger EventsRecording, Email, FTP, Snapshot, Buzzer and Screen Tips
Display
HD Output11024x768/60Hz,1280x720/60Hz,1280x1024/60Hz,1920x1080/60Hz,4K(3840x2160)/30Hz
HD Output2/
VGAResolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Display Split9CHxD1/8CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k
Digital ZoomYES
OSDCamera Title, Time, Recording, Motion Detection, Event Alarm
Recording
Video CompressionH265/H264/H265+/H264+
Resolution4k(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),
1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480)
Record RatePAL :4K@8x25fps,5MP@9×25fp,4MP@9x25fp,3MP@9×25fp,1080P@9×25fp, 960P@9×25fp,720P@9×25fp, D1@9×25fp
 NTSC: 4K@8x30fps,5MP@9×30fp,4MP@9×30fp,3MP@9×30fp,1080P@9×30fp, 960P@9×30fp, 720P@9×30fp, D1@9×30fp
Record ModeManual\Timer\Motion Detection\Smart Event
Playback & Backup
Local Sync Playback1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps,
 4CH 960P@30fps, 4CH 720P@30fps,9CH D1@30fps
Decode Capability4CH 1080P(1920x1080)@30fps
Remote Sync PlaybackYES
Search ModeALL, Channel, Manual, Time, Date, Motion Detection,Event Alarm,Tag search
Playback FunctionsPlay, Pause, Stop, Rewind, Fast play, Slow Play, Full Screen, Frame Play ,Frame Rewind, Digital Zoom,tag,clip
Backup ModeUSB Device/Network
Network
Interface 1 x RJ45 (10M/100M Adaptive Ethernet Interface)
Incoming Bandwidth 80MB
Network Functions  TCP/IP, HTTP,HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE
Onvif Versiononvif S,onvif T
Web BrowserEdge,IE8-11, Google Chrome , Firefox ,Safari
CMS SoftwareSupport  Windows 7/ Windows 8/Windows 10/MAC OS
Cloud SupportYes
Smart PhoneiPhone, iPad, Android, Android Pad
POE  /
WIFI  UI/
Storage
Interface Type1 SATA Hard Disk Interface (3.5" SATA)
CapacityUp to 8TB capacity
eSATA/
General
LanguageTraditional Chinese, Simplified Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian,
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek,  Vietnamese,Janpanese
USB Interface2 USB 2.0 Interfaces
RS485/
Power SupplyDC12V 2A
Working Environment-10~55℃/10~90%
Dimension(W×D×H) 260*215*43(mm)
Weight2kg(without HDD)
