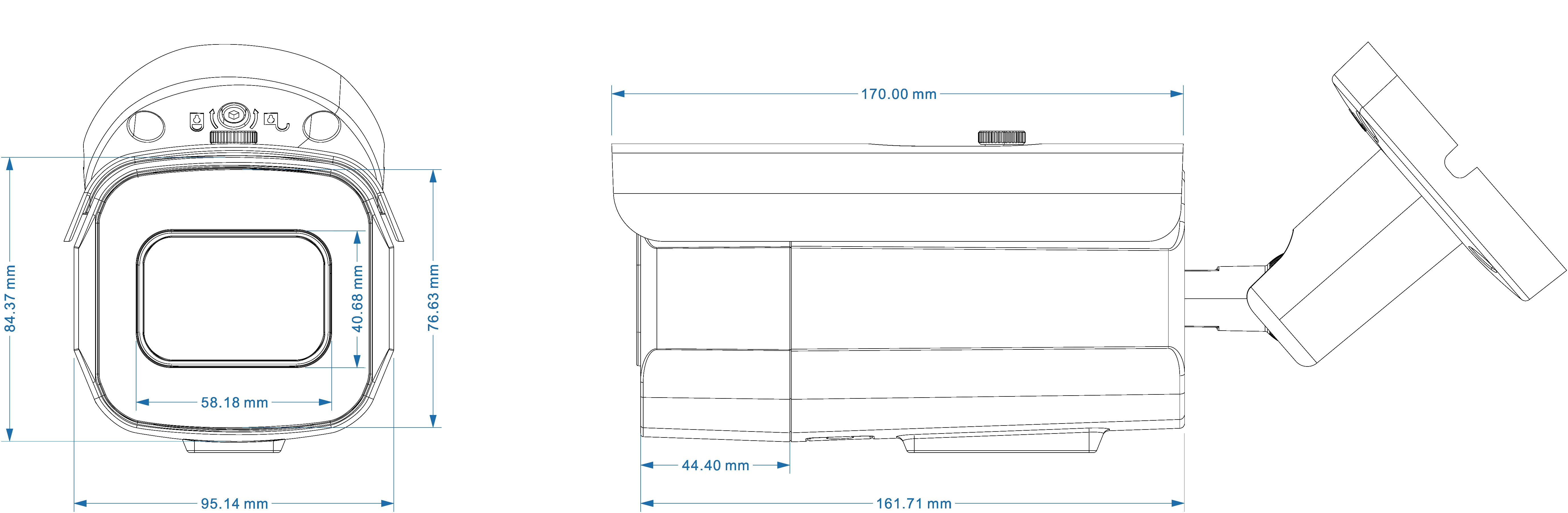

  • Drawing
  • Download
  • Feedback
Model NO.IPTA60GC200
Camera
Image Sensor1/2.9" Progressive Scan CMOS Sensor
Resolution2MP 1080P
Effective Pixels1920(H)*1080(V)
Compression H.264/H.265/JPEG/AVI/MJPEG
TV SystemPAL/NTSC
Electronic Shutter TimeAuto: PAL 1/25-1/10000Sec; NTSC 1/30-1/10000Sec
Minimun Illumination0.01Lux
S/N Ratio60dB
Scanning SystemProgressive
Video OutputNetwork
Reset ButtonOptional
Lens
Focus Length6mm
Focus ControlFixed
Lens TypeFixed
Pixels2MP
Night Vision
Infrared LED42µ x 4PCS
Infrared Distance40M
IR StatusAuto Control
IR Power OnSmart, Manual & Timed mode
Network
EthernetRJ-45 (10/100Base-T)
Wireless/
ProtocolTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP,  RTCP, NTP,  SMTP, UDP
ONVIFSupport ONVIF 19.12(Profile S/T/G)
P2PYES
POEOptional, Support IEEE 802.3af
Video Delay 0.3S (Within the Lan)
Main Stream 11920*1080@30fps
Main Stream 21280*720@30fps
Main Stream 3/
Sub Stream 1720*480@30fps
Sub Stream 2352*288@30fps
Sub Stream 3/
Tri Stream/
IE Brower IE8-11, Google Chrome, Firefox
Smart PhoneiPhone, Android
AI Function
Intelligent AnalysisIntrusion Detetion,motion detection based on human detection
Camera Features
Day/NightColor/ B&W (IR-CUT )
Image ConfigSaturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control)
Full Color/
Corridor Pattern/
Defog  ModeSupport
ROI/
BLCSupport
WDRDWDR: 50dB
Motion DetectionSupport(support enable the detection based on human movement only)
Privacy  Masking3 Rectangular Zone
Recording ModeNVR/CMS/Web
LanguageChinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French,
Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands,Czech, Vietnamese
Interface
AudioOptional Audio In/Out/Optional Audio In
Alarm/
SD Card Slot/
RS485/
General
HousingIP67
Anti-cut BracketYES
IR Cut FilterYES
Operation Temperature-20℃ ~ +60℃ RH95% Max
Storage Temperature-20℃ ~ +60℃ RH95% Max
Power SourceDC12V±10%,950mA
Dimension170(W) x 110(H) x 101(D)mm
Weight1.65Kgs
