| Model | PTDK10XHTC200NS |
| Camera | |
| Image Sensor | 1/2.9" SONY CMOS Sensor |
| lmagine Resolution | 2MP |
| TV System | PAL/NTSC |
| S/N Ratio | >50db |
| PTZ | |
| Horizontal Rotation Speed | 30°/S |
| Horizontal Rotation Range | 0°~200° |
| Tilt Rotation Speed | 25°/S |
| Tilt Rotation Range | -45°~40° |
| Preset Points | 220 |
| Guard Tours | 3 groups |
| Guard Points | Max.16 points |
| Lens | |
| Focus Length | 5.1mm-51mm |
| Focus Control | 10X Optical Zoom |
| Night Vision | |
| Infrared LED | 4PCS Array IR LEDS + 2PCS Laser Lamp |
| IR Range | 100m |
| Day-night mode | AUTO |
| Communication | |
| UTC | Support |
| RS485 | Support |
| Interface | |
| Audio | / |
| Alarm | / |
| General | |
| Weatherproof | IP66 |
| Operating Temperature | Indoor: 0°~ +40° Outdoor: -40°~ +60° |
| Operating Humidity | ≤90% Non Condensing |
| Power | DC12V/2A |
| Lightning Protection | Transient voltage 6000V |

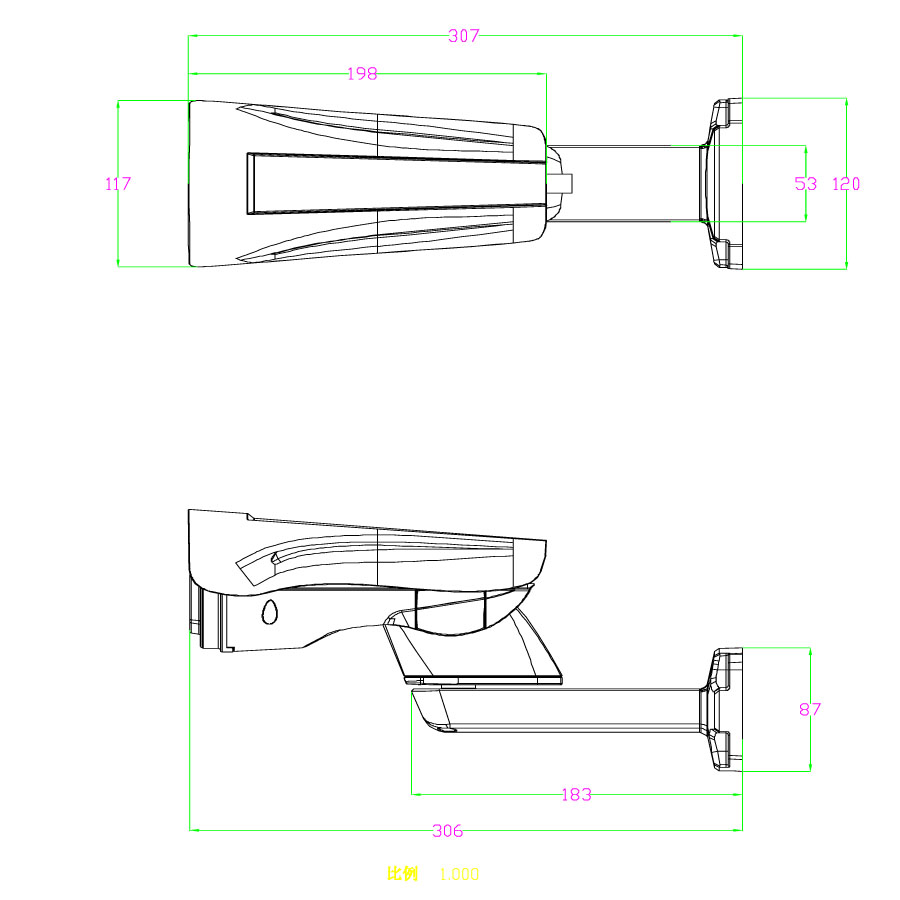

| Size of Package (LxWxH) | 39.6x19.6x16(cm) |
| Weight | 3Kgs |
