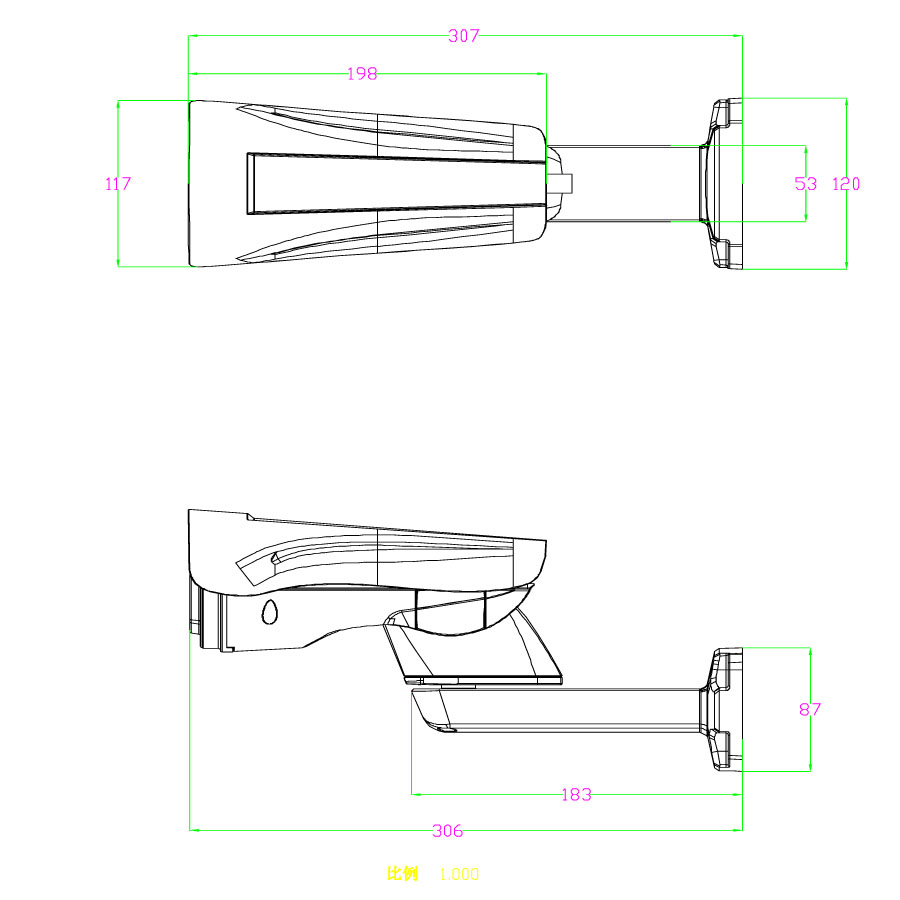

  • Drawing
  • Download
  • Feedback
ModelPTDK4XGC200
Camera
Image Sensor1/2.9" Progressive Scan CMOS Sensor
Horizontal Resolution2MP
CompressionH.264/H.265
S/N Ratio60db
PTZ
Horizontal Rotation Speed 30°/S
Horizontal Rotation Range 0°~180°
Tilt Rotation Speed 25°/S
Tilt Rotation Range -45°~40°
Preset Points 255
Guard Tours8 groups
Guard PointsMax.20 points
Lens
Focus Length3.35-10.05mm F1.7-F3.0
Focus Control4X Optical Zoom
Night Vision
Infrared LED¢35x6PCS
IR Range30m
Day-night modeAUTO
Network
Network protocolTCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, NTP,SMTP
ONVIFSupport PROFILE S,PROFILE G,PROFILE T)
Network interfaceBuilt-in RJ45 network interface,support 10M/100M IP DATA
Main Stream11920*1080@30fps
Main Stream21280*720@30fps
Main Stream3/
Main Stream4/
Main Stream5/
Main Stream6/
Sub Stream1720*480@30fps
Sub Stream2352*288@30fps
Sub Stream3/
Sub Stream4/
Interface
AudioOptional
Alarm/
SD Card Slot/
POEOptional
General
WeatherproofIP66
Operating TemperatureIndoor: 0°~ +40°   Outdoor:  -40°~ +60°
Operating Humidity ≤90% Non Condensing
PowerDC12V/3A
Lightning ProtectionTransient voltage 6000V
Dimension39.6x19.6x16(cm)
Weight1.35Kgs
