XVR4D8WA
  • Specification
  • Drawing
  • Download
  • Feedback
Model NO.XVR4D8WA

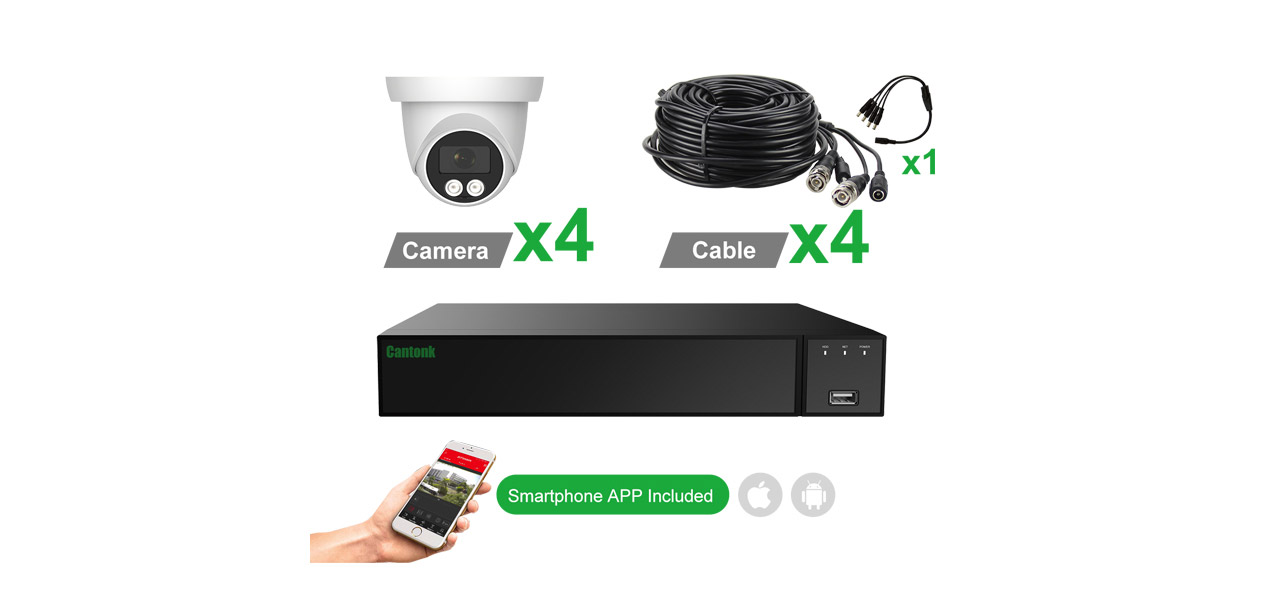

Package
XVR1x  XVRHCT430
Camera4 x KSCBTVI800FKEW
Cable4x 18m BNC+DC Cable, 1x (1 to 4CH power cable splitter)
Mouse1xUSB 2.0 Mouse
Hard Disk No
Adaptor2 x DC12V2A
Weight7.9kg/SET
Camera ModelKSCBTVI800FKEW
Image Sensor1/2.5" CMOS sensor
Image Resolution8M:3840*2160   5M:2592*1944   4M:2560*1440  2M:1920*1080
TV SystemPAL/NTSC
Electronic ShutterAUTO
Scanning SystemProgressive  Scan
Lens
Focus Length3.6mm
Focus ControlFixed
Lens TypeFixed
Night Vision
IR Cut FilterYES
Infrared LEDNO,Suport Warm white (4000K)
Infrared Distance25M
IR StatusAGC Auto Control
Camera Features
Starlight/
Day/Night  Color
OSD Menu YES
WDR DWDR
UTC YES
Noise Reduction 3DNR
White Balance AUTO / MANUAL
Gain Control AUTO
General
HousingPlastic
BracketNO
Operation Temperature-10℃ ~ +60℃ RH95% Max
Storage Temperature-20℃ ~ +60℃ RH95% Max
Power SourceDC12V±10%, 500mA
Dimension¢108x85(H)mm
Weight400g
Model XVRHCT430
System
Main ProcessorMC6630
Operating SystemEmbedded LINUX
Video
InputNormal Mode:
Default: 4*(AHD/TVI/CVI:8M;AHD/TVI:5M,AHD/TVI/CVI:4MP/3MP/2MP/720P/960H)+2*IPC(Max5MP)
Analog+Network: 2*(AHD/TVI/CVI:8M;AHD/TVI:5M,AHD/TVI/CVI:4MP/3MP/2MP/720P/960H)+7*IPC(MAX 5MP)
Lite Mode:
 Default: 4*(TVI/AHD/CVI: 5M@12fps;  AHD/TVI/CVI: 4M@15fps;
AHD/TVI/CVI: 3M@18fps; AHD/TVI/CVI: 1080P/720P;  Analog: 960H)+2*network(MAX 5MP)
Analog+Network: 2*Analog(TVI/AHD/CVI: 5M@12fps;  AHD/TVI/CVI: 4M@15fps;
AHD/TVI/CVI: 3M@18fps;  AHD/TVI/CVI: 1080P/720P;  Analog: 960H)+7*network(MAX 5MP)
Network: 16*5MP/4MP/3MP/1080P/960P/720P(Total incoming bandwidth ≤48M)
Input4CH BNC
Signal TypeAnalog/AHD/CVI/TVI 2.0/TVI 3.0/Network
Output1HD,1 VGA, 1 CVBS
Audio
Input2 Channel RCA , 4channel AOC
Two-way AudioNO
Output1 Channel, RCA
Alarm
Sensor Input4 CH
Output1 CH
Motion Detection4 Channel(max 16 Channel in pure network mode)
Trigger EventsRecording,  Email, Screen tips, Buzzer, Push notifications(motion detection)
Email AlarmSend Image to The Designated E-mail
PTZ

InterfaceRS485
ProtocolPelco-D, Pelco-P
Baud Rate110~921600
Address0~255
Display
VGAResolution: 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz
HD OutputResolution: 3840×2160/30Hz, 2560x1440/30Hz, 1920 × 1080P/60Hz,
1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz
Display Split16 Channel/9 Channel/4 Channel / 1Channel
Privacy Masking3 Rectangular Zones (Each camera)
OSDCamera title, Time, Video loss, Alarm, Motion detection, Recording
Recording
Video CompressionH.265/H.265+/H.264/H.264+
Audio CompressionG.711u/G.711a
Resolution5MP(2592×1944),8MP_LITE(1920×2160),5MP_HALF(1296×1944),4MP(2560×1440),4MP_HALF(1280×1440),
3MP(2048×1536),3MP_Lite(1024×1536),1080P(1920×1080),720P(1280×720),960H(P:960×576/N:960×480)
Video QualityLowest/Low/Ordinary/Good/Better/Best
Record RateNormal Mode:
 Analog:  PAL:8MP_LITE(1920×2160 4*8fps), 5MP(2592×1944 4*6fps),
5MP_HALF(1296×1944 4*10fps),4MP(2560×1440 4*8fps),4MP_HALF(1280×1440 4*15fps),
3MP(2048×1536 4*9fps),3MP_Lite(1024×1536 4*18fps), 1080P(1920x1080 4*15fps),
720P(1280×720 4*25fps), 960H(960×576 4*25fps)
NTSC:8MP_LITE(1920×2160 4*8fps), 5MP(2592×1944 4*6fps),
5MP_HALF(1296×1944 4*10fps),4MP(2560×1440 4*8fps),4MP_HALF(1280×1440 4*15fps),
3MP(2048×1536 4*9fps),3MP_Lite(1024×1536 4*18fps), 1080P(1920x1080 4*15fps),
720P(1280×720 4*25fps), 960H(960×480 4*25fps)
Lite Mode:
PAL:5MP_Lite(1296×1944 4*10fps),4MP_Lite(1280×1440 4*15fps),
3MP_Lite(1024×1536 4*18fps),1080N(960x1080 4*25fps),
720P(1280×720 4*25fps), 960H(960×480 4*25fps)
NTSC: 5MP_Lite(1296×1944 4*10fps),4MP_Lite(1280×1440 4*15fps),
3MP_Lite(1024×1536 4*18fps),1080N(960x1080 4*25fps),
720P(1280×720 4*25fps), 960H(960×480 4*30fps)
Pure IP(H.265):
PAL: 5MP@8×25fps,4MP@12x25fps,3MP@12×25fps,
1080P@16×25fps,960P@16×25fps,720P@16×25fps,D1@16×25fps
NTSC: 5MP@8×30fps,4MP@12×30fps,3MP@12×30fps,
1080P@16×30fps, 960P@16×30fps, 720P@16×30fps, D1@16×30fps
Record ModeManual\Timer\Motion Detection\Alarm Input\Motion and Alarm
Playback & Backup
Decode Capability2CH 1080P@30fps
Sync PlaybackNormal Mode:
Pure Analog: 4CH 5M@6fps, 4CH 8M_Lite@8fps, 4CH 4M@8fps, 4CH 3M@9fps, 3CH 1080p@15fps
Mix Mode:  1CH 5M@30fps, 1CH 4M@30fps, 1CH 3M@30fps, 2CH 1080P@30fps
Pure IPC:  1CH 5MP@30fps, 1CH 4MP@30fps, 1CH 3M@30fps,  2CH 1080P@30fps
Lite Mode:
Pure Analog:4CH 5M_LITE@10fps,CH 4M_LITE@15fps,3M_LITE@18fps,4CH 1080N@25fps
Mix Mode:  1CH 5M@30fps, 1CH 4M@30fps, 1CH 3M@30fps, 2CH 1080P@30fps
Pure IPC:  1CH 5MP@30fps, 1CH 4MP@30fps, 1CH 3M@30fps,  2CH 1080P@30fps
Remote Playback4 Channel / 1Channel
Search ModeALL, Channel, Manual, Time, Date, Motion Detection
Playback FunctionsPlay, Pause, Stop, Fast play, Slow play, Rewind, Single frame forward/back, Digital Zoom, Full screen
Smart Phone Playback4 Channel
Backup ModeUSB Device(with fomat FAT 32 )/Network/FTP
Network
Interface1 RJ45 10M/100M Adaptive Ethernet Interface
Network FunctionsTCP/IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP
DDNSDyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE, HDPROVN
Web BrowserEdge,IE8-11, Google Chrome , Firefox ,Safari
CMS SoftwareSupport  Windows 7/ Windows 8/Windows 10
Extra StreamD1/CIF(1~30fps)
Smart PhoneiPhone, ipad,  Android ,Android pad
Hard Disk Driver
Interface Type1 SATA Interface
Capacity1 SATA Hard Disk (2.5"/3.5" SATA, Up to 8TB)
General
LanguageSimplified Chinese,Traditional Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Japanese,
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek, Vietnamese,
UTC ControlYES
USB Interface2 USB 2.0 Interfaces
Power consumptionDC 12V/2A  ≤6W (Without Hard Disk)
Working Environment-10~55℃/10~90%
Dimension (W×D×H)260*215*43(mm)
Weight2kg (Without HDD)
