PTDK10XHS500
  • Specification

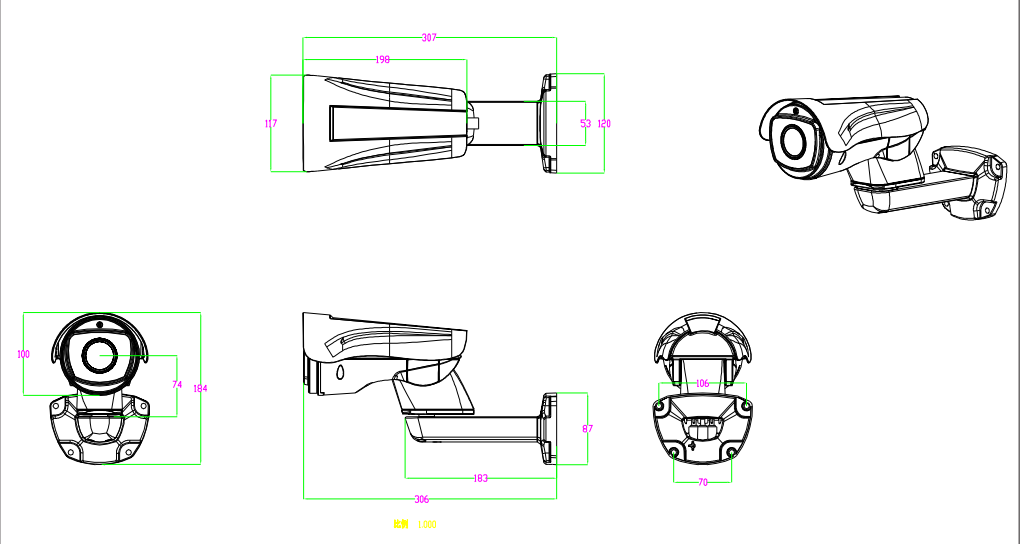

  • Drawing
  • Download
  • Feedback
ModelPTDK10XHS500
Camera
Image Sensor1/2.8" SONY Starvis Back-illuminated CMOS Sensor
Horizontal Resolution5MP
CompressionH.264/H.265
S/N Ratio>50db
PTZ
Horizontal Rotation Speed 30°/S
Horizontal Rotation Range 0°~180°
Tilt Rotation Speed 25°/S
Tilt Rotation Range -45°~40°
Preset Points 220
Guard Tours3 groups
Guard PointsMax.16 points
Lens
Focus Length5.1mm-51mm
Focus Control10X Optical Zoom
Night Vision
Infrared LED4PCS Array IR LEDS + 2PCS Laser Lamp
IR Range100m
Day-night modeAUTO
Network
Network protocolTCP/IP, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, UDP, IGMP,P2P
ONVIFSupport
Network interfaceBuilt-in RJ45 network interface,support 10M/100M IP DATA
Main Stream12560*1920@20fps
Main Stream22560*1440@25fps
Main Stream32304*1296@25fps
Main Stream41920*1080@25fps
Main Stream51280*720@25fps
Main Stream6640*512@25fps
Sub Stream1800*448@25fps
Sub Stream2704*576@25fps
Sub Stream3640*360@25fps
Sub Stream4352*288@25fps
Interface
AudioOptional
Alarm/
SD Card Slot/
POEOptional
General
WeatherproofIP66
Operating TemperatureIndoor: 0°~ +40°   Outdoor:  -40°~ +60°
Operating Humidity ≤90% Non Condensing
PowerDC12V/3A
Lightning ProtectionTransient voltage 6000V
Dimension39.6x19.6x16(cm)
Weight3Kgs
