Model NO. | IPLBAGL500WH | |
Camera | ||
Image Sensor | 1/2.8" SONY Starvis Back-illuminated CMOS sensor | |
Resolution | 5MP | |
Effective Pixels | 2616 (H)*1964 (V) | |
Compression | H.264/H.264+/H.265/H.265+/JPEG/AVI | |
TV System | PAL/NTSC | |
Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec; NTSC 1/30-1/10000Sec | |
Minimun Illumination | 0.01Lux | |
S/N Ratio | ≥52dB | |
Scanning System | Progressive | |
Video Output | Network | |
Reset Button | Optional | |
Lens | ||
Focus Length | 3.6mm | |
Focus Control | Fixed | |
Lens Type | Fixed | |
Pixels | 5MP | |
Night Vision | ||
Infrared LED | No,Support Warm light LED double3015U×2, up to 25M | |
Infrared Distance | ||
IR Status | Auto Control | |
IR Power On | Smart, Manual & Timed mode | |
Network | ||
Ethernet | RJ-45 (10/100Base-T) | |
Wireless | / | |
Protocol | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP ,PPPoE, NTP, , SMTP, UDP | |
ONVIF | Support ONVIF 19.12(Profile S/T/G) | |
P2P | YES | |
POE | Internal, Support IEEE 802.3af | |
Video Delay | 0.3S (Within the Lan) | |
Main Stream 1 | 2592*1944@20fp | |
Main Stream 2 | 2560*1440@25fp | |
Main Stream 3 | 1920*1080@30fps 1280*720@30fps | |
Sub Stream 1 | 720*480@20fps 720*480@30fps | |
Sub Stream 2 | 352*288@25fps 352*288@30fps | |
Sub Stream 3 | / | |
Tri Stream | / | |
IE Brower | IE8-11, Google Chrome, Firefox | |
Smart Phone | iPhone, Android | |
AI Function | ||
Intelligent Analysis | Intrusion Detetion,motion detection based on human detection | |
Camera Features | ||
Day/Night | Color | |
Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control), Video Tampering, Distortion | |
Full Color | Support | |
Corridor Pattern | / | |
Defog Mode | Support | |
ROI | Support | |
BLC | Support | |
WDR | DWDR: 50dB | |
Motion Detection | Support(support enable the detection based on human movement only) | |
Privacy Masking | 3 Rectangular Zone | |
Recording Mode | NVR/CMS/Web | |
Language | Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands,Czech, Vietnamese | |
Interface | ||
Audio | Optional 1 Built-in MIC/Optional Audio IN/Optional Audio IN/OUT | |
Alarm | / | |
SD Card Slot | Optional External, Support Max 512GB | |
RS485 | / | |
General | ||
Housing | IP67 | |
Anti-cut Bracket | YES | |
IR Cut Filter | YES | |
Operation Temperature | -20℃ ~ +60℃ RH95% Max | |
Storage Temperature | -20℃ ~ +60℃ RH95% Max | |
Power Source | DC12V±10%,1500mA | |

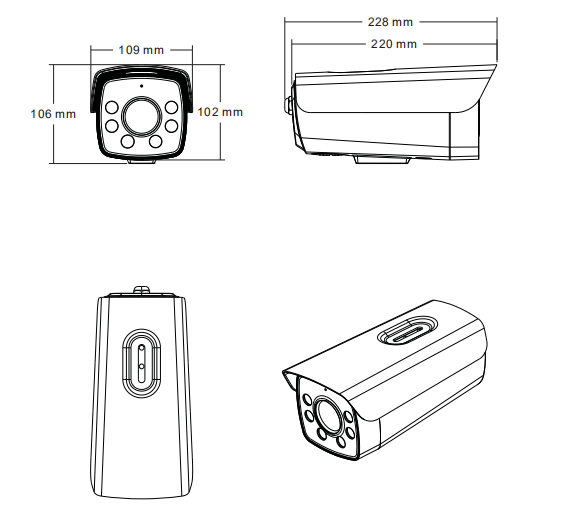

Dimension | 220(W) x 109(H) x 106(D)mm | |
Weight | 2.15Kgs |
