IPBQ60GL500
  • Specification
  • Drawing
  • Download
  • Feedback
Model NO.IPBQ60GL500
Camera
Image Sensor1/2.8" SONY Starvis Back-illuminated CMOS sensor
Resolution5MP
Effective Pixels2616 (H)*1964 (V)
Compression H.264/H.264+/H.265/H.265+/JPEG/AVI
TV SystemPAL/NTSC
Electronic Shutter TimeAuto: PAL 1/25-1/10000Sec; NTSC 1/30-1/10000Sec
Minimun Illumination0.01Lux
S/N Ratio≥52dB
Scanning SystemProgressive
Video OutputNetwork
Reset ButtonOptional
Lens
Focus Length2.8-12mm Manual Zoom Lens
Focus ControlManual
Lens TypeManual
Pixels5MP
Night Vision
Infrared LED42µ x 4PCS
Infrared Distance40M
IR StatusAuto Control
IR Power OnSmart, Manual & Timed mode
Network
EthernetRJ-45 (10/100Base-T)
Wireless/
ProtocolTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP,  RTCP ,PPPoE, NTP,  ,  SMTP, UDP
ONVIFSupport ONVIF 19.12(Profile S/T/G)
P2PYES
POEInternal, Support IEEE 802.3af
Video Delay 0.3S (Within the Lan)
Main Stream 12592*1944@20fp
Main Stream 22560*1440@25fp
Main Stream 31920*1080@30fps
1280*720@30fps
Sub Stream 1720*480@20fps
720*480@30fps
Sub Stream 2352*288@25fps
352*288@30fps
Sub Stream 3/
Tri Stream/
IE Brower IE8-11, Google Chrome, Firefox
Smart PhoneiPhone, Android
AI Function
Intelligent AnalysisIntrusion Detetion,motion detection based on human detection
Camera Features
Day/NightColor/ B&W (IR-CUT )
Image ConfigSaturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control), Video Tampering, Distortion
Full Color/
Corridor Pattern/
Defog  ModeSupport
ROISupport
BLCSupport
WDRDWDR: 50dB
Motion DetectionSupport(support enable the detection based on human movement only)
Privacy  Masking3 Rectangular Zone
Recording ModeNVR/CMS/Web
LanguageChinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands,Czech, Vietnamese
Interface
AudioOptional Audio IN/Optional Audio IN/OUT
Alarm/
SD Card SlotOptional External, Support Max 512GB
RS485/
General
HousingIP67
Anti-cut BracketYES
IR Cut FilterYES
Operation Temperature-20℃ ~ +60℃ RH95% Max
Storage Temperature-20℃ ~ +60℃ RH95% Max
Power SourceDC12V±10%,950mA

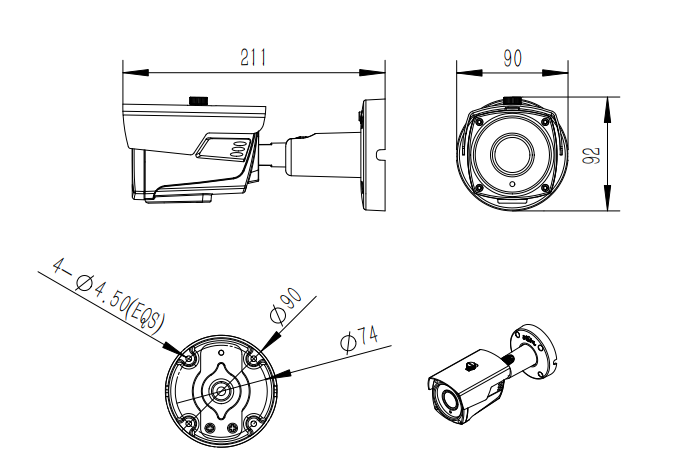

Dimension211(W) x 92(H) x 90(D)mm
Weight1.4Kg
