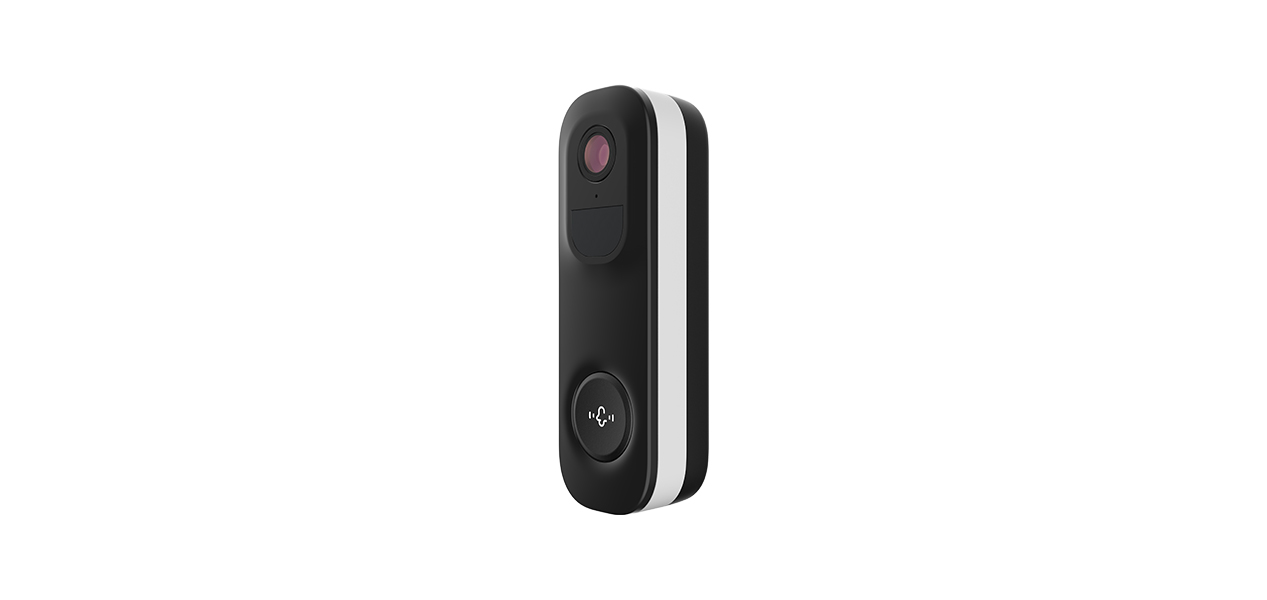

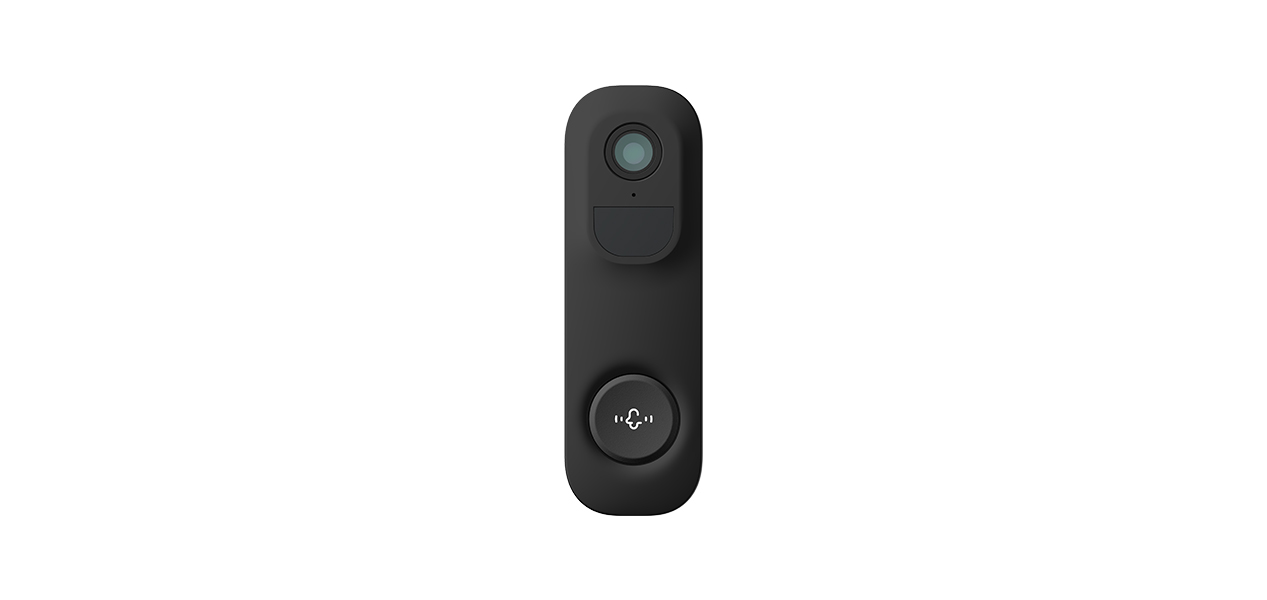

JBD301-A Door Bell
  • Specification
  • Drawing
  • Download
  • Feedback
Model NOJBD301-A Door Bell
CameraSensor1/2.8" CMOS
Focal Length2.8 mm
Optical Field of View160° diagonal, 114° horizontal, 82° vertical
Minimum Illumination0.01 lux
AudioInputBuilt-in microphone
OutputBuilt-in speaker
Two-way AudioFull duplex
Audio CompressingAAC
VideoVideo CompressingH.264, H.265
Lighting Frequency50 Hz, 60 Hz
Frame Rate15 fps
Maximum Resolution2048 × 1536
Light Source for Night VisionInfrared LED
NetworkWireless StandardWi-Fi: 2.4 GHz (IEEE 802.11 b/g/n)
FSK: 915 MHz, 868 MHz, 433 MHz
Protocols SupportedTCP/IP, UDP/IP, DHCP, RTMP, MUTP, FSK
IP Address TypeDynamic IP address
RecordingRecording MethodAlarm triggered recording, and manual recording
Video StorageCloud storage, local Micro SD card (up to 128 GB), and mobile phone memory
FunctionAI FunctionHuman detection, vehicle detection, pet detection, package detection, activitiy zone
Wake-up MethodPIR body induction wake-up, remote wake-up and button wake-up
Alarm NotificationAlarm push by mobile app, indicator light flashing and alarm sound warning
IndicatorRGBY four-color LED

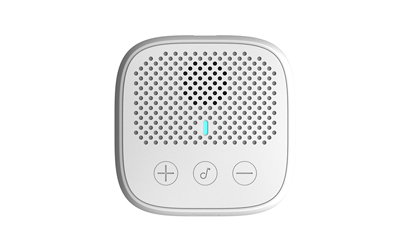

Mechanical chime and smart speaker compatibilityMechanical chime, Alexa and Google Assistant  supported
BatteryCapacity5200 mAh or 6700 mAh optional
Working Time5 months (recording 20 pieces of 10-second video per day)
Standby Time1 year
Charging VoltageDC: 5 V ±5%
AC: 8 V ~ 24 V 20 VA
Charging Time10 hours (DC)
ProtectionOver-charge, over-discharge, over-current, short circuit and charging protection at high and low temperature
Power ConsumptionStandby3 mW
Daytime Working1 W
Nighttime Working2.5 W
InterfacePowerMicro USB
StorageMicro SD card
KeyPower key, doorbell key and reset key

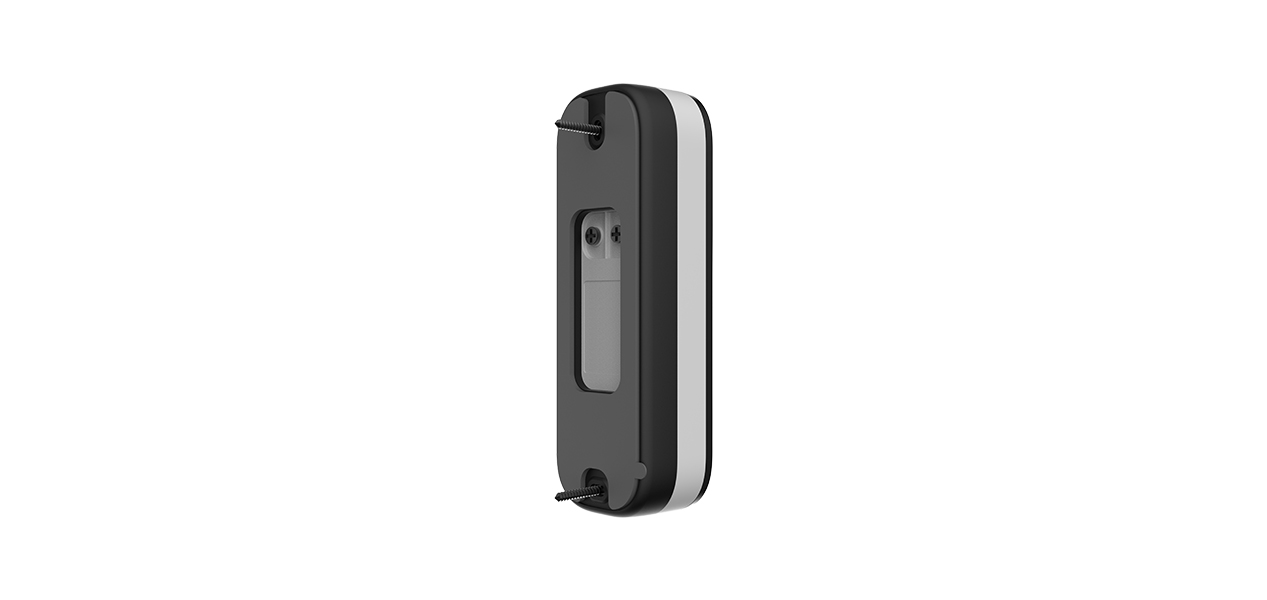

InstallationInstallation MethodBracket installation(3M glue or screws)
Bracket TypeStandard: flat bracket
Optional: left and right tilt brackets, up and down tilt brackets
Tamper-proofMechanical methodTools required for doorbell removal
Electronic methodAlarm sound warning and mobile phone notification in case of illegal doorbell removal (optional)
EnvironmentDustproof and WaterproofIP65
Operating Temperature-10 ℃ ~ 45 ℃
Storage Temperature-20 ℃ ~ 60 ℃
Prodoct DimensionDimension144 mm × 46 mm × 31 mm (without bracket)
CertificationCertificationCE, FCC, RoHS, WEEE, MSDS, UN38.3, UL62368
