AHD SA40 2MP
  • Specification

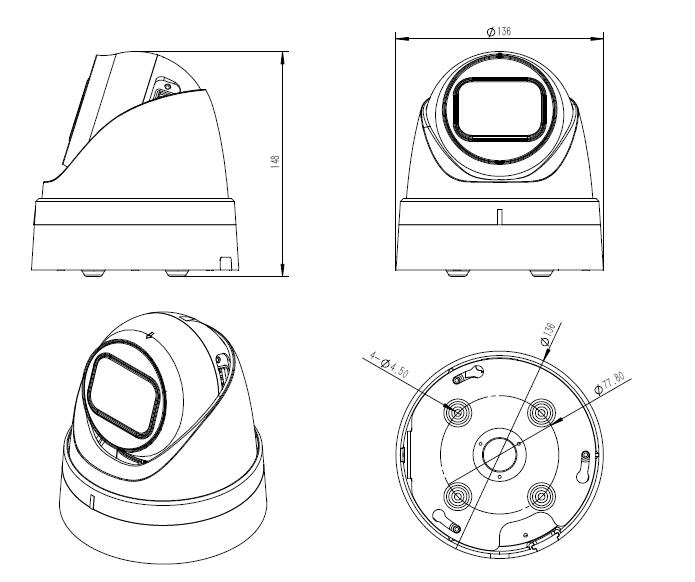

  • Drawing
  • Download
  • Feedback
Model NO.KDSA40HTC200F
Video Output ModeAHD/TVI/CVI: 2M@30fps/25fps
Camera
Image Sensor1/2.9" CMOS Sensor
Image Resolution2M:1920*1080
TV SystemPAL/NTSC
Electronic ShutterAuto
Scanning SystemProgressive  Scan
Lens
Focus LengthBoard Lens 3.6mm
Focus ControlFixed
Lens TypeFixed
Night Vision
IR Cut FilterYES
Infrared LED42µ x4PCS
Infrared Distance40M
IR StatusAGC auto control
Camera Features
Starlight/
Day/Night  YES/NO
OSD Menu Language YES
WDR DWDR
UTC YES
White Balance 3DNR
Noise Reduction AUTO / MANUAL
Gain Control AUTO
General
HousingIP67
BracketNO
Operation Temperature-10℃ ~ +60℃ RH95% Max
Storage Temperature-20℃ ~ +60℃ RH95% Max
Power SourceDC12V±10%,750mA
Dimensionφ136 x 148(H)mm
Weight1.7Kgs
