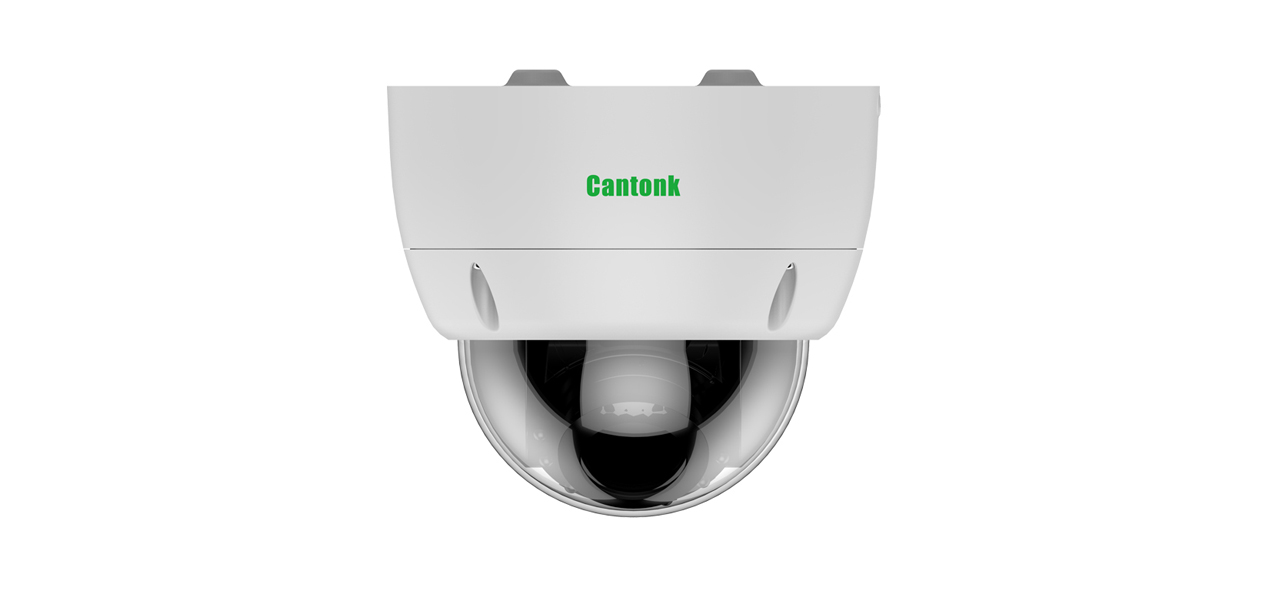

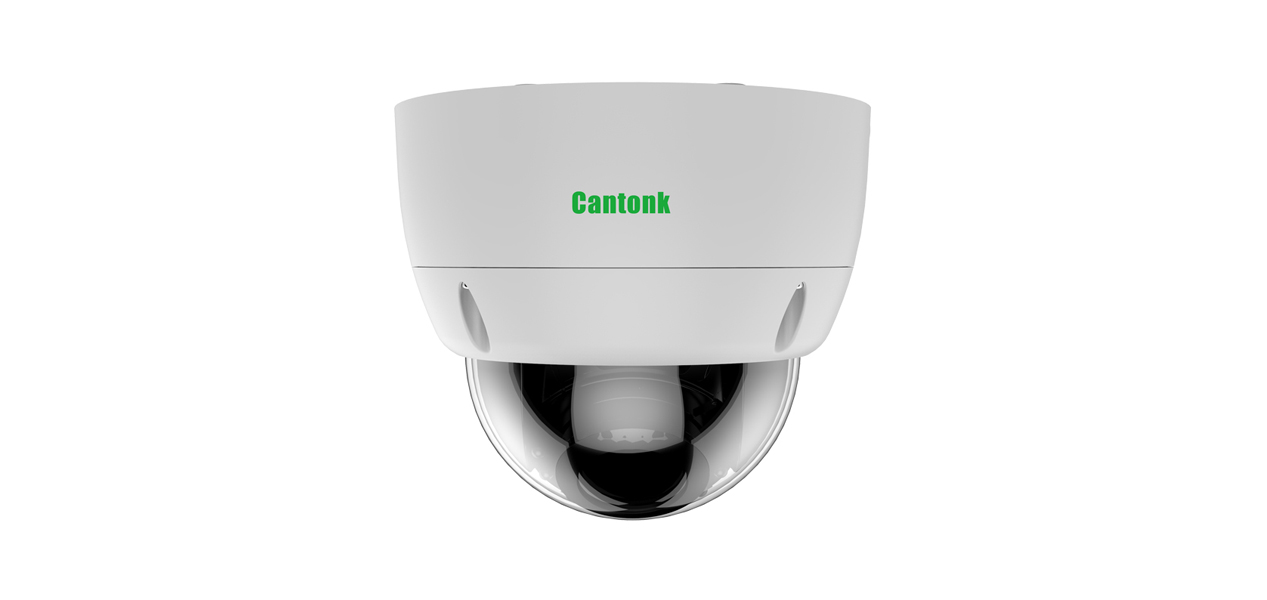

AHD LDA 2MP
  • Specification

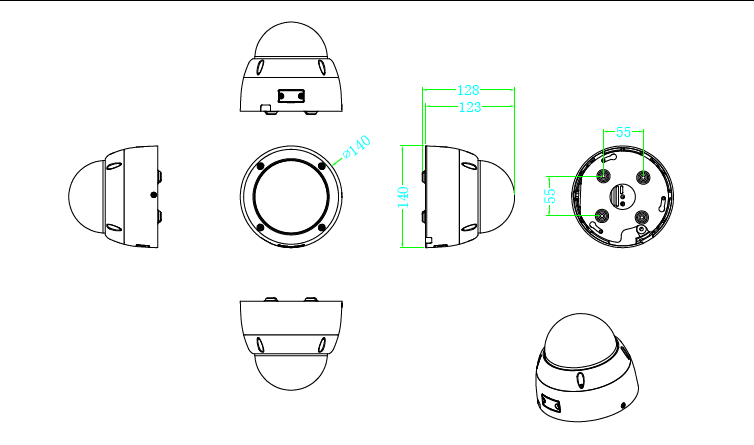

  • Drawing
  • Download
  • Feedback
Model NO.KLDAHTC200F
Video Output ModeAHD/TVI/CVI: 2M@30fps/25fps
Camera
Image Sensor1/3" CMOS Sensor
Image Resolution2M:1920*1080
TV SystemPAL/NTSC
Electronic ShutterAuto
Scanning SystemProgressive  Scan
Lens
Focus Length2.8-12mm Manual Zoom Lens
Focus ControlManual
Lens TypeManual
Night Vision
IR Cut FilterYES
Infrared LED42µ x4PCS
Infrared Distance30M
IR StatusAGC auto control
Camera Features
Starlight/
Day/Night  YES
OSD Menu Language YES
WDR DWDR
UTC YES
White Balance 3DNR
Noise Reduction AUTO / MANUAL
Gain Control AUTO
General
HousingIP67
BracketNO
Operation Temperature-10℃ ~ +60℃ RH95% Max
Storage Temperature-20℃ ~ +60℃ RH95% Max
Power SourceDC12V±10%,750mA
Dimensionφ159 x 132(H)mm
Weight1.4Kgs
