| Model NO. | KBR25HTC800FKP | KBR25HTC800ESL | KBR25HTC800ES | KBR25HTC800FKE | ||||
| Video Output Mode | AHD/TVI:8M@15fps, 5M@20fps/12.5fps, 4M/2M@30fps/25fps; CVI: 8M@15fps/12.5fps, 4M/2M@30fps/25fps | AHD: 8M@15fps, 5M@20fps/12.5fps, 4M/2M@30fps/25fps; CVI:8M@15fps/12.5fps, 4M/2M@30fps/25fps; TVI: 8M@15fps/12.5fps, 5M@20fps/12.5fps, 4M/2M@30fps/25fps | AHD/TVI/CVI: 8M@15fps/12.5fps, 4M/2M@30fps/25fps | AHD: 8M@15fps, 5M@20fps/12.5fps, 4M@30fps/25fps/15fps, 2M@30fps/25fps; TVI: 8M@15fps/12.5fps, 5M@20fps/12.5fps 4M@30fps/25fps/15fps, 2M@30fps/25fps; CVI: 8M@15fps/12.5fps, 5M@20fps/12.5fps 4M/2M@30fps/25fps | ||||
| Camera | ||||||||
| Image Sensor | 1/2.5" CMOS sensor | 1/2.8" SONY Starvis Back- illuminated CMOS sensor | 1/2.8'' SONY CMOS sensor | 1/2.5" CMOS sensor | ||||
| Image Resolution | 8M:3840*2160 5M:2592*1944 4M:2560*1440 2M:1920*1080 | 8M:3840*2160 5M:2592*1944 4M:2560*1440 2M:1920*1080 | 8M:3840*2160 4M:2560*1440 2M:1920*1080 | 8M:3840*2160 5M:2592*1944 4M:2560*1440 2M:1920*1080 | ||||
| TV System | PAL/NTSC | PAL/NTSC | PAL/NTSC | PAL/NTSC | ||||
| Electronic Shutter | Auto | Auto | Auto | Auto | ||||
| Scanning System | Progressive Scan | Progressive Scan | Progressive Scan | Progressive Scan | ||||
| Lens | ||||||||
| Focus Length | Board Lens 3.6mm | Board Lens 3.6mm | Board Lens 3.6mm | Board Lens 3.6mm | ||||
| Focus Control | Fixed | Fixed | Fixed | Fixed | ||||
| Lens Type | Fixed | Fixed | Fixed | Fixed | ||||
| Night Vision | ||||||||
| IR Cut Filter | YES | YES | YES | YES | ||||
| Infrared LED | 42µ x4PCS | 42µ x4PCS | 42µ x4PCS | 42µ x4PCS | ||||
| Infrared Distance | 40M | 40M | 40M | 40M | ||||
| IR Status | AGC Auto Control | AGC Auto Control | AGC Auto Control | AGC Auto Control | ||||
| Camera Features | ||||||||
| Starlight | / | / | / | / | ||||
| Day/Night | YES | YES | YES | YES | ||||
| OSD Menu Language | YES | YES | YES | YES | ||||
| WDR | DWDR | YES | YES | DWDR | ||||
| UTC | YES | YES | YES | YES | ||||
| Noise Reduction | 3DNR | 3DNR | 3DNR | DNR | ||||
| Coaxial Audio | / | / | / | YES(only TVI ) | ||||
| White Balance | AUTO / MANUAL | AUTO / MANUAL | AUTO / MANUAL | AUTO / MANUAL | ||||
| Gain Control | AUTO | AUTO | AUTO | AUTO | ||||
| General | ||||||||
| Housing | IP67 | IP67 | IP67 | IP67 | ||||
| Bracket | YES | YES | YES | YES | ||||
| Operation Temperature | -10℃ ~ +60℃ RH95% Max | -10℃ ~ +60℃ RH95% Max | -10℃ ~ +60℃ RH95% Max | -10℃ ~ +60℃ RH95% Max | ||||
| Storage Temperature | -20℃ ~ +60℃ RH95% Max | -20℃ ~ +60℃ RH95% Max | -20℃ ~ +60℃ RH95% Max | -20℃ ~ +60℃ RH95% Max | ||||
| Power Source | DC12V±10%,750mA | DC12V±10%,750mA | DC12V±10%,750mA | DC12V±10%,750mA | ||||

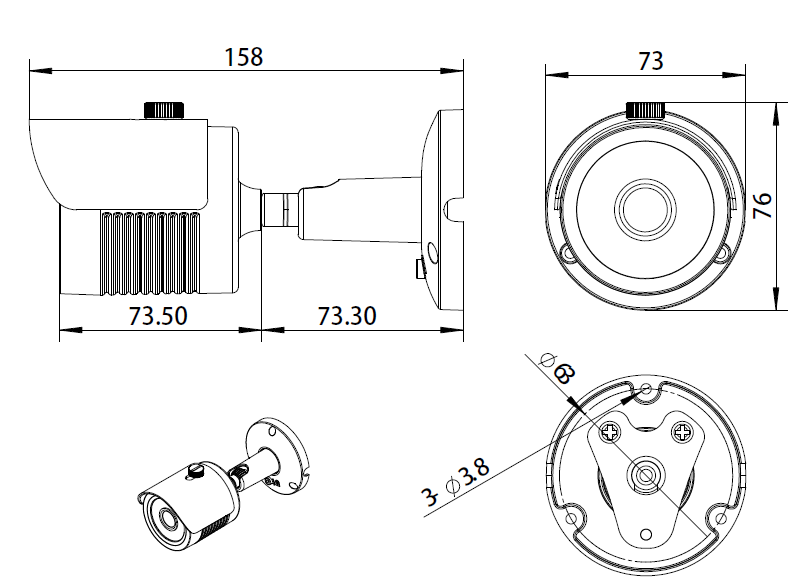

| Dimension | 157(W)x70(H)x66(D)mm | 157(W)x70(H)x66(D)mm | 157(W)x70(H)x66(D)mm | 157(W)x70(H)x66(D)mm | ||||
| Weight | 650g | 650g | 650g | 650g | ||||
