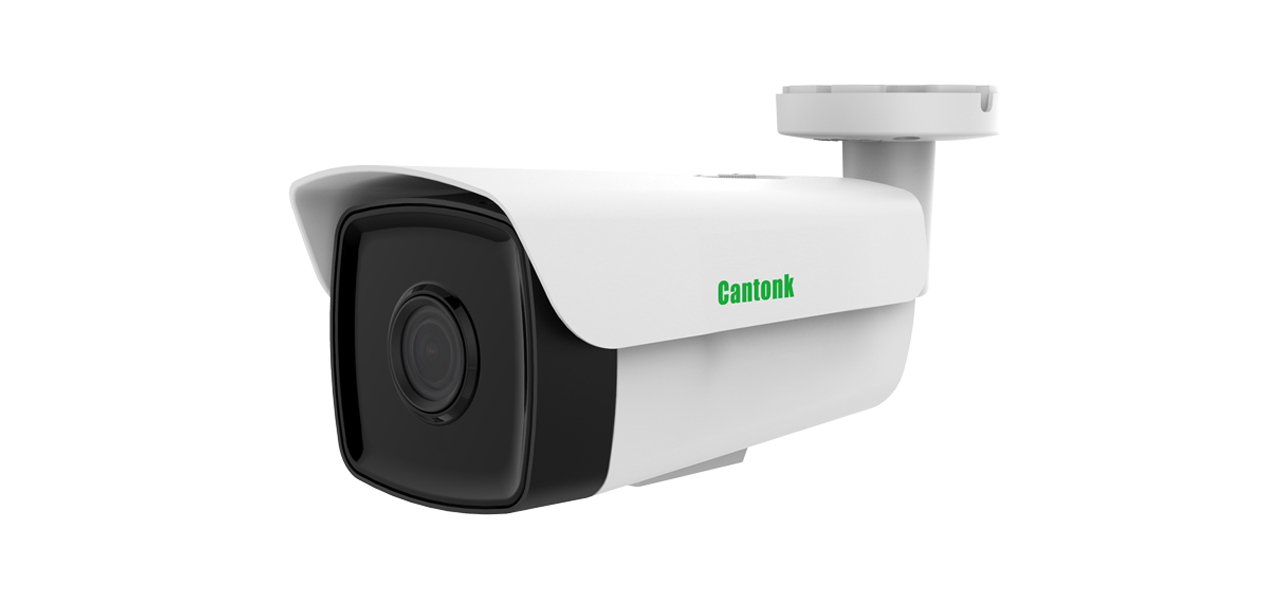

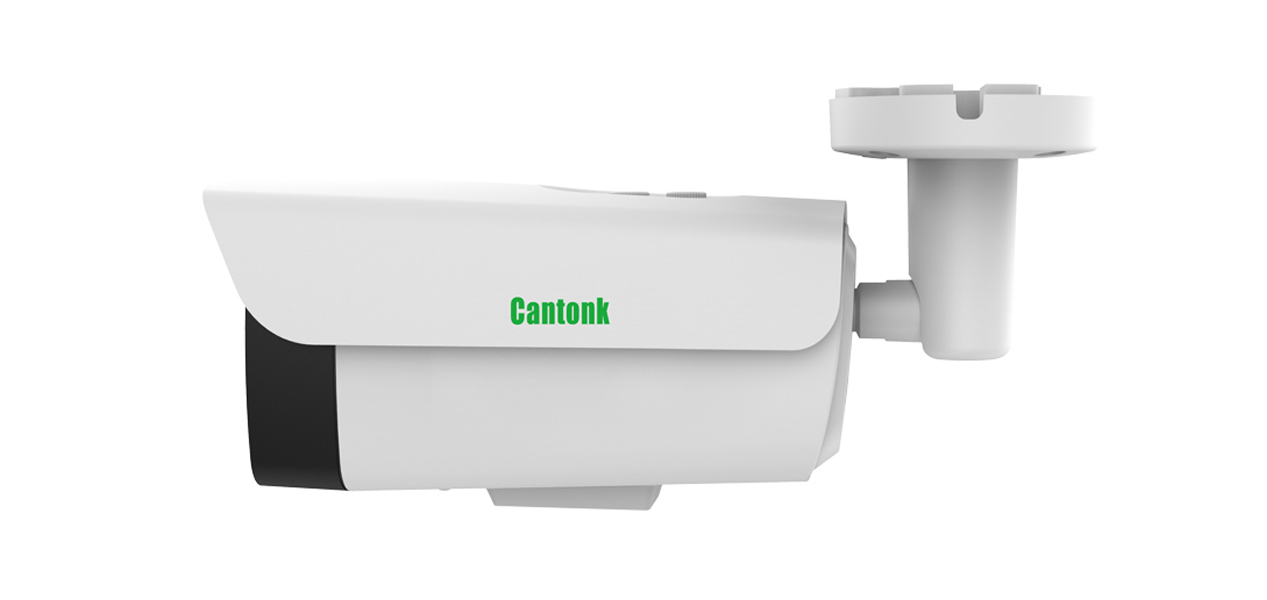

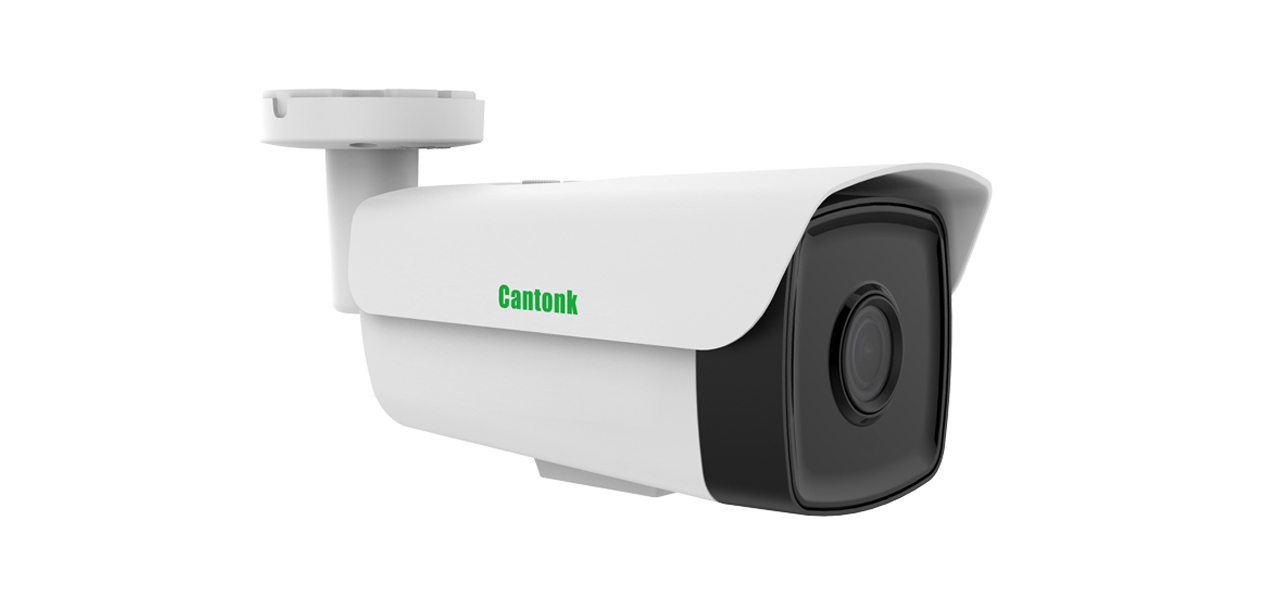

AHD BB60 8MP AF
  • Specification
  • Drawing
  • Download
  • Feedback


Model NO.KBBB60HTC800FKPKBBB60HTC800ESLKBBB60HTC800ESKBBB60HTC800FKE
Video Output ModeAHD/TVI:8M@15fps,
5M@20fps/12.5fps,
4M/2M@30fps/25fps;
CVI: 8M@15fps/12.5fps,
4M/2M@30fps/25fps
 AHD: 8M@15fps,
5M@20fps/12.5fps,
4M/2M@30fps/25fps;
CVI:8M@15fps/12.5fps,
4M/2M@30fps/25fps;
TVI: 8M@15fps/12.5fps,
5M@20fps/12.5fps,
4M/2M@30fps/25fps
AHD/TVI/CVI:
8M@15fps/12.5fps,
4M/2M@30fps/25fps
AHD: 8M@15fps, 5M@20fps/12.5fps,
4M@30fps/25fps/15fps, 2M@30fps/25fps;
TVI: 8M@15fps/12.5fps,
5M@20fps/12.5fps
 4M@30fps/25fps/15fps, 2M@30fps/25fps;
CVI: 8M@15fps/12.5fps,
5M@20fps/12.5fps
 4M/2M@30fps/25fps
Camera
Image Sensor1/2.5" CMOS sensor1/2.8" SONY Starvis Back-
illuminated CMOS sensor
1/2.8'' SONY CMOS sensor1/2.5" CMOS sensor
Image Resolution8M:3840*2160
5M:2592*1944
4M:2560*1440
2M:1920*1080
8M:3840*2160
5M:2592*1944
4M:2560*1440
2M:1920*1080
8M:3840*2160
4M:2560*1440
2M:1920*1080
8M:3840*2160
5M:2592*1944
4M:2560*1440
2M:1920*1080
TV SystemPAL/NTSCPAL/NTSCPAL/NTSCPAL/NTSC
Electronic ShutterAutoAutoAutoAuto
Scanning SystemProgressive  ScanProgressive  ScanProgressive  ScanProgressive  Scan
Lens
Focus LengthBoard Lens 6mmBoard Lens 6mmBoard Lens 3.6mmBoard Lens 3.6mm
Focus ControlFixedFixedFixedFixed
Lens TypeFixedFixedFixedFixed
Night Vision
IR Cut FilterYESYESYESYES
Infrared LED42µ x4PCS42µ x4PCS42µ x4PCS42µ x4PCS
Infrared Distance40M40M40M40M
IR StatusAGC Auto ControlAGC Auto ControlAGC Auto ControlAGC Auto Control
Camera Features
Starlight////
Day/Night  YESYESYESYES/NO
OSD Menu Language YESYESYESYES
WDR DWDR YESYESDWDR
UTC YESYESYESYES
Noise Reduction 3DNR3DNR3DNRDNR
Coaxial Audio///YES(only TVI )
White Balance AUTO / MANUALAUTO / MANUALAUTO / MANUALAUTO / MANUAL
Gain Control AUTOAUTOAUTOAUTO
General
HousingIP67IP67IP67IP67
BracketYESYESYESYES
Operation Temperature-10℃ ~ +60℃ RH95% Max-10℃ ~ +60℃ RH95% Max-10℃ ~ +60℃ RH95% Max-10℃ ~ +60℃ RH95% Max
Storage Temperature-20℃ ~ +60℃ RH95% Max-20℃ ~ +60℃ RH95% Max-20℃ ~ +60℃ RH95% Max-20℃ ~ +60℃ RH95% Max
Power SourceDC12V±10%,750mADC12V±10%,750mADC12V±10%,750mADC12V±10%,750mA

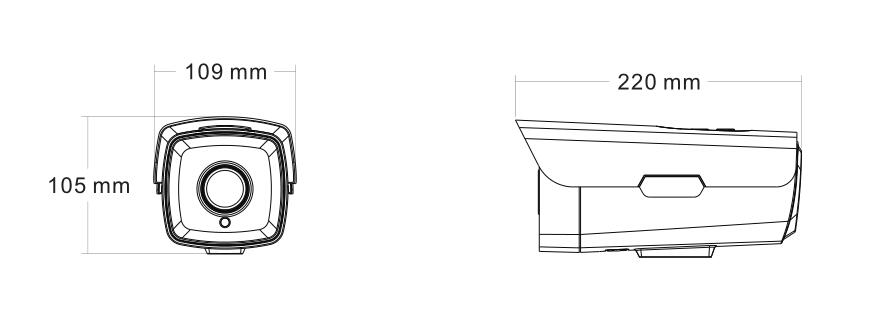

Dimension220(W) x 105(H) x 109(D)mm220(W) x 105(H) x 109(D)mm220(W) x 105(H) x 109(D)mm220(W) x 105(H) x 109(D)mm
Weight2.15Kgs  (With bracket)2.15Kgs  (With bracket)2.15Kgs  (With bracket)2.15Kgs  (With bracket)
