| Model NO. | KBTA90HTC8005XESL | KBTA90HTC8004XES | ||
| Video Output Mode | AHD: 8M@15fps, 5M@20fps/12.5fps, 4M/2M@30fps/25fps; CVI: 8M@15fps/12.5fps, 4M/2M@30fps/25fps TVI: 8M@15fps/12.5fps, 5M@20fps/12.5fps, 4M/2M@30fps/25fps; | AHD/TVI/CVI: 8M@15fps/12.5fps, 4M/2M@30fps/25fps | ||
| Camera | ||||
| Image Sensor | 1/2.8" SONY Starvis Back-illuminated CMOS sensor | 1/2.8'' SONY CMOS sensor | ||
| Resolution | 8M:3840*2160 5M:2592*1944 4M:2560*1440 2M:1920*1080 | 8M:3840*2160 4M:2560*1440 2M:1920*1080 | ||
| TV System | PAL/NTSC | PAL/NTSC | ||
| Electronic Shutter | Auto | Auto | ||
| Minimun Illumination | 0.01Lux | 0.01Lux | ||
| Scanning System | Progressive Scan | Progressive Scan | ||
| Lens | ||||
| Focus Length | 2.7-13.5mm Motor Zoom | 2.7-13.5mm Motor Zoom | ||
| Focus Control | Auto | Auto | ||
| Lens Type | Auto | Auto | ||
| Night Vision | ||||
| IR Cut Filter | YES | YES | ||
| Infrared LED | 42µ x 6PCS | 42µ x 6PCS | ||
| Infrared Distance | 60M | 60M | ||
| IR Status | AGC Auto Control | AGC Auto Control | ||
| Camera Features | ||||
| Starlight | / | / | ||
| Day/Night | YES | YES | ||
| OSD Menu | YES | YES | ||
| WDR | YES | YES | ||
| UTC | YES | YES | ||
| Noise Reduction | 3DNR | 3DNR | ||
| White Balance | AUTO / MANUAL | AUTO / MANUAL | ||
| Gain Control | AUTO | AUTO | ||
| General | ||||
| Housing | IP67 | IP67 | ||
| Bracket | YES | YES | ||
| Operation Temperature | -10℃ ~ +60℃ RH95% Max | -10℃ ~ +60℃ RH95% Max | ||
| Storage Temperature | -20℃ ~ +60℃ RH95% Max | -20℃ ~ +60℃ RH95% Max | ||
| Power Source | DC12V±10%,900mA | DC12V±10%,900mA | ||

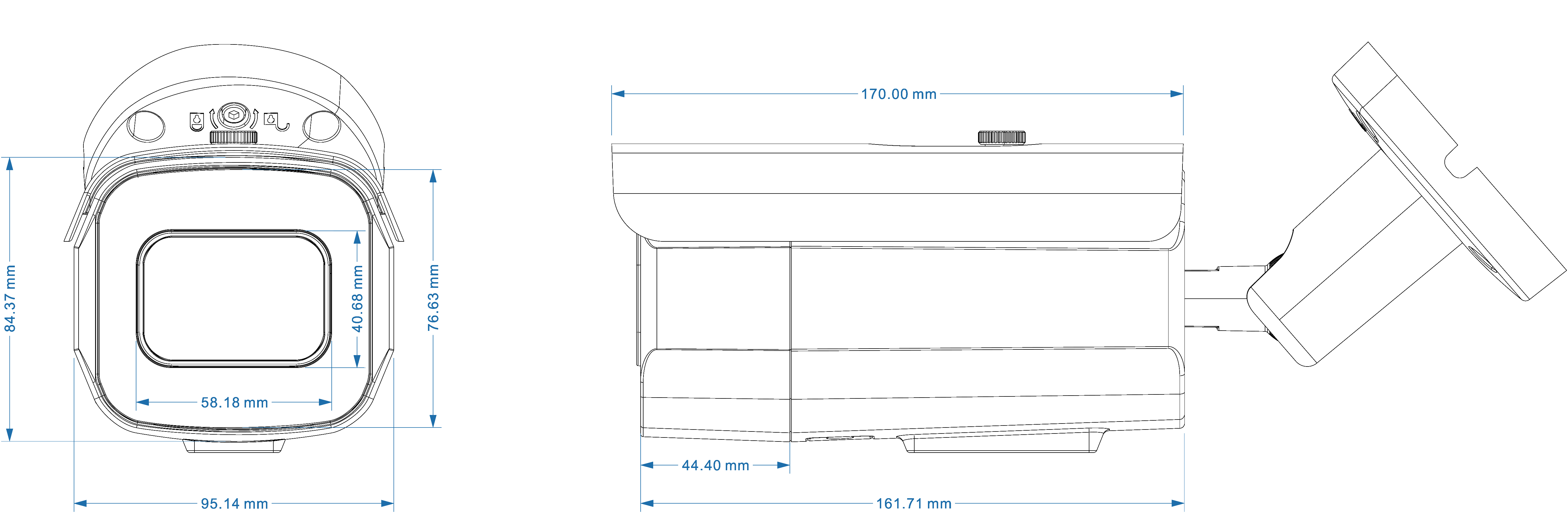

| Dimension | 170(W) x 110(H) x 101(D)mm | 170(W) x 110(H) x 101(D)mm | ||
| Weight | 1.65Kgs (With bracket) | 1.65Kgs (With bracket) | ||
