| Model | PT5AM18HTC200NS |
| Camera | |
| Image Sensor | 1/2.9" SONY 2.1MP CMOS Sensor |
| lmagine Resolution | 2MP |
| TV System | PAL/NTSC |
| S/N Ratio | >50db |
| PTZ | |
| Horizontal Rotation Speed | 45°/S |
| Horizontal Rotation Range | 0°~360° |
| Tilt Rotation Speed | 30°/s |
| Tilt Rotation Range | 0°~90° |
| Preset Points | 220 |
| Guard Tours | 3 groups |
| Guard Points | Max.16 points |
| Lens | |
| Focus Length | 5.35mm-96.3mm |
| Focus Control | 18X Optical Zoom |
| Night Vision | |
| Infrared LED | ￠42x6PCS |
| IR Range | 60m |
| Day-night mode | AUTO |
| Communication | |
| UTC | Support |
| RS485 | Support |
| Interface | |
| Audio | / |
| Alarm | / |
| General | |
| Weatherproof | IP66 |
| Operating Temperature | Indoor: 0°~ +40° Outdoor: -40°~ +60° |
| Operating Humidity | ≤90% Non Condensing |
| Power | DC12V 2A/3A |
| Lightning Protection | Transient voltage 6000V |

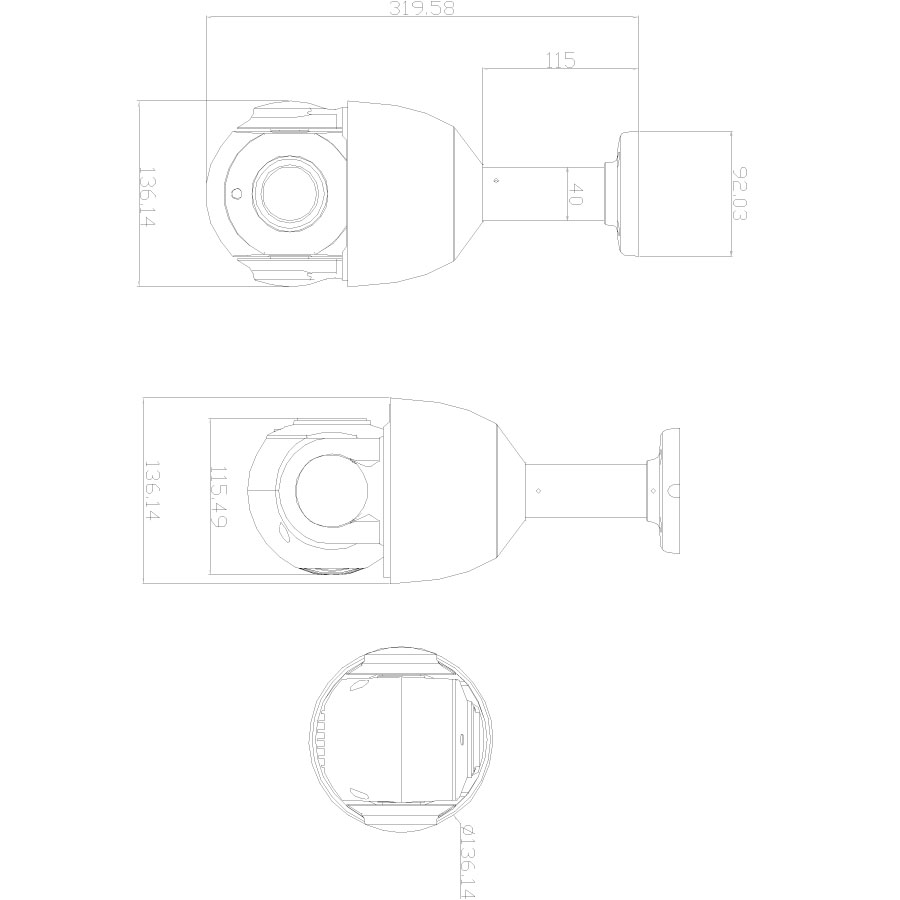

| Size of Package (LxWxH) | 29.5x28x17(cm) |
| Weight | 4.2Kgs |
