PT7KH18HTC200NS
  • Specification

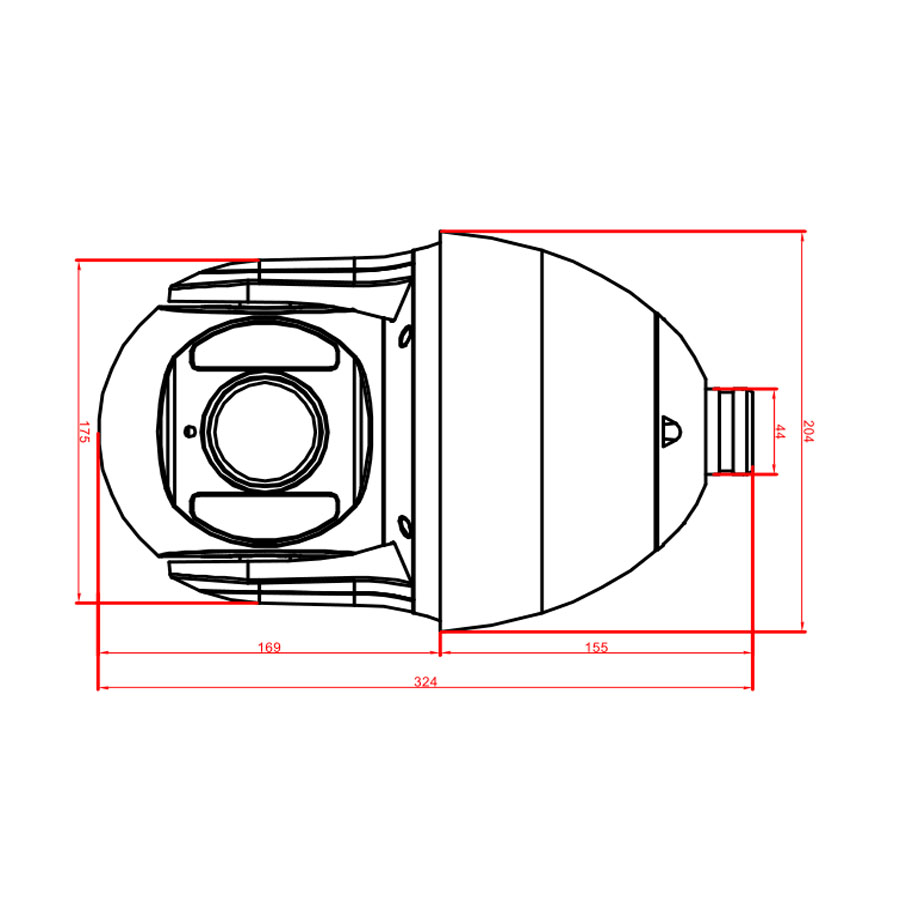

  • Drawing
  • Download
  • Feedback
ModelPT7KH18HTC200NS
Camera
Image Sensor1/2.9" SONY  2.1MP CMOS Sensor
lmagine  Resolution2MP
TV SystemPAL/NTSC
S/N Ratio>50db
PTZ
Horizontal Rotation Speed 120°/S
Horizontal Rotation Range 0°~360°
Tilt Rotation Speed 30°/s
Tilt Rotation Range 0°~93°
Preset Points 220
Guard Tours3 groups
Guard PointsMax.16 points
Lens
Focus Length5.35mm-96.3mm
Focus Control18X Optical Zoom
Night Vision
Infrared LED¢42x8PCS IR LEDS + 2PCS Laser Lamp
IR Range150m
Day-night modeAUTO
Communication
UTCSupport
RS485Support
Interface
Audio/
Alarm/
General
WeatherproofIP66
Operating TemperatureIndoor: 0°~ +40°   Outdoor:  -40°~ +60°
Operating Humidity ≤90% Non Condensing
PowerDC12V/4A
Lightning ProtectionTransient voltage 6000V
Size of Package (LxWxH)31x31x44(cm)
Weight10.2Kgs
