| Model | HT412 | |
| Power | Power Adapter Voltage | Input：110-240V/AC 50-60Hz |
| The maximum power supply machine | 60W | |
| Protection level | Mould | +-4KV |
| Differential mode | +-1KV | |
| Network Connector | Network Port | 1~4 port :10/100Mbps PoE Ethernet LAN port WAN1/WAN2 port:10/100Mbps Ethernet WAN port |
| Transmission Distance | Extend switch is default OFF, state(1~4 port)：100m Extend switch is ON, state:(1~4 port:): 200m WAN1/2 port: 100m | |
| Transmission Medium | Cat5/5e/6 standard network cable | |
| Network Switch | Network Standard | IEEE802.3/10BASE-T Ethernet |
| IEEE802.3u/100BASE-TX Ethernet | ||
| IEEE802.3x Flow Control, IEEE802.3af | ||
| Maximum Frame Size | 1536 Bytes | |
| MAC address lis | 2K | |
| Backplane bandwidth | 1Gbps | |
| PoE Standard | IEEE802.3af | |
| Power Over Ethernet | PoE Power Supply Type | End-Span(4/5+;7/8-) |
| PoE Power Consumption | af,at Adaptive (every port) | |
| LED Status Indicator | PoE Ethernet | When the PoE power supply is used, 1-4 LEDs are green |
| When accessing Ethernet, ports 1-4 are yellow | ||
| Environmental | Working temperature | 0℃~55℃ |
| Storage temperature | -40℃~70℃ | |
| Working humidity | 10%-90% non-condensing | |
| Storage humidity | 5%-95% non-condensing | |

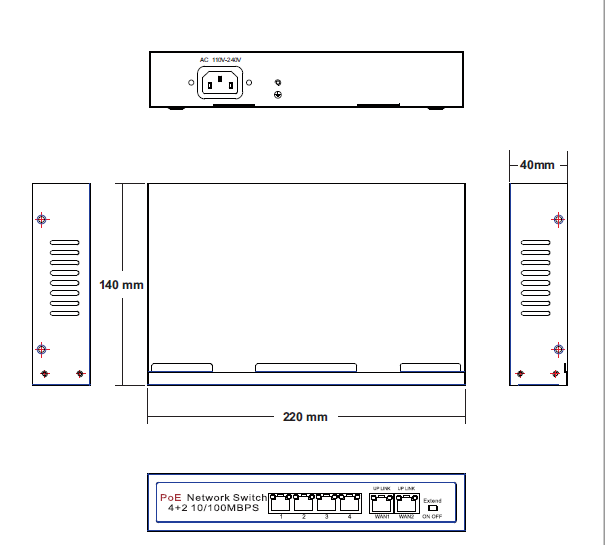

| Mechanical | Dimension (L x W x H) mm | 220*140*40 |
| Material | SECC | |
| Color | Dark grey | |
| Stability | MTBF | >30000h |
