| Model | RT2418 | |
| Power | Power Adapter Voltage | Input 100-240V/AC 50/60Hz |
| The maximum power supply machine | 370W | |
| Protection level | Mould | +-4KV |
| Differential mode | +-1KV | |
| Network Connector | Network Port | 1~24 port: :10/100Mbps PoE Ethernet port 25~28 port:10/100/1000Mbps WAN1/WAN2 port |
| Transmission Distance | 1~24 port: Recommended distance is 100m | |
| Transmission Medium | Cat5/5e/6 standard network cable | |
| Network Switch | Network Standard | IEEE802.3/10BASE-T Ethernet |
| IEEE802.3u/100BASE-TX Ethernet | ||
| IEEE802.3ab 1000BASE-T Ethernet | ||
| Maximum Frame Size | 1536 Bytes | |
| MAC address list | 2K | |
| PoE Standard | IEEE802.3af/at | |
| Power Over Ethernet | PoE Power Supply Type | End-Span(4/5+;7/8-) |
| PoE Power Consumption | at, (every port) | |
| LED Status Indicator | POE Ethernet | POE: 24 green light indicates that the POE is power on |
| Ethernet: 24 yellow light indicates that the Ethernet Link and Act | ||
| Environmental | Working temperature | 0℃~50℃ |
| Working humidity | 0%-90% non-condensing | |
| Storage temperature | -40℃~85℃ | |
| Storage Humidity | 0%-90% RH non-condensing | |

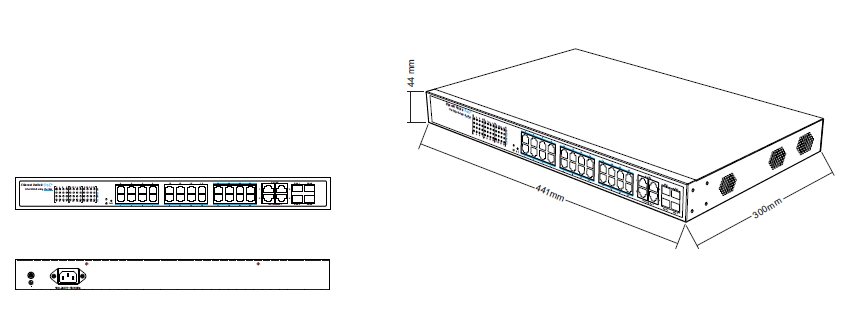

| Mechanical | Dimension (L x W x H) mm | 441*300*44 |
| Material | SECC | |
| Color | Dark gray | |
| Stability | MTBF | >30000h |
