| Model | PT7KH18XGC200 |
| Camera | |
| Image Sensor | 1/2.9" Progressive Scan CMOS Sensor |
| Horizontal Resolution | 2MP |
| Compression | H.265/H.264 |
| S/N Ratio | >50db |
| PTZ | |
| Horizontal Rotation Speed | 120°/S |
| Horizontal Rotation Range | 0°~360° |
| Tilt Rotation Speed | 30°/s |
| Tilt Rotation Range | 0°~93° |
| Preset Points | 255 |
| Guard Tours | 8 groups |
| Guard Points | Max.20 points |
| Lens | |
| Focus Length | 5.9mm-94.4mm |
| Focus Control | 18X Optical Zoom |
| Night Vision | |
| Infrared LED | ￠42x6PCS IR LEDS + 2PCS Laser LED |
| IR Range | 120m |
| Day-night mode | AUTO |
| Network | |
| Network protocol | TCP/IP, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, UDP, IGMP,P2P |
| ONVIF | Support |
| Network interface | Built-in RJ45 network interface,support 10M/100M IP DATA |
| Main Stream1 | 1920*1080@30fps |
| Main Stream2 | 1280*720@30fps |
| Main Stream3 | / |
| Main Stream4 | / |
| Main Stream5 | / |
| Main Stream6 | / |
| Sub Stream1 | 720*480@30fps |
| Sub Stream2 | 352*288@30fps |
| Sub Stream3 | / |
| Sub Stream4 | / |
| Interface | |
| Audio | Optional |
| Alarm | / |
| SD Card Slot | Optional |
| POE | Optional |
| General | |
| Weatherproof | IP66 |
| Operating Temperature | Indoor: 0°~ +40° Outdoor: -40°~ +60° |
| Operating Humidity | ≤90% Non Condensing |
| Power | DC12V/4A |
| Lightning Protection | Transient voltage 6000V |

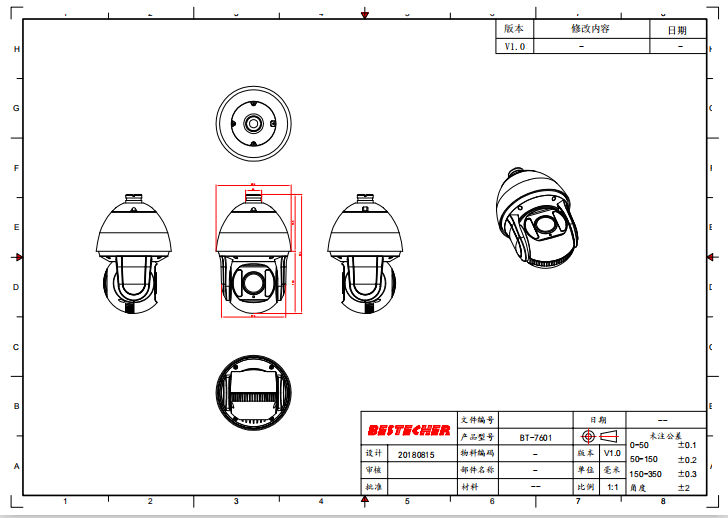

| Dimension | 31x31x44(cm) |
| Weight | 10.7Kgs |
