PT10GH18XGC200
  • Specification

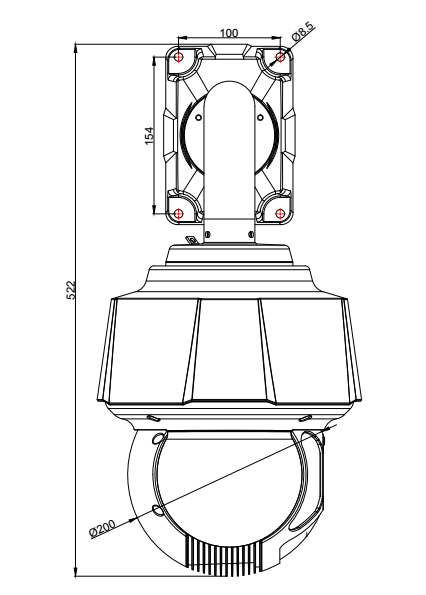

  • Drawing
  • Download
  • Feedback
ModelPT10GH18XGC200
Camera
Image Sensor1/2.9" Progressive Scan CMOS Sensor
Horizontal Resolution2MP
CompressionH.265/H.264
S/N Ratio>50db
PTZ
Horizontal Rotation Speed 200°/S
Horizontal Rotation Range 0°~360°
Tilt Rotation Speed 100°/s
Tilt Rotation Range 0°~93°
Preset Points 255
Guard Tours8 groups
Guard PointsMax.20 points
Lens
Focus Length5.9mm-94.4mm
Focus Control18X Optical Zoom
Night Vision
Infrared LED¢42 x 11PCS IR LEDS + 4PCS LED Laser
IR Range250m
Day-night modeAUTO
Network
Network protocolTCP/IP, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, UDP, IGMP,P2P
ONVIFSupport
Network interfaceBuilt-in RJ45 network interface,support 10M/100M IP DATA
Main Stream11920*1080@30fps
Main Stream21280*720@30fps
Main Stream3/
Main Stream4/
Main Stream5/
Main Stream6/
Sub Stream1720*480@30fps
Sub Stream2352*288@30fps
Sub Stream3/
Sub Stream4/
Interface
AudioOptional
Alarm/
SD Card SlotOptional
POE/
General
WeatherproofIP66
Operating TemperatureIndoor: 0°~ +40°   Outdoor:  -40°~ +60°
Operating Humidity ≤90% Non Condensing
PowerDC12V/4A
Lightning ProtectionTransient voltage 6000V
Dimension33x33x52(cm)
Weight13.7Kgs
