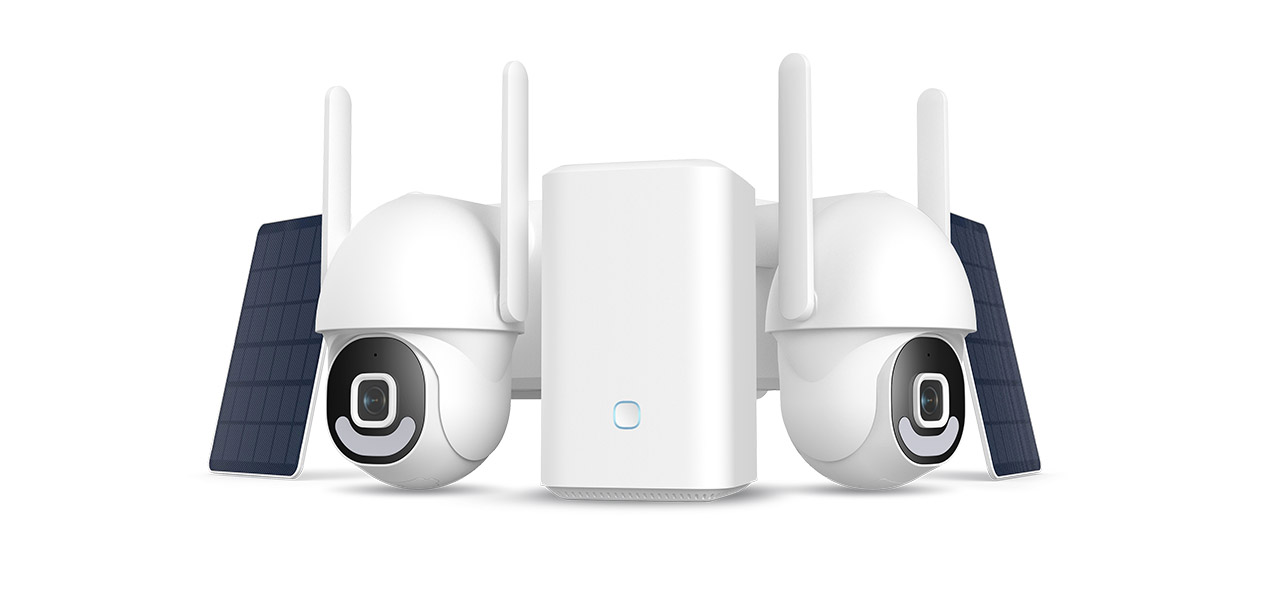

| Model NO. | LW2MC82B2 |
| Package | |
| Hub | 1x Smart Hub |
| Camera | 2 x LP5Q |
| Camera Model | LP5Q |
| Camera | |

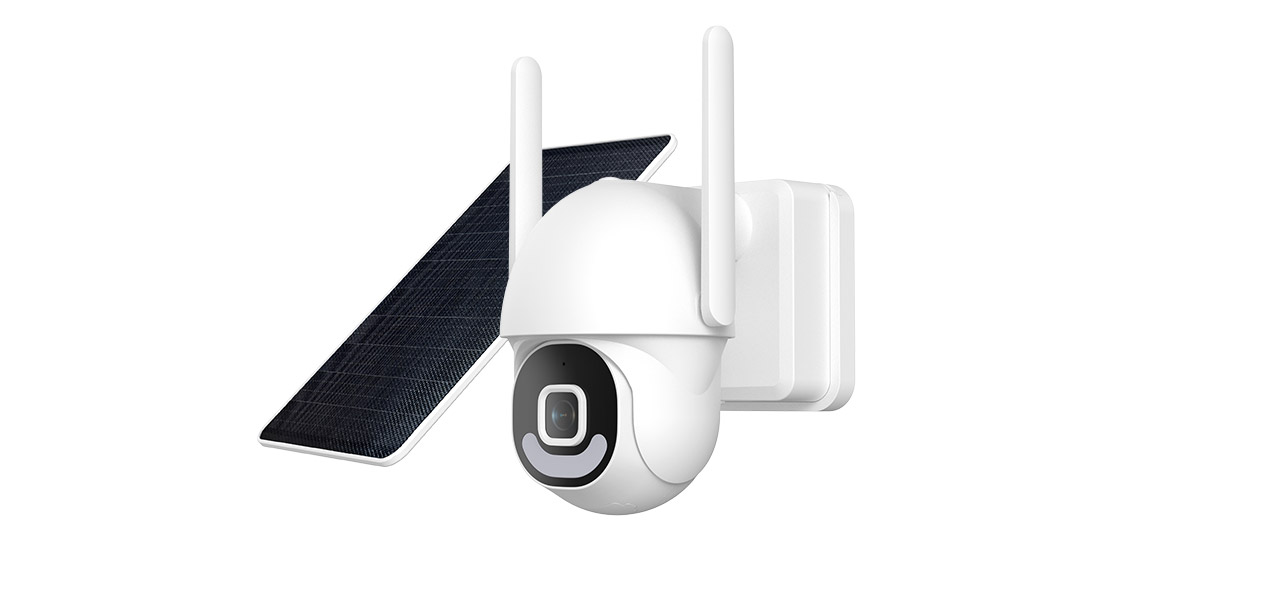

| Product name | AOR solar outdoor PTZ camera |
| Shell material | Plastic (PC+ABS V0 fire resistant) |
| Parameter configuration | |
| Primary stream resolution | 2880*1624 |
| Substream resolution | 1280*720 |
| Focal Length & FOV | Fixed focus 4MM, horizontal field of view: 80° Vertical field of view: 42° Diagonal field of view: 93° |
| Illumination | |
| Fill type | Dual-Light (White + Infrared) |
| Number of fill lights | 4 white light + 4 infrared |
| Infrared wavelength | 850nm |
| Fill distance | 15m |
| Network | |
| Wireless communication | 2.4G Wi-Fi |
| Client | SV 360 APP（Supports Android/iOS/HarmonyOS） |
| Interfaces/Buttons | |
| Built-in microphone | Support,full duplex voice intercom |
| Built-in speaker | Support,full duplex voice intercom |
| SD card storage | Supports a maximum of 512GB |
| Reset key | Hardware Reset Supported |
| Power switch | Power on and off DIP switches |
| Smart function | |
| Smart Feature | Motion Detection, Human Detection, Vehicle Detection, Non-Motorized Vehicle Detection, Supports Linked Sound Alarm & Red/Blue Light Warning |
| Video Bitrate | Adaptive Bitrate |
| Audio Bitrate | Adaptive Bitrate |
| Image | |
| Maximum Image Size | Maximum 2880*1624, supports dual stream |
| Frame Rate | Maximum 15fps |
| Image Flip | Support |
| Backlight Compensation | Support |
| Software Features | |
| Smart Feature | Mobile detection, humanoid detection, vehicle detection, non-motor vehicle detection, support linkage sound alarm, red and blue light warning |
| General Specifications | |
| Operating temperature and humidity | -10℃ to +50℃, ≤RH95% no condensation |
| Power supply mode | Battery powered + solar charging |
| Power dissipation | Sleep power consumption: 4.7mW/ Typical power consumption: 175mW/ Peak power consumption: 2.8W |
| Power interface type | Type-C_DC 5V 2A |
| Package size | Length 290× width 200× height 178mm |
| Body weight of equipment | 630g (ball machine body) |
| Packing weight | 1515g |
| Waterproof and dustproof | IP65 |
| Model | SH0J-A1 |
| System | |

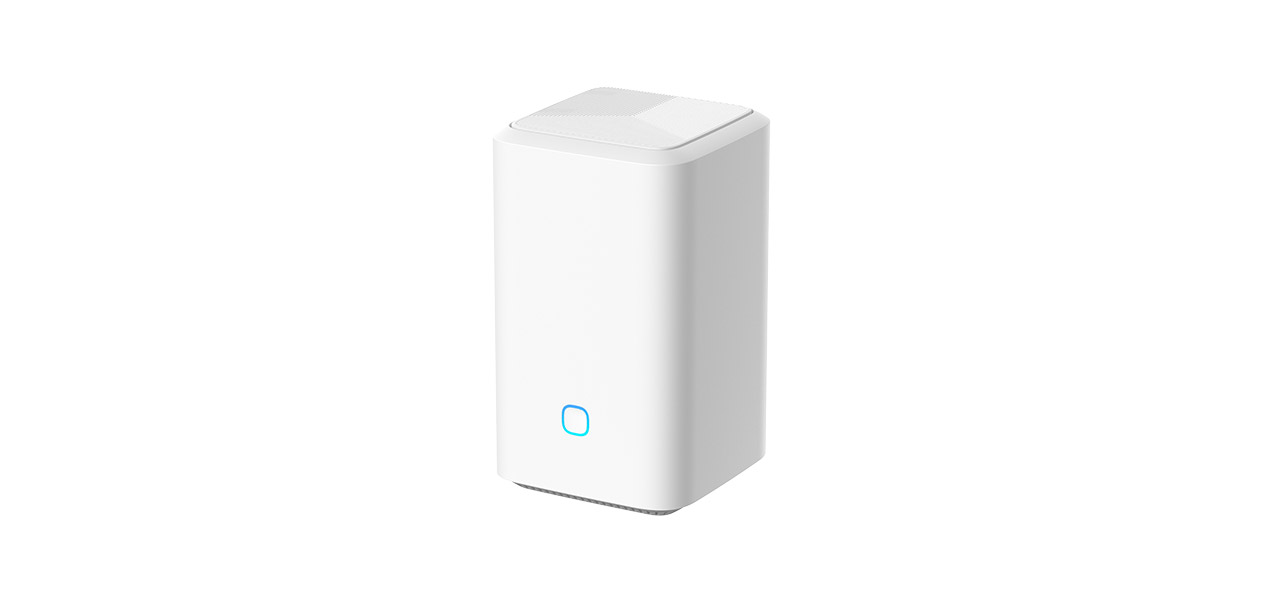

| Product Name | Smart Hub Intelligent Control Termina |
| Housing Material | PC+ABS Plastic (V0 Fireproof Grade) |
| System | |
| Flash | 16MB NOR Flash |
| DDR | DDR3 2Gb |
| EMMC | 32GB eMMC |
| Video | |
| Network Video Input Capacity | 8-channel IPC Input (Max) |
| Supported | LP5Q |
| Network | |
| WiFi | 2.4GHz /5.8Ghz Wi-Fi 6 |
| Bluetooth | BT 5.2 |
| Interfaces | |
| Speaker | Built-in 1 Speaker |
| SD Card | 512G*1 MAX |
| Reset | Support hardware reset |
| Pairing keys | Support one-click pairing |
| Status indicator | Red and blue indicator light |
| LAN | 1*RJ45 10/100M LAN |
| Smart | |
| Alarm | Multiple alarm tones to choose from, supports custom alarm sounds. |
| General | |
| Operating Temperature/Hu midity | Simplified Chinese, English, German, French, Spanish, Italian |
| Power Supply | Mains Power (Continuous Supply) |
| Power | Peak: <3W |
| Power Interface | DC 12V/1A |
| Mobile client | SV 360 APP (Android/iOS/HarmonyOS) |
| Web | PC：Windows、Mac OS |
| Product Dimensions | L95*W95*H161mm |
| Package Dimensions | L156*W101*H193mm |
| N.W. | ≈350g |
| G.W. | ≈584g |
| System Package Weight | Package Weight +10% |
