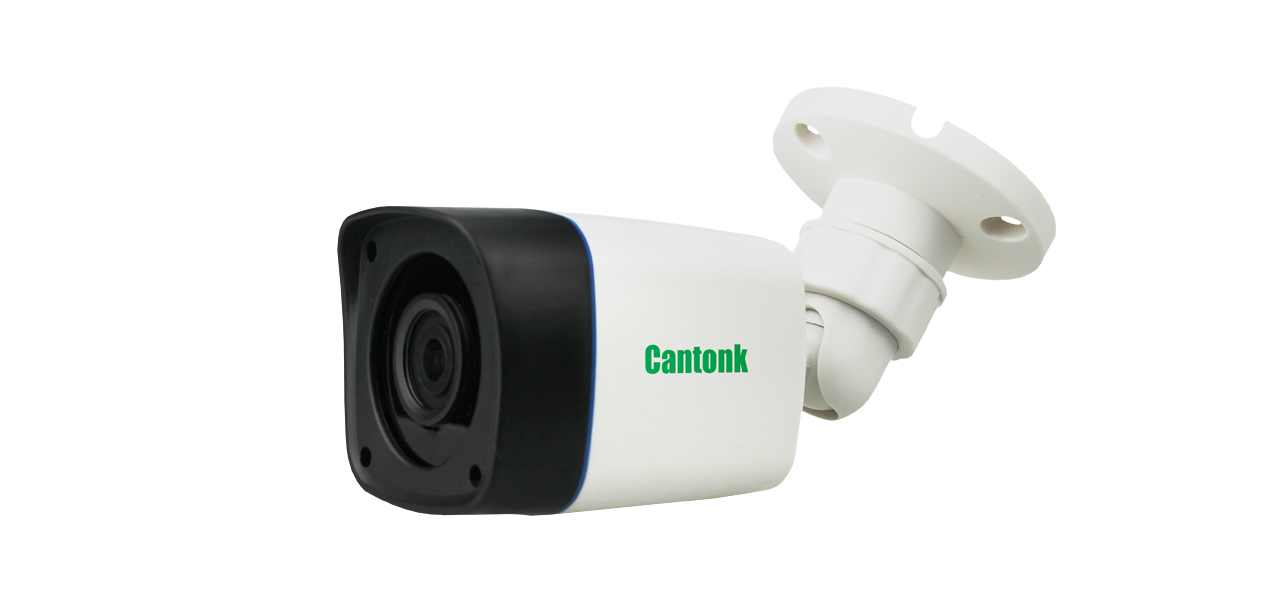

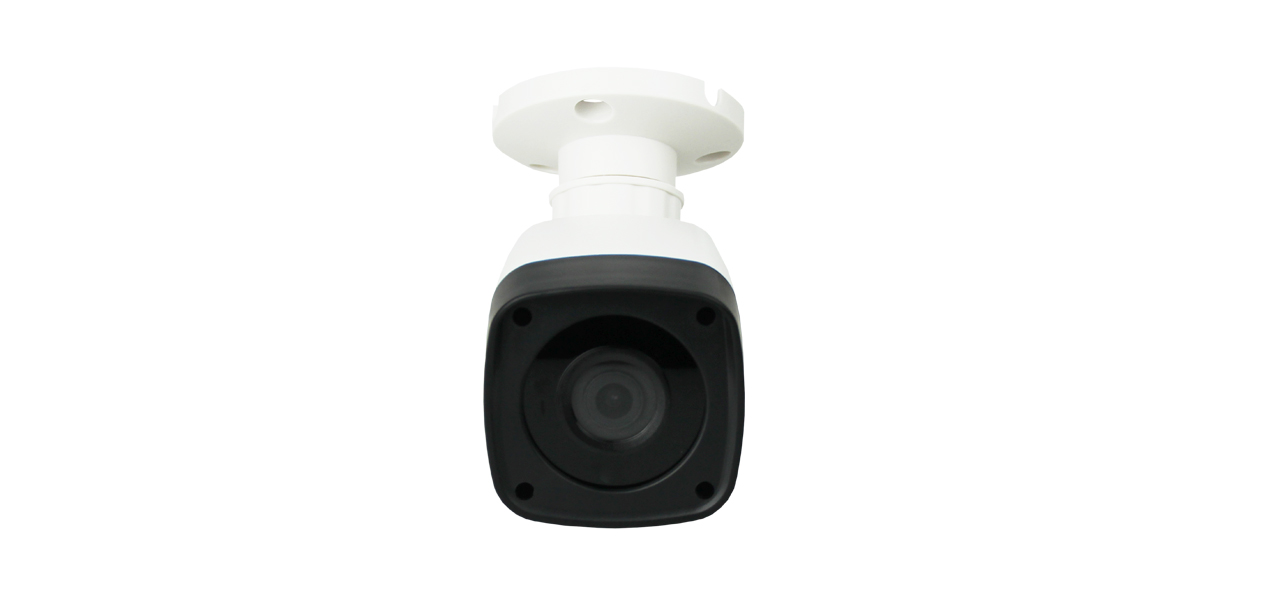

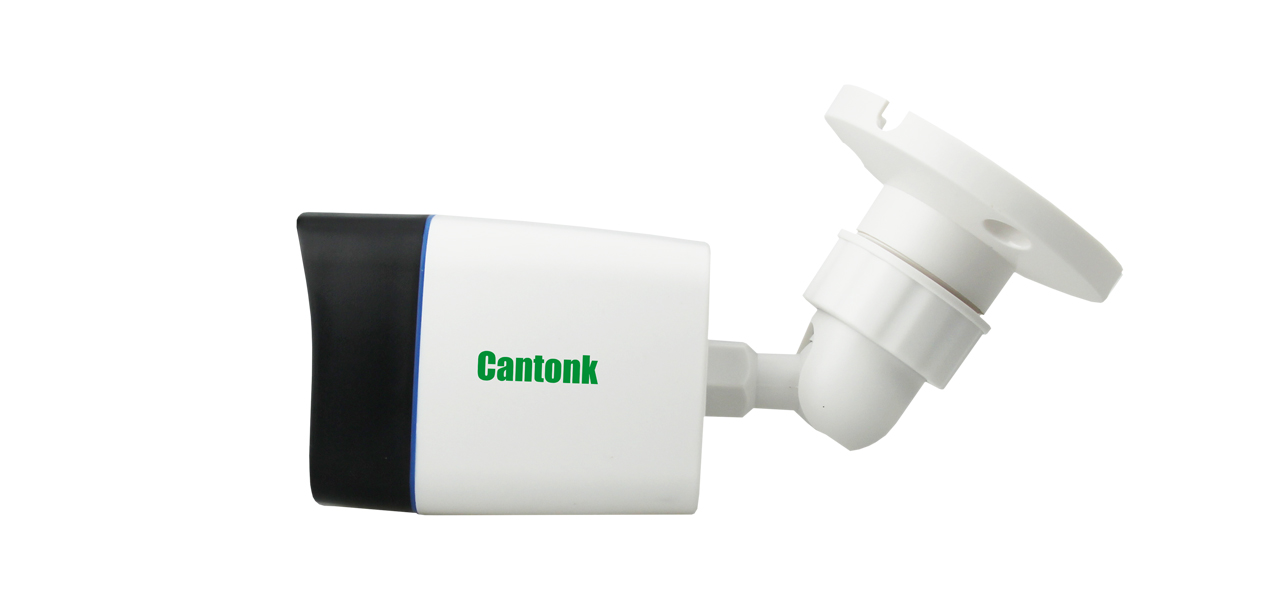

AHD CP20 2MP
  • Specification
  • Drawing
  • Download
  • Feedback
Model NO.KBCP20HTC200F
Video Output ModeAHD/TVI/CVI: 2M@30fps/25fps
Camera
Image Sensor1/3" CMOS Sensor
Image Resolution2M:1920*1080
TV SystemPAL/NTSC
Electronic ShutterAuto
Scanning SystemProgressive  Scan
Lens
Focus LengthBoard Lens 3.6mm
Focus ControlFixed
Lens TypeFixed
Night Vision
IR Cut FilterYES
Infrared LED14µ x18PCS
Infrared Distance20M
IR StatusAGC Auto Control
Camera Features
Starlight/
Day/Night  YES
OSD Menu Language YES
WDR DWDR
UTC YES
White Balance AUTO / MANUAL
Noise Reduction 3DNR
Gain Control AUTO
General
HousingIP67
BracketYES
Operation Temperature-10℃ ~ +60℃ RH95% Max
Storage Temperature-20℃ ~ +60℃ RH95% Max
Power SourceDC12V±10%,550mA
Dimension160.8(W) x 62(H) x 62(D)mm
Weight380g
