AHD TE30 2MP
  • Specification

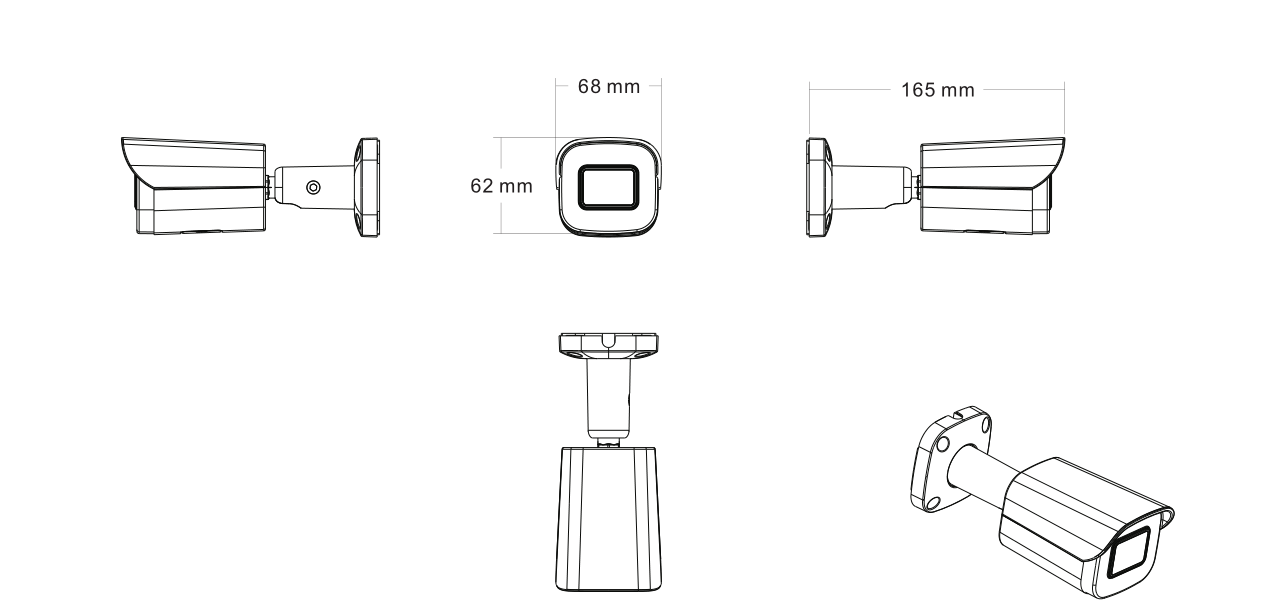

  • Drawing
  • Download
  • Feedback
Model NO.KBTE30HTC200F
Video Output ModeAHD/TVI/CVI: 2M@30fps/25fps
Camera
Image Sensor1/3" CMOS Sensor
Image Resolution2M:1920*1080
TV SystemPAL/NTSC
Electronic ShutterAuto
Scanning SystemProgressive  Scan
Lens
Focus LengthBoard Lens 3.6mm
Focus ControlFixed
Lens TypeFixed
Night Vision
IR Cut FilterYES
Infrared LED14µ x 18PCS
Infrared Distance20M
IR StatusAGC Auto Control
Camera Features
Starlight/
Day/Night  YES
OSD Menu Language YES
WDR DWDR
UTC YES
White Balance AUTO / MANUAL
Noise Reduction 3DNR
Gain Control AUTO
General
HousingIP67
BracketYES
Operation Temperature-10℃ ~ +60℃ RH95% Max
Storage Temperature-20℃ ~ +60℃ RH95% Max
Power SourceDC12V±10%,500mA
Dimension165(W) x 62(H) x 68(D)mm
Weight650g
