AHD LBA 2MP
  • Specification

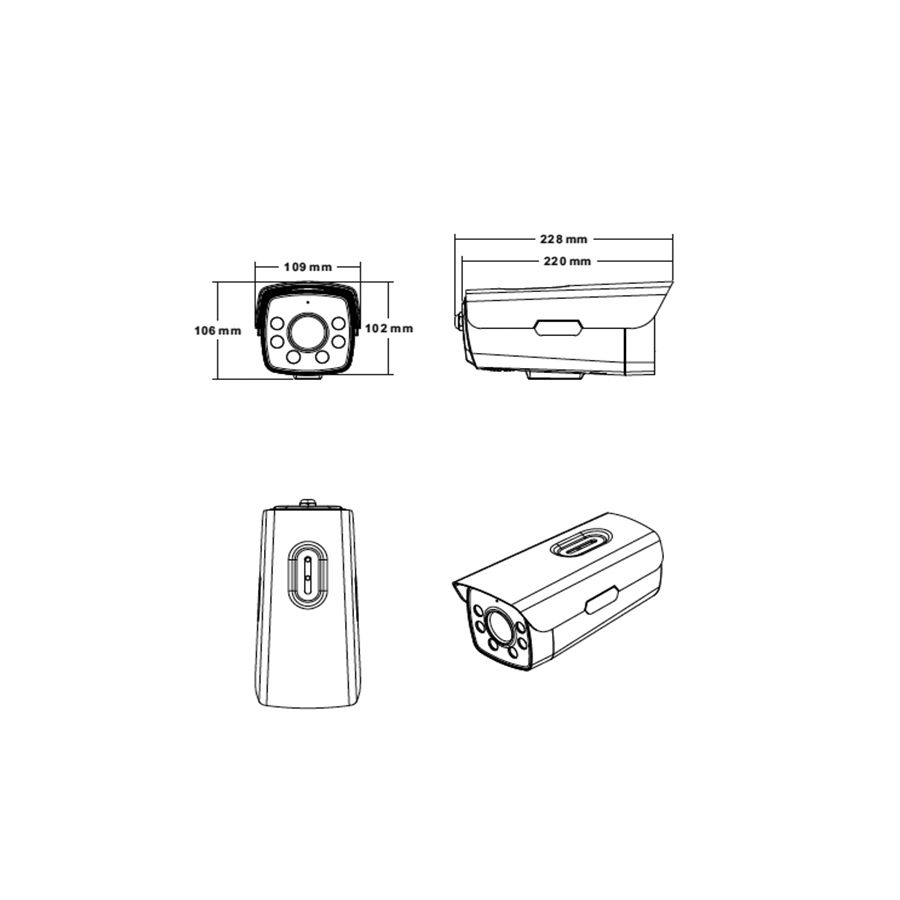

  • Drawing
  • Download
  • Feedback
Model NO.KLBAHTC200F
Video Output ModeAHD/TVI/CVI: 2M@30fps/25fps
Camera
Image Sensor1/3" CMOS Sensor
Image Resolution2M:1920*1080
TV SystemPAL/NTSC
Electronic ShutterAuto
Scanning SystemProgressive  Scan
Lens
Focus LengthBoard Lens 8mm
Focus ControlFixed
Lens TypeFixed
Night Vision
IR Cut FilterYES
Infrared LED42µ x6PCS
Infrared Distance60M
IR StatusAGC auto control
Camera Features
Starlight/
Day/Night  YES
OSD Menu Language YES
WDR DWDR
UTC YES
Noise Reduction 3DNR
White Balance AUTO / MANUAL
Gain Control AUTO
General
HousingIP67
BracketYES
Operation Temperature-10℃ ~ +60℃ RH95% Max
Storage Temperature-20℃ ~ +60℃ RH95% Max
Power SourceDC12V±10%,900mA
Dimension313(W) x 109(H) x 106(D)mm
Weight1.85Kgs  (With bracket)
