| Model NO. | KBTE30HD400ESL | |
| Video Output Mode | EX-SDI: 8M@15fps, 4M/2M@30fps/25fps; HD-SDI: 2M@30fps/25fps; AHD/TVI: 5M@20fps/12.5fps, 4M/2M@30fps/25fps; CVI: 4M/2M@30fps/25fps; | |
| Camera | ||
| Image Sensor | 1/2.8" SONY Starvis Back-illuminated CMOS sensor | |
| Image Resolution | 8M:3840*2160 5M:2592*1944 4M:2560*1440 2M:1920*1080 | |
| TV System | PAL/NTSC | |
| Electronic Shutter | Auto | |
| Minimun Illumination | 0.01Lux | |
| Scanning System | Progressive Scan | |
| Lens | ||
| Focus Length | Board Lens 3.6mm | |
| Focus Control | Fixed | |
| Lens Type | Fixed | |
| Night Vision | ||
| IR Cut Filter | YES | |
| Infrared LED | 14µ x18PCS | |
| Infrared Distance | 20M | |
| IR Status | AGC Auto Control | |
| Camera Features | ||
| Starlight | / | |
| Day/Night | YES | |
| OSD Menu Language | YES | |
| WDR | YES | |
| UTC | YES | |
| White Balance | AUTO / MANUAL | |
| Noise Reduction | 3DNR | |
| Gain Control | AUTO | |
| General | ||
| Housing | IP67 | |
| Bracket | YES | |
| Operation Temperature | -10℃ ~ +60℃ RH95% Max | |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max | |
| Power Source | DC12V±10%,550mA | |

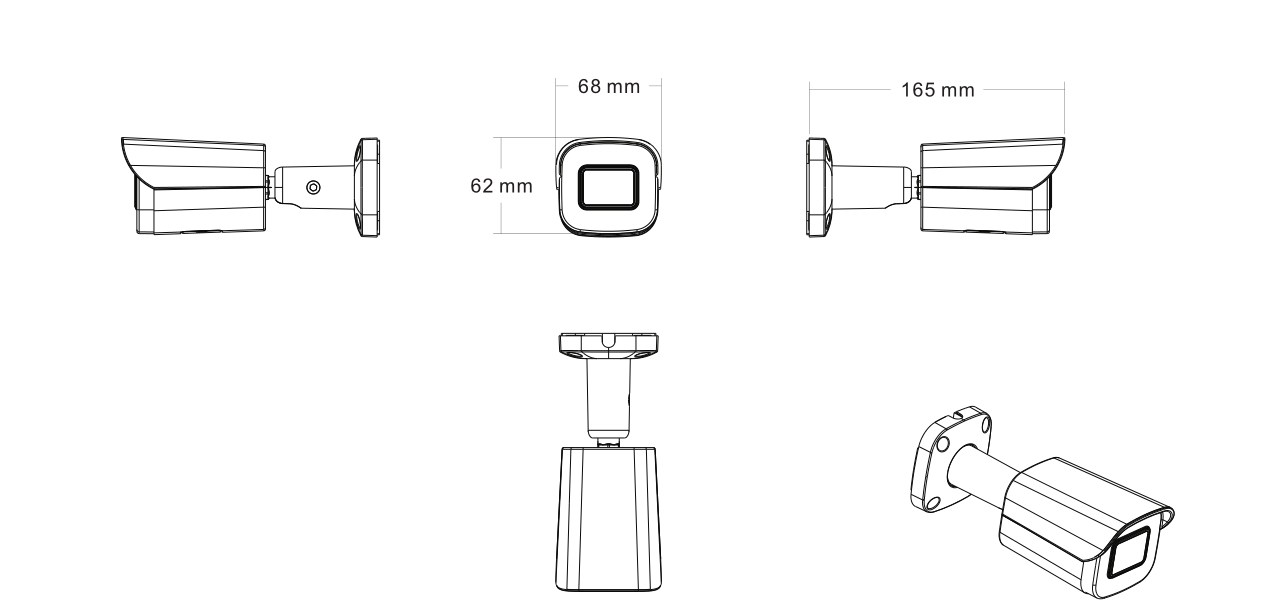

| Dimension | 165(W) x 62(H) x 68(D)mm | |
| Weight | 650g | |
