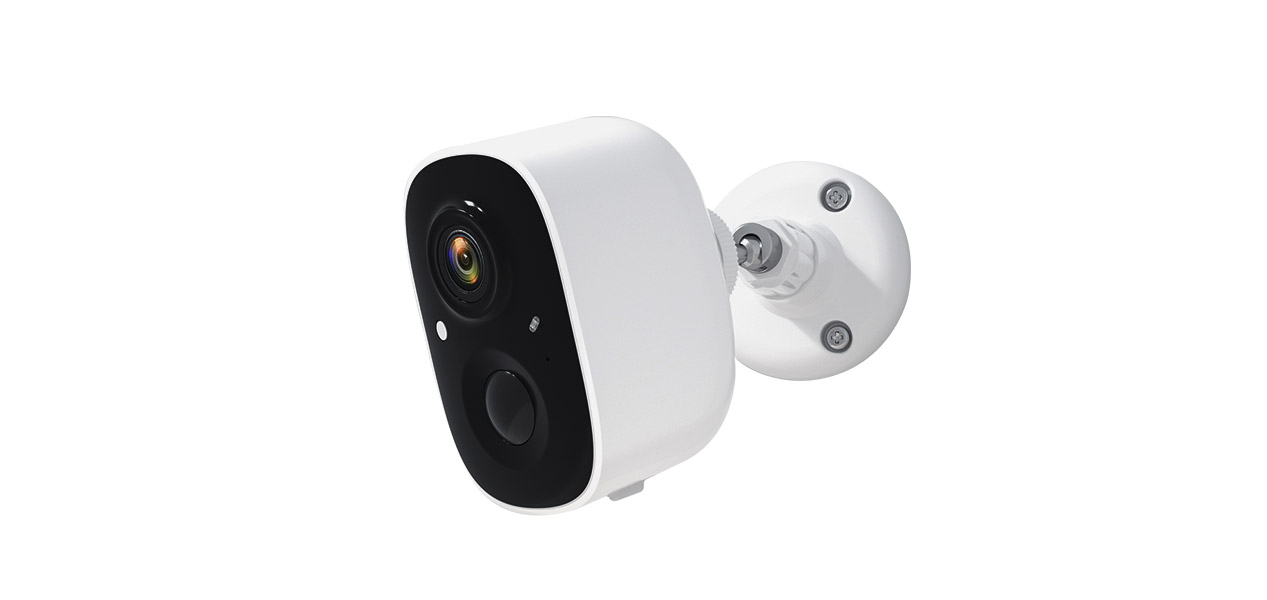

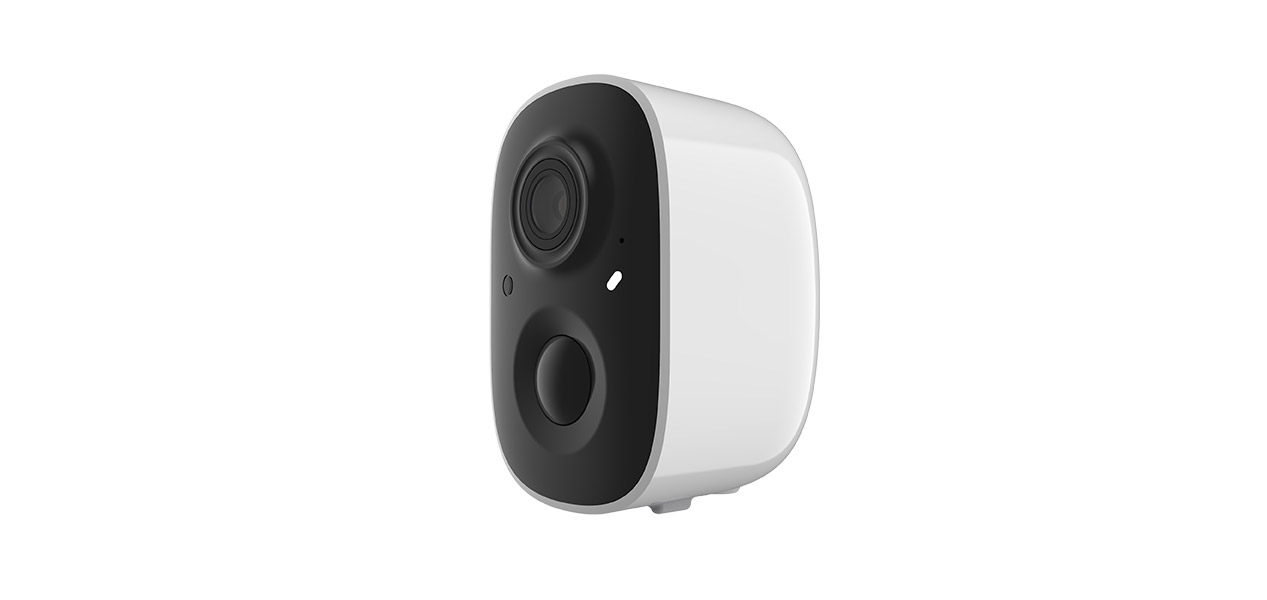

Model NO.AC83
Camera
Image Sensor1/2.9" Progressive Scan CMOS
Resolution2MP
Effective Pixels1920(H)*1080(V)
Compression H.264/H.265
Electronic Shutter TimeAuto(1/1.5s~1/30000s)
S/N Ratio46dB
Scanning SystemProgressive
Video OutputWireless network
Reset ButtonYes
PTZ
Horizontal Rotation Range /
Tilt Rotation Range /
Guard Points/
LENS Type
Focus Length2.8mm F2.0
Focus ControlFixed
Lens TypeFixed
Pixels2M Pixels
Night Vision
Infrared LED14μ x 8PCS + 14μ x 1PCS White light
Infrared Distance7M
IR StatusAGC auto control
IR Power OnAuto Control
Network
Ethernet/
ProtocolTCP/IP、UDP/IP、DHCP、MQTT、P2P
ONVIF/
P2PSupport
4G/
POE/
Main Stream 11920*1080@15fps
Main Stream 2/
Main Stream 3/
Sub Stream 11280*720@15fps
Sub Stream 2/
Sub Stream 3/
Tri Stream/
IE Brower /
Smart Phonesupport
Wireless
Antena3dbi
Hotspot/
Wi-FiWi-Fi(IEEE802.11b/g/n)
WIFI RangeNo obstacles 100m Max.
Camera Features
Day/NightColor/ B&W (IR-CUT )
Minimun Illumination0.01 Lux
Image ConfigYES
Corridor Pattern/
ROI/
Defog  Mode/
BLCSupport
HDR/
3DNRSupport
DWDRWDR
Motion DetectionSupport
Privacy  Masking/
Recording ModeSDcard
LanguageSimplified Chinese, English, Japanese, German, Russian, French, Italian, Spanish
Function
Audio2-Way Audio
AlarmMotion Detection、PIR human body infrared detection
SD Card SlotSupport Max 128G
General
Housingplastic,IP65
BracketSupport
IR Cut FilterYES
PowerDC 5V/1.5A or 1 x 18650 (5700mAh)battery powered
Use time: 6 months (under the condition that 20/10s videos are recorded every day)
Standby time: 1 year
Operation Temperature -10℃ ~ +45℃ RH80% Max
Storage Temperature-20℃ ~ +60℃ RH90% Max
Color Box Size67mm(L)*58mm(W)*89mm(H)
