| Model NO. | LP4Q-A1 |
| Camera | |

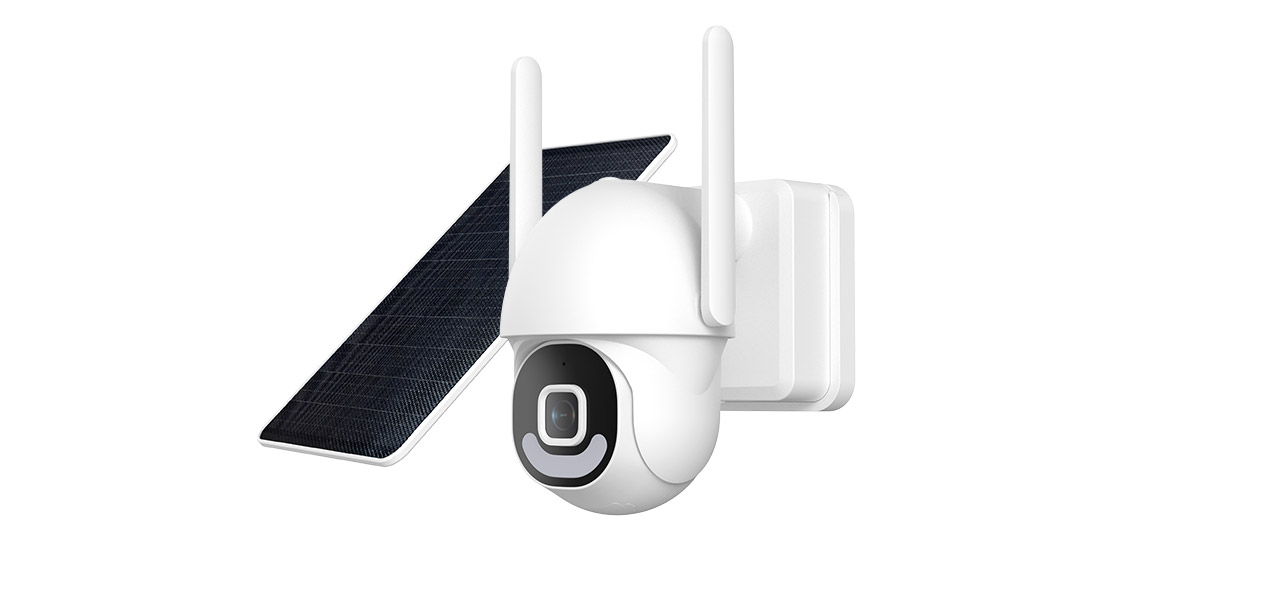

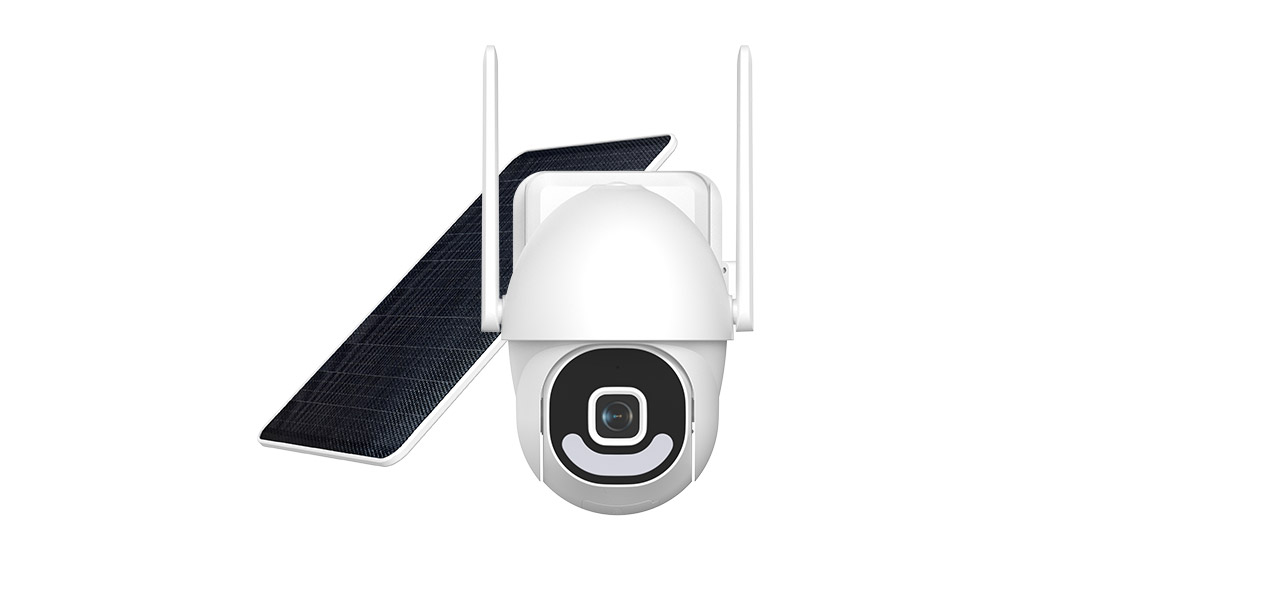

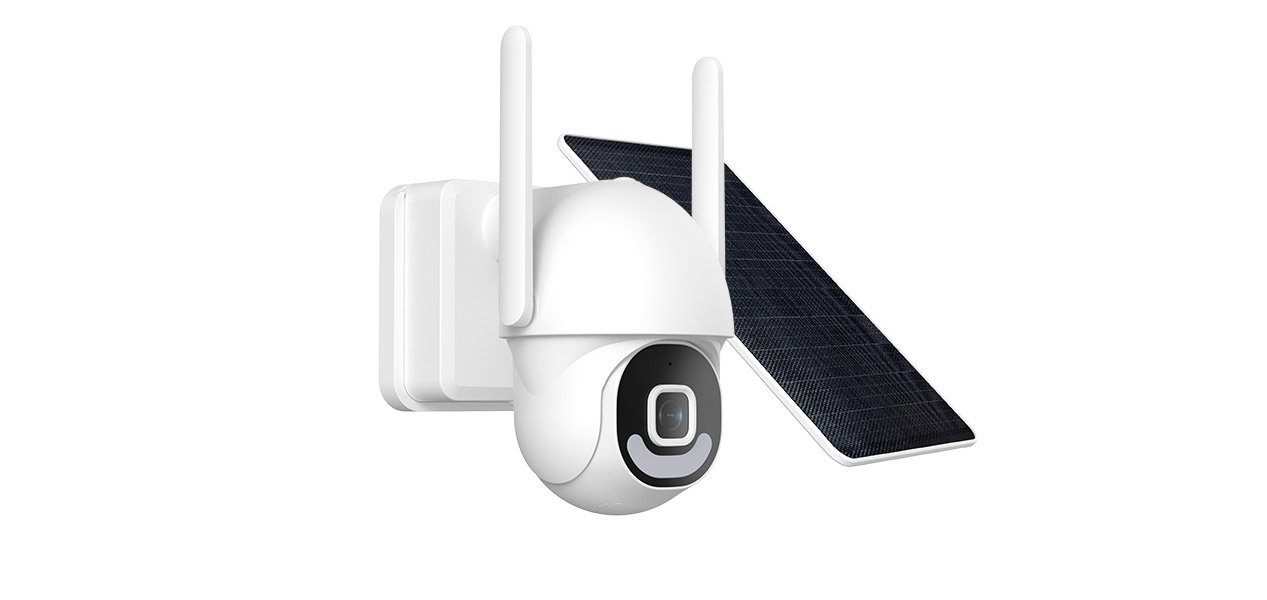

| Product name | AOR solar outdoor PTZ camera |
| Shell material | Plastic (PC+ABS V0 fire resistant) |
| Parameter configuration | |
| Primary stream resolution | 2560*1440 |
| Substream resolution | 1280*720 |
| Focal length & Field of view | Fixed focus 4MM, horizontal field of view: 80° Vertical field of view: 42° Diagonal field of view: 93° |
| Fill-in light | |
| Fill type | Double light fill light |
| Number of fill lights | 4 white light + 4 infrared |
| Infrared wavelength | 850nm |
| Fill distance | 15m |
| Network | |
| Wireless communication | 2.4G Wi-Fi |
| Client | SV360 APP (Android/iOS/Hongmeng support) |
| Interfaces/Buttons | |
| Built-in microphone | Support,full duplex voice intercom |
| Built-in speaker | Support,full duplex voice intercom |
| SD card storage | Supports a maximum of 512GB |
| Reset key | Support hardware reset |
| Power switch | Power on and off DIP switches |
| Smart function | |
| Smart Feature | Mobile detection, humanoid detection, vehicle detection, non-motor vehicle detection, support linkage sound alarm, red and blue light warning |
| Video Bitrate | Adaptive Bitrate |
| Audio Bitrate | Adaptive Bitrate |
| Image | |
| Maximum Image Size | Maximum 2560x1440, supports dual stream |
| Frame Rate | Maximum 15fps |
| Image Flip | Support |
| Backlight Compensation | Support |
| Software Features | |
| Smart Feature | Mobile detection, humanoid detection, vehicle detection, non-motor vehicle detection, support linkage sound alarm, red and blue light warning |
| General Specifications | |
| Operating temperature and humidity | -10℃ to +50℃, ≤RH95% no condensation |
| Power supply mode | Battery powered + solar charging |
| Power dissipation | Sleep power consumption: 4.7mW/ Typical power consumption: 175mW/ Peak power consumption: 2.8W |
| Power interface type | Type-C_DC 5V 2A |
| Package size | Length 290× width 200× height 178mm |
| Body weight of equipment | 630g (ball machine body) |
| Packing weight | 1515g |
| Waterproof and dustproof | IP65 |
