Model NO. | KBBB60HTC500FEH | KBBB60HTC500ESH | KBBB60HTC500FPE |
Video Output Mode | AHD/TVI:5M@20fps/12.5fps, 4M@30fps, 2M@30fps; CVI: 4M@30fps, 2M@30fps | AHD/TVI: 5M@20fps/12.5fps, 4M@30fps, 2M@30fps; CVI: 4M@30fps, 2M@30fps | AHD/TVI: 5M@20fps/12.5fps, 4M@30fps/25fps/15fps, 2M@30fps/25fps; CVI: 4M@30fps/25fps, 2M@30fps/25fps |
Camera | |||
Image Sensor | 1/3" CMOS Sensor | 1/2.8" SONY Starvis Back- illuminated CMOS sensor | 1/3" CMOS Sensor |
Image Resolution | 5M:2592*1944 4M:2560*1440 2M:1920*1080 | 5M:2592*1944 4M:2560*1440 2M:1920*1080 | 5M:2592*1944 4M:2560*1440 2M:1920*1080 |
Electronic Shutter | AUTO | PAL/NTSC | PAL/NTSC |
TV System | PAL/NTSC | Auto | Auto |
Minimun Illumination | 0.01Lux | 0.005Lux | 0.01Lux |
Scanning System | Progressive Scan | Progressive Scan | Progressive Scan |
Lens | |||
Focus Length | Board Lens 6mm | Board Lens 6mm | Board Lens 6mm |
Focus Control | Fixed | Fixed | Fixed |
Lens Type | Fixed | Fixed | Fixed |
Night Vision | |||
IR Cut Filter | YES | YES | YES |
Infrared LED | 42µ x 4PCS | 42µ x 4PCS | 42µ x 4PCS |
Infrared Distance | 40M | 40M | 40M |
IR Status | AGC Auto Control | AGC Auto Control | AGC Auto Control |
Camera Features | |||
Starlight | / | YES | / |
Day/Night | YES/NO | YES/NO | YES/NO |
OSD Menu | YES | YES | YES |
WDR | DWDR | YES | DWDR |
UTC | YES | YES | YES |
Noise Reduction | DNR | AI-DNR | DNR |
White Balance | AUTO / MANUAL | AUTO / MANUAL | AUTO / MANUAL |
Gain Control | AUTO | AUTO | AUTO |
General | |||
Housing | IP67 | IP67 | IP67 |
Bracket | YES | YES | YES |
Operation Temperature | -10℃ ~ +60℃ RH95% Max | -10℃ ~ +60℃ RH95% Max | -10℃ ~ +60℃ RH95% Max |
Storage Temperature | -20℃ ~ +60℃ RH95% Max | -20℃ ~ +60℃ RH95% Max | -20℃ ~ +60℃ RH95% Max |
Power Source | DC12V±10%,750mA | DC12V±10%,750mA | DC12V±10%,750mA |

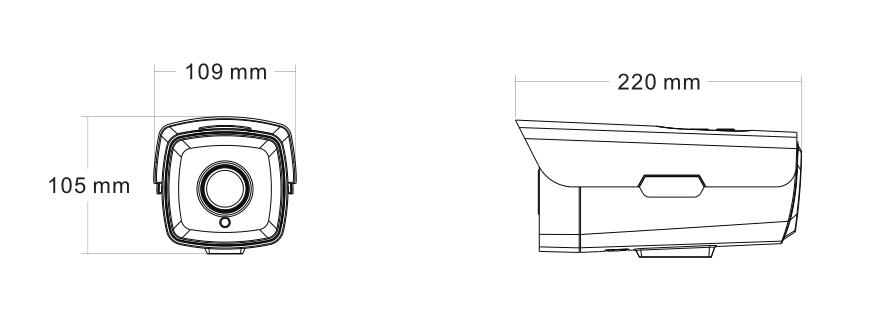

Dimension | 220(W) x 105(H) x 109(D)mm | 220(W) x 105(H) x 109(D)mm | 220(W) x 105(H) x 109(D)mm |
Weight | 2.15Kgs (With bracket) | 2.15Kgs (With bracket) | 2.15Kgs (With bracket) |
