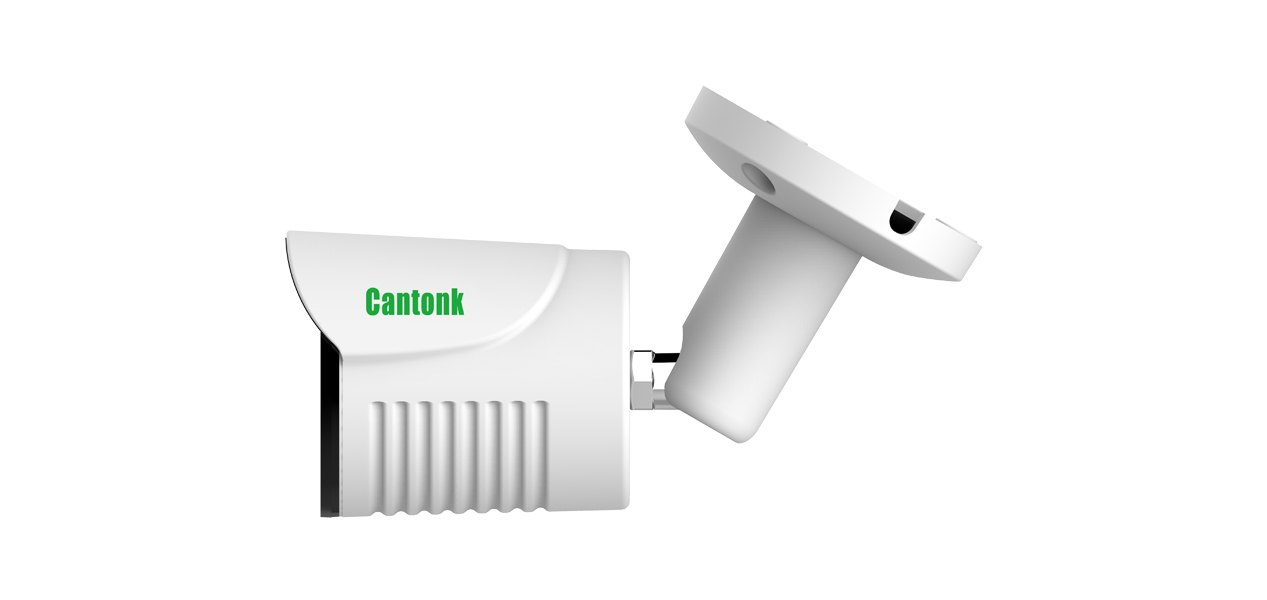

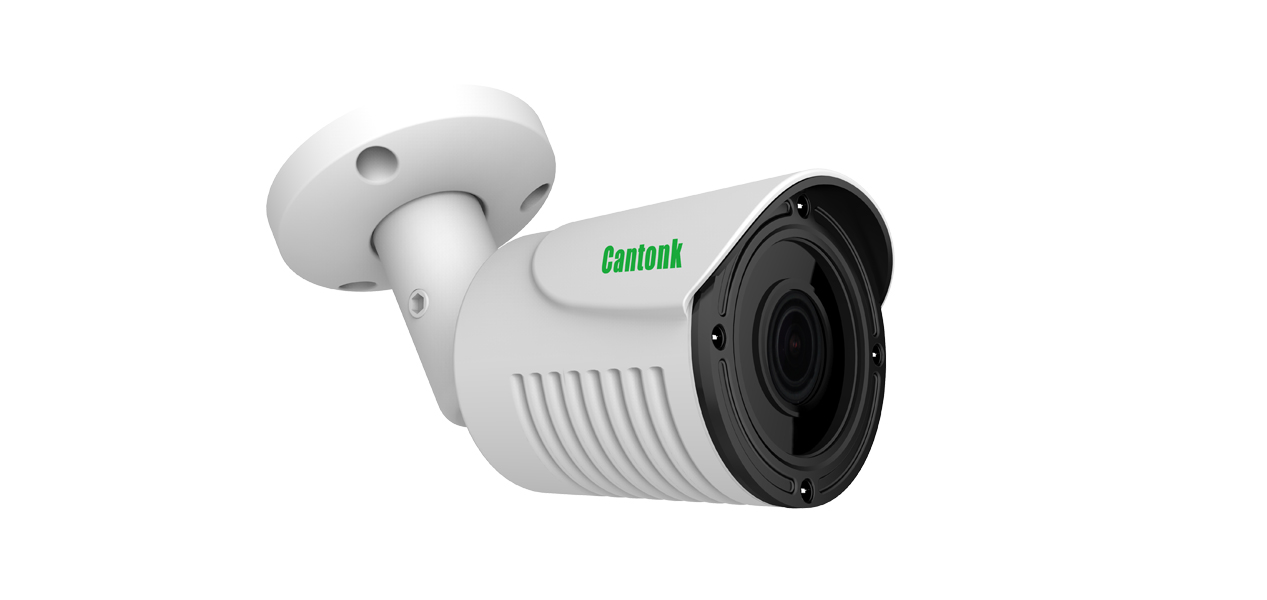

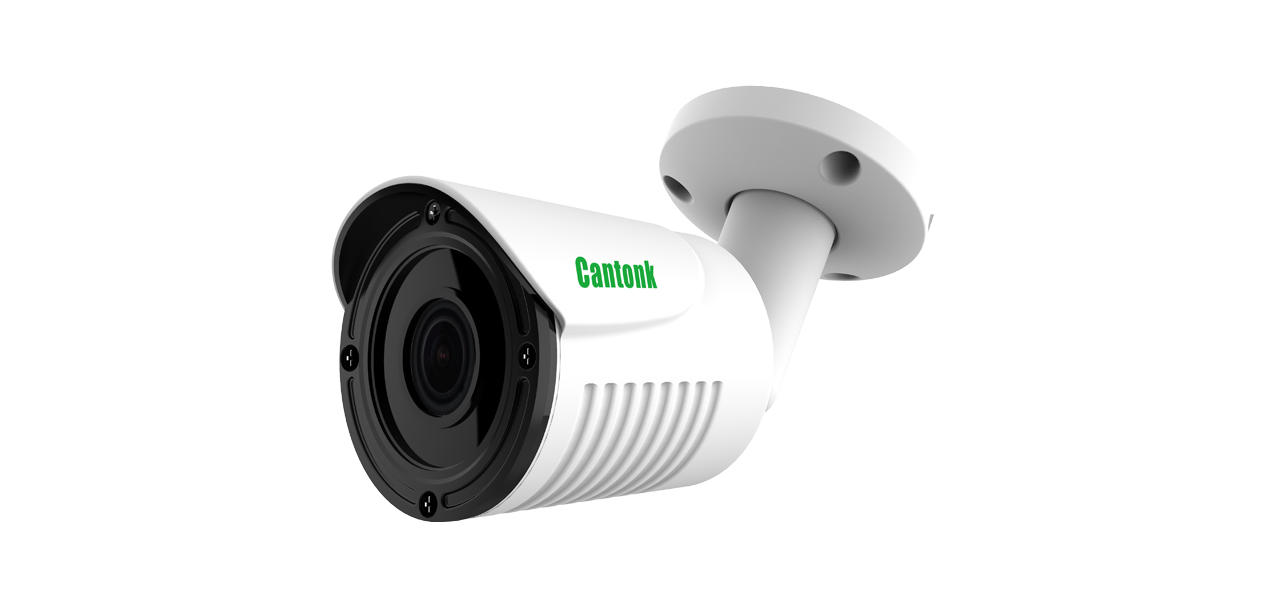

AHD CD20 5MP
  • Specification
  • Drawing
  • Download
  • Feedback
Model NO.KBCD20HTC500FEHKBCD20HTC500ESH
Video Output ModeAHD/TVI:5M@20fps/12.5fps,
4M@30fps, 2M@30fps;
CVI: 4M@30fps, 2M@30fps
AHD/TVI: 5M@20fps/12.5fps, 4M@30fps,
2M@30fps; CVI: 4M@30fps, 2M@30fps
Camera
Image Sensor1/3" CMOS Sensor 1/2.8"  SONY Starvis Back-
illuminated CMOS sensor
Image Resolution5M:2592*1944 4M:2560*1440
2M:1920*1080
5M:2592*1944 4M:2560*1440
2M:1920*1080
Electronic ShutterAUTO PAL/NTSC
TV SystemPAL/NTSCAuto
Minimun Illumination0.01Lux0.005Lux
Scanning SystemProgressive ScanProgressive  Scan
Lens
Focus LengthBoard Lens 3.6mmBoard Lens 3.6mm
Focus ControlFixedFixed
Lens TypeFixedFixed
Night Vision
IR Cut FilterYESYES
Infrared LED14µ x 18PCS14µ x 18PCS
Infrared Distance20M20M
IR StatusAGC Auto ControlAGC Auto Control
Camera Features
Starlight/YES
Day/Night  YESYES
OSD Menu YESYES
WDR DWDRYES
UTC YESYES
Noise Reduction DNRAI-DNR
White Balance AUTO / MANUALAUTO / MANUAL
Gain Control AUTOAUTO
General
HousingIP67IP67
BracketYESYES
Operation Temperature-10℃ ~ +60℃ RH95% Max-10℃ ~ +60℃ RH95% Max
Storage Temperature-20℃ ~ +60℃ RH95% Max-20℃ ~ +60℃ RH95% Max
Power SourceDC12V±10%,550mADC12V±10%,550mA
Dimension151(W) x 64(H) x 65.5(D)mm151(W) x 64(H) x 65.5(D)mm
Weight700g 700g
