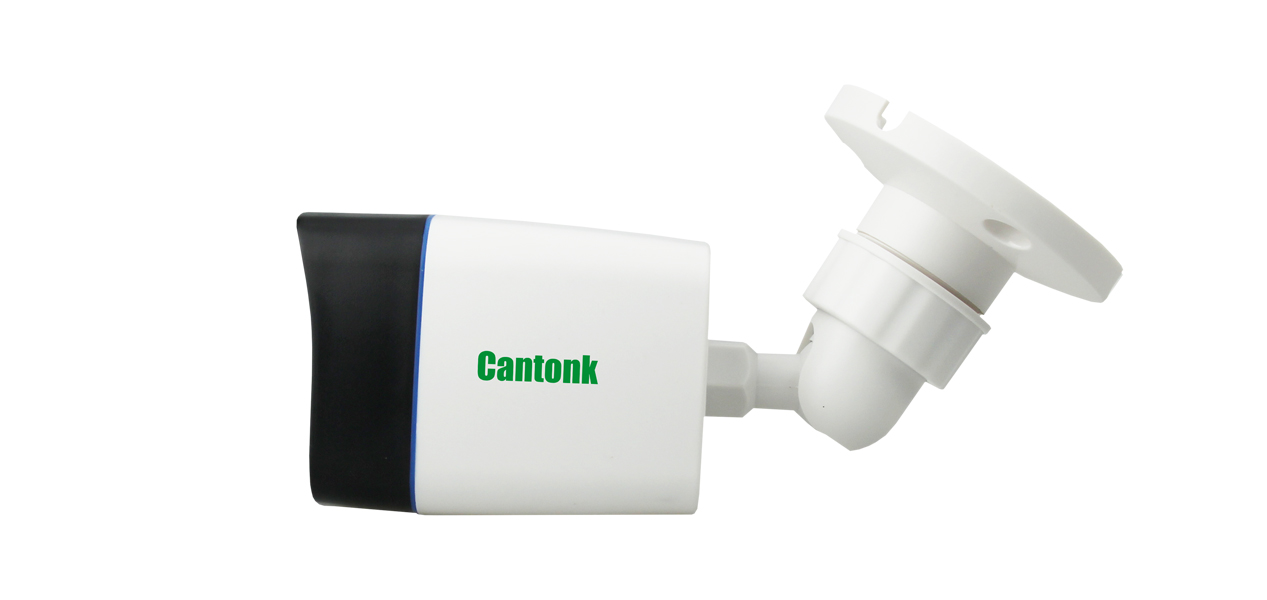

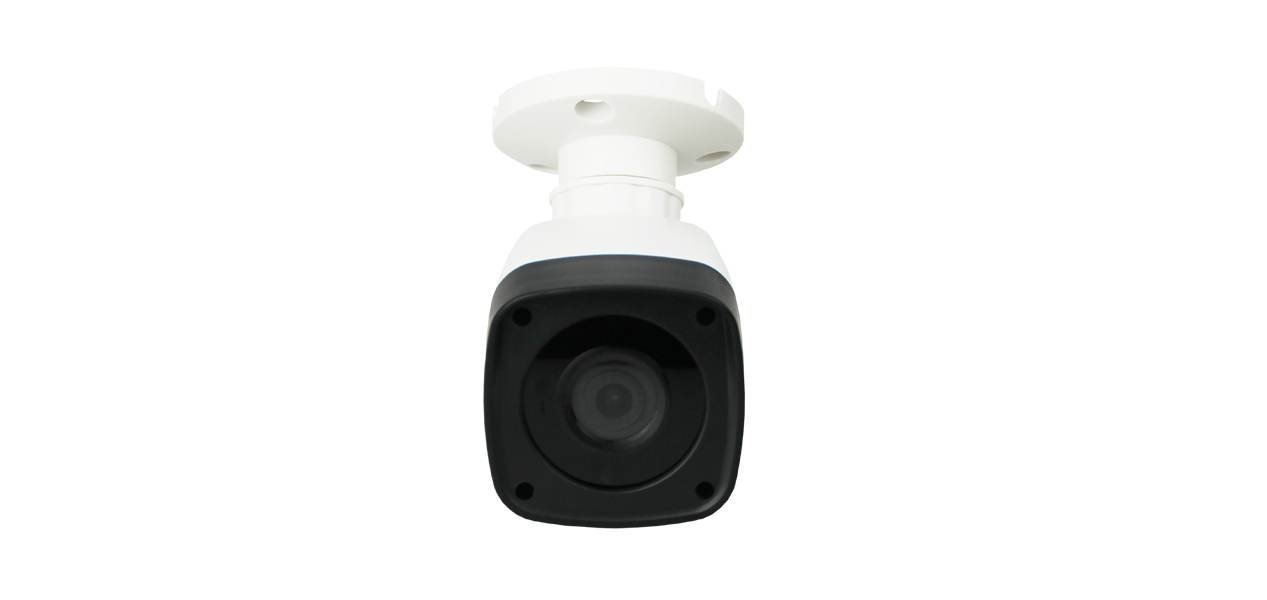

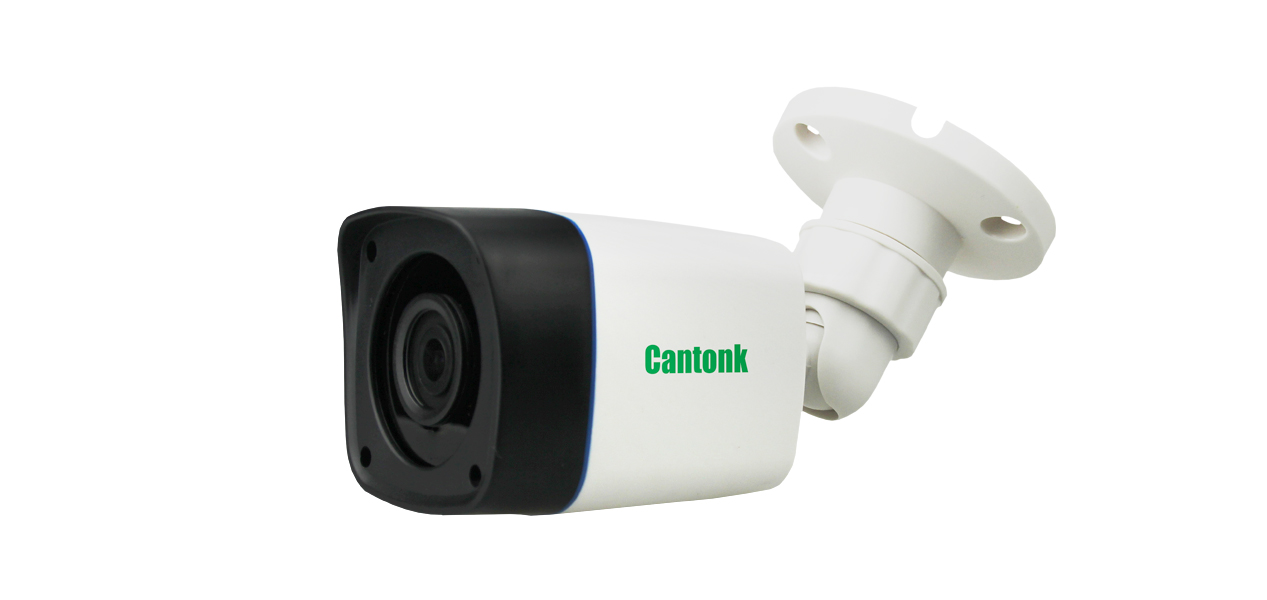

AHD CP20 5MP
  • Specification
  • Drawing
  • Download
  • Feedback
Model NO.KBCP20HTC500FEHKBCP20HTC500ESHKBCP20THC500FPE
Video Output ModeAHD/TVI: 5M@20fps/12.5fps,
4M@30fps, 2M@30fps;
CVI: 4M@30fps, 2M@30fps
AHD/TVI: 5M@20fps/12.5fps, 4M@30fps,
2M@30fps; CVI: 4M@30fps, 2M@30fps
AHD/TVI: 5M@20fps/12.5fps, 4M@30fps/25fps/15fps, 2M@30fps/25fps; CVI: 4M@30fps/25fps, 2M@30fps/25fps
Camera
Image Sensor1/3" CMOS Sensor 1/2.8"  SONY Starvis Back-
illuminated CMOS sensor
1/3" CMOS Sensor
Image Resolution5M:2592*1944 ; 4M:2560*1440
2M:1920*1080
5M:2592*1944 4M:2560*1440
2M:1920*1080
5M:2592*1944 4M:2560*1440 2M:1920*1080
Electronic ShutterAUTO PAL/NTSCPAL/NTSC
TV SystemPAL/NTSCAutoAuto
Minimun Illumination0.01Lux0.005Lux0.01Lux
Scanning SystemProgressive ScanProgressive  ScanProgressive  Scan
Lens
Focus LengthBoard Lens 3.6mmBoard Lens 3.6mmBoard Lens 3.6mm
Focus ControlFixedFixedFixed
Lens TypeFixedFixedFixed
Night Vision
IR Cut FilterYESYESYES
Infrared LED14µ x 18PCS14µ x 18PCS14µ x 18PCS
Infrared Distance20M20M20M
IR StatusCDS Auto ControlCDS Auto ControlAGC auto control
Camera Features
Starlight/YES/
Day/Night  YESYESYES/NO
OSD Menu YESYESYES
WDR DWDRYESDWDR
UTC YESYESYES
Noise Reduction DNRAI-DNRDNR
White Balance AUTO / MANUALAUTO / MANUALAUTO / MANUAL
Gain Control AUTOAUTOAUTO
General
HousingIP67IP67IP67
BracketYESYESYES
Operation Temperature-10℃ ~ +60℃ RH95% Max-10℃ ~ +60℃ RH95% Max-10℃ ~ +60℃ RH95% Max
Storage Temperature-20℃ ~ +60℃ RH95% Max-20℃ ~ +60℃ RH95% Max-20℃ ~ +60℃ RH95% Max
Power SourceDC12V±10%,550mADC12V±10%,550mADC12V±10%, 550mA
Dimension160.8(W) x 62(H) x 62(D)mm160.8(W) x 62(H) x 62(D)mm160.8(W) x 62(H) x 62(D)mm
Weight380g 380g 380g
