| Model NO. | KDSU20HTC800FKP | KDSU20HTC800ESL | KDSU20HTC800ES | KDSU20HTC800FKE |
| Video Output Mode | AHD/TVI:8M@15fps, 5M@20fps/12.5fps, 4M/2M@30fps/25fps; CVI: 8M@15fps/12.5fps, 4M/2M@30fps/25fps | AHD: 8M@15fps, 5M@20fps/12.5fps, 4M/2M@30fps/25fps; CVI:8M@15fps/12.5fps, 4M/2M@30fps/25fps; TVI: 8M@15fps/12.5fps, 5M@20fps/12.5fps, 4M/2M@30fps/25fps | AHD/TVI/CVI: 8M@15fps/12.5fps, 4M/2M@30fps/25fps | AHD: 8M@15fps, 5M@20fps/12.5fps, 4M@30fps/25fps/15fps, 2M@30fps/25fps; TVI: 8M@15fps/12.5fps, 5M@20fps/12.5fps 4M@30fps/25fps/15fps, 2M@30fps/25fps; CVI: 8M@15fps/12.5fps, 5M@20fps/12.5fps 4M/2M@30fps/25fps |
| Camera | ||||
| Image Sensor | 1/2.5" CMOS sensor | 1/2.8" SONY Starvis Back- illuminated CMOS sensor | 1/2.8'' SONY CMOS sensor | 1/2.5" CMOS sensor |
| Image Resolution | 8M:3840*2160 5M:2592*1944 4M:2560*1440 2M:1920*1080 | 8M:3840*2160 5M:2592*1944 4M:2560*1440 2M:1920*1080 | 8M:3840*2160 4M:2560*1440 2M:1920*1080 | 8M:3840*2160 5M:2592*1944 4M:2560*1440 2M:1920*1080 |
| TV System | PAL/NTSC | PAL/NTSC | PAL/NTSC | PAL/NTSC |
| Electronic Shutter | Auto | Auto | Auto | Auto |
| Scanning System | Progressive Scan | Progressive Scan | Progressive Scan | Progressive Scan |
| Lens | ||||
| Focus Length | Board Lens 3.6mm | Board Lens 3.6mm | Board Lens 3.6mm | Board Lens 3.6mm |
| Focus Control | Fixed | Fixed | Fixed | Fixed |
| Lens Type | Fixed | Fixed | Fixed | Fixed |
| Night Vision | ||||
| IR Cut Filter | YES | YES | YES | YES |
| Infrared LED | 14µ x18PCS | 14µ x18PCS | 14µ x18PCS | 14µ x18PCS |
| Infrared Distance | 20M | 20M | 20M | 20M |
| IR Status | AGC Auto Control | AGC Auto Control | AGC Auto Control | AGC Auto Control |
| Camera Features | ||||
| Starlight | / | / | / | / |
| Day/Night | YES | YES | YES | YES |
| OSD Menu Language | YES | YES | YES | YES |
| WDR | DWDR | YES | YES | DWDR |
| UTC | YES | YES | YES | YES |
| Noise Reduction | 3DNR | 3DNR | 3DNR | DNR |
| Coaxial Audio | / | / | / | YES(only TVI ) |
| White Balance | AUTO / MANUAL | AUTO / MANUAL | AUTO / MANUAL | AUTO / MANUAL |
| Gain Control | AUTO | AUTO | AUTO | AUTO |
| General | ||||
| Housing | IP67 | IP67 | IP67 | IP67 |
| Bracket | NO | NO | NO | NO |
| Operation Temperature | -10℃ ~ +60℃ RH95% Max | -10℃ ~ +60℃ RH95% Max | -10℃ ~ +60℃ RH95% Max | -10℃ ~ +60℃ RH95% Max |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max | -20℃ ~ +60℃ RH95% Max | -20℃ ~ +60℃ RH95% Max | -20℃ ~ +60℃ RH95% Max |
| Power Source | DC12V±10%,550mA | DC12V±10%,550mA | DC12V±10%,550mA | DC12V±10%,550mA |

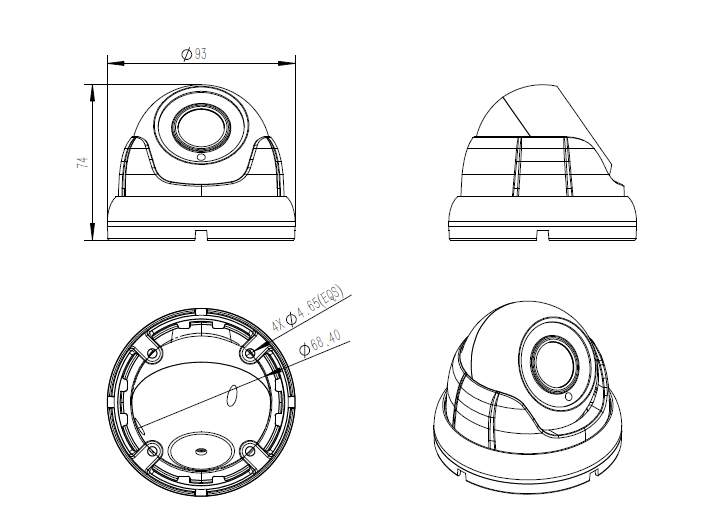

| Dimension | ￠93 x 74(H) mm | ￠93 x 74(H) mm | ￠93 x 74(H) mm | ￠93 x 74(H) mm |
| Weight | 400g | 400g | 400g | 400g |
