AHD SCB 8MP
  • Specification
  • Drawing
  • Download
  • Feedback
Model NO.KSCBHTC800ESLKSCBHTC800ESKSCBHTC800FKE
Video Output ModeAHD: 8M@15fps,
5M@20fps/12.5fps,
4M/2M@30fps/25fps;
CVI: 8M@15fps/12.5fps,
4M/2M@30fps/25fps
TVI: 8M@15fps/12.5fps,
5M@20fps/12.5fps,
4M/2M@30fps/25fps;
AHD/TVI/CVI:
8M@15fps/12.5fps,
4M/2M@30fps/25fps
AHD: 8M@15fps,
5M@20fps/12.5fps,
4M/2M@30fps/25fps;
TVI/CVI:
8M@15fps/12.5fps,
5M@20fps/12.5fps
 4M/2M@30fps/25fps
Camera
Image Sensor1/2.8" SONY Starvis Back-
illuminated CMOS sensor
1/2.8'' SONY CMOS sensor1/2.5" CMOS sensor
Image Resolution8M:3840*2160
5M:2592*1944
4M:2560*1440
2M:1920*1080
8M:3840*2160
4M:2560*1440
2M:1920*1080
8M:3840*2160
5M:2592*1944
4M:2560*1440
2M:1920*1080
TV SystemPAL/NTSCPAL/NTSCPAL/NTSC
Electronic ShutterAutoAutoAuto
Scanning SystemProgressive  ScanProgressive  ScanProgressive  Scan
Lens
Focus LengthBoard Lens 3.6mmBoard Lens 3.6mmBoard Lens 3.6mm
Focus ControlFixedFixedFixed
Lens TypeFixedFixedFixed
Night Vision
IR Cut FilterYESYESYES
Infrared LED20µ x2PCS20µ x2PCS20µ x2PCS
Infrared Distance25M25M25M
IR StatusAGC Auto ControlAGC Auto ControlAGC Auto Control
Camera Features
Starlight///
Day/Night  YESYESYES
OSD Menu YESYESYES
WDR YESYESDWDR
UTC YESYESYES
Noise Reduction 3DNR3DNRDNR
Coaxial Audio//YES(only TVI )
White Balance AUTO / MANUALAUTO / MANUALAUTO / MANUAL
Gain Control AUTOAUTOAUTO
General
HousingIP67IP67IP67
BracketNONONO
Operation Temperature-10℃ ~ +60℃ RH95% Max-10℃ ~ +60℃ RH95% Max-10℃ ~ +60℃ RH95% Max
Storage Temperature-20℃ ~ +60℃ RH95% Max-20℃ ~ +60℃ RH95% Max-20℃ ~ +60℃ RH95% Max
Power SourceDC12V±10%,500mADC12V±10%,500mADC12V±10%,500mA

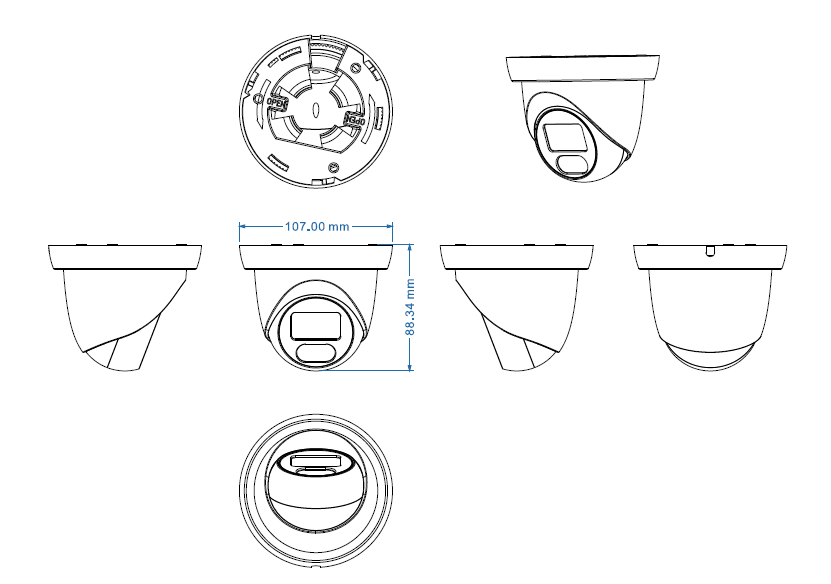

Dimension¢108x85(H)mm¢108x85(H)mm¢108x85(H)mm
Weight400g400g400g
