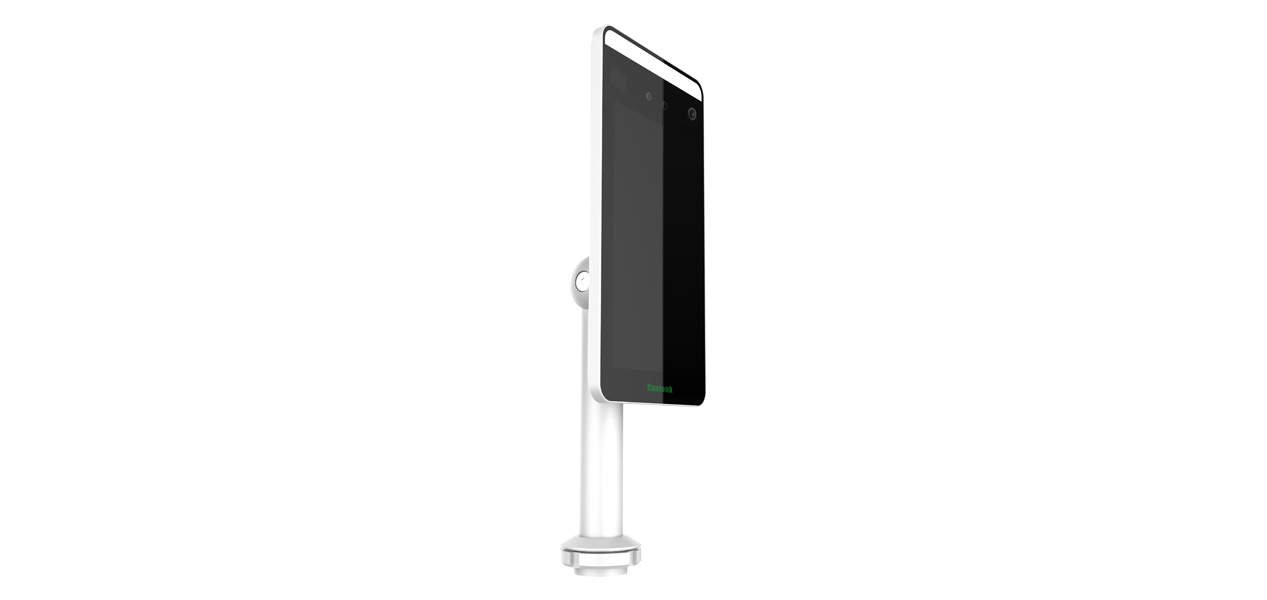

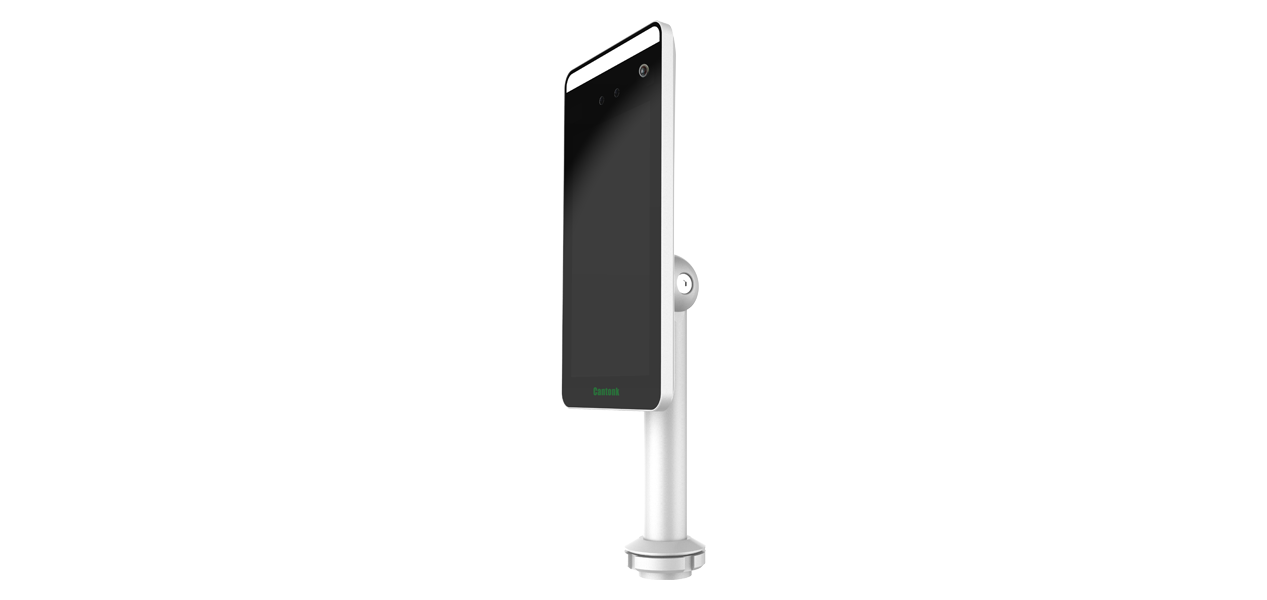

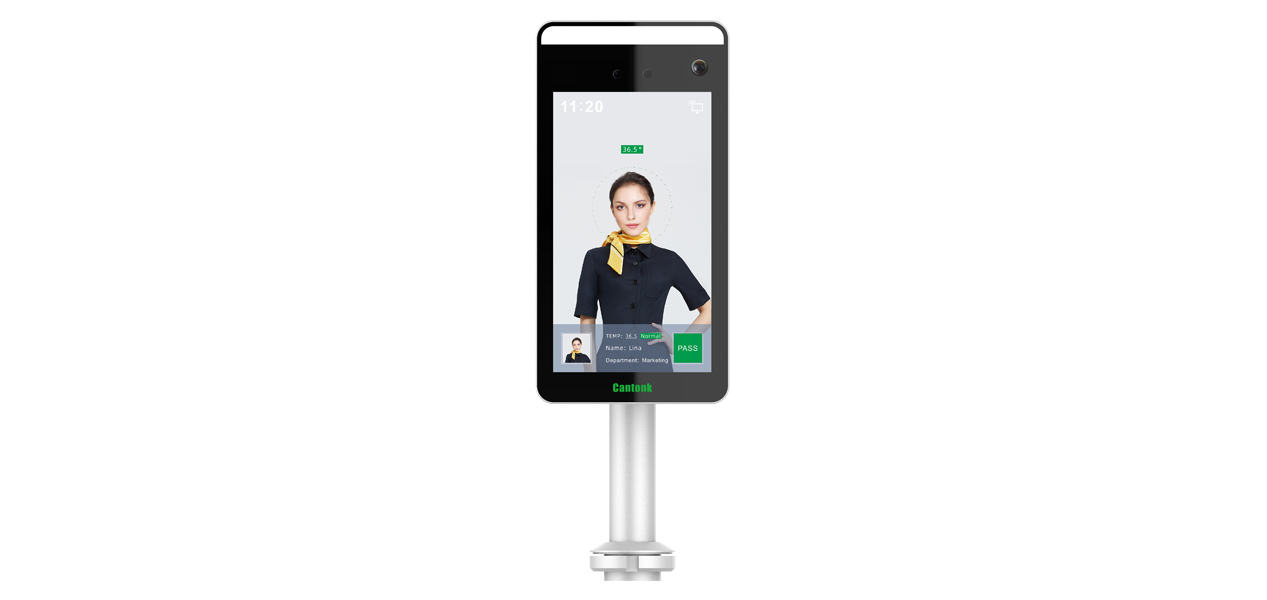

| Model NO. | S02 | |
| System | ||
| Main Processor | SV810 | |
| Operating System | Embedded LINUX | |
| RAM | DDR3 512MB | |
| ROM | EMMC 8GB | |
| Screen | ||
| Dimensions | 7 inch IPS HD LCD screen | |
| Resolution | 600*1024 | |
| Camera | ||
| Type | 2MP camera | |
| Sensor | 1/2.9" GC2053 | |
| Resolution | NIR 800*600 15fps | |
| Lens | 4.51mm | |
| Camera | ||
| Type | Daily camera | |
| Sensor | 1/2.9" GC2093 | |
| Resolution | Color 1920*1080 30fps | |
| Lens | 4.51mm | |
| Face recognition | ||
| Detection Type | Mask detection only | |
| Face Recognition Distance | 0.5-2m | |
| Face database Capacity | Max support 30,000 faces | |
| Recognition Angle | Vertical 61°, Horizontal 36° | |
| Occlusion | Ordinary glasses and short fringe have no effect on recognition. | |
| Expression | Under normal circumstances, slight expressions do not affect recognition. | |
| Response Speed | About 200ms | |
| Face Exposure | Support | |
| Local Storage | Support storage of 25,000 records | |
| Recognition Area | Full screen recognition | |
| Upload Method | TCP, HTTP, MQTT | |
| Network Functions | ||
| Network protocol | IPv4, TCP/IP, HTTP, HTTPS, MQTT, SMTP, NTP | |
| Interface protocol | Private protocol | |
| Security Mode | Authorized password | |
| Event linkage | Voice broadcast, Abnormal event upload to the platform, Alarm Output | |
| System Upgrade | Support remote upgrade | |
| Accessories | ||
| Supplementary light | IR light, LED white light | |
| Identification Module | / | |
| Audio out | Built in Speaker support voice broadcast after successful recognition | |
| Network Module | / | |
| Interface | ||
| Network Interface | RJ45 10M/100M Network Adaptation | |
| Alarm Input | / | |
| Alarm Output | Support 1 channel | |
| Relay Output | Support | |
| RS485 Interface | Support(Reserved interface, no peripheral devices are supported currently) | |
| Wiegand Interface | Support Wiegand 26, 34 protocols | |
| USB | 1*USB 2.0 | |
| TTL Serial | TTL DC 3.3V | |
| TF Card Slot | / | |
| HDMI | / | |
| Reset key | Support | |
| Anti-disassembly Switch | / | |
| General | ||
| Housing | Aluminum alloy, Ultra-white tempered glass panel, IP66 | |
| Operating Temperature | -10℃~50℃ | |
| Working Humidity | 10% -90% Non-condensing | |
| Storage Temperature | -40 ° C ~ 70 ° C | |
| Storage Humidity | 5% -95% Non-condensing | |
| Protection Level | / | |
| Power Supply | DC12V | |
| Power Dissipation (maximum) | ≤ 8 W | |

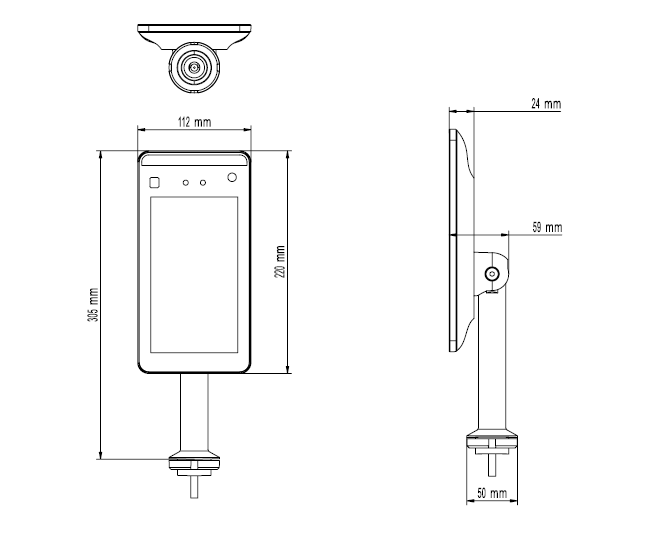

| Dimensions (mm) | 220 (W) * 112 (H) * 24 (T) | |
| Bracket size (mm) | φ50x188.5(Installation hole diameter φ33) | |
| Installation Method | Desktop installation/Floor installation/Gate machine installation/Column installation/Wall installation | |
