| Model NO. | S03T | |
| System | ||
| Main Processor | SV806 | |
| Operating System | Embedded LINUX | |
| RAM | DDR3 256MB | |
| ROM | EMMC 4GB | |
| Screen | ||
| Dimensions | 5 inch IPS HD LCD screen | |
| Resolution | 1280*720 | |
| Camera | ||
| Type | 2MP camera | |
| Sensor | 1/5" GC2145 | |
| Resolution | NIR 800*600 15fps | |
| Lens | 2.28mm | |
| Camera | ||
| Type | Daily camera | |
| Sensor | 1/2.8" SONY Starvis Back-illuminated CMOS sensor IMX307 | |
| Resolution | Color 1920*1080 30fps | |
| Lens | 4.3mm | |
| Body temperature detection | ||
| Temperature measuring distance | 0.5m~0.75m | |
| Temperature range | 35℃-42℃ | |
| Temperature measurement time | ＜2s | |
| Temperature measurement accuracy | ± 0.3℃ | |
| Measuring Environment | 8 ° C ~ 33 ° C | |
| Face recognition | ||
| Detection Type | Support face recognition, face comparison, mask detection, living body detection, mask recognition | |
| Face recognition accuracy | 0.995 | |
| Face recognition distance | 0.5~2m | |
| Face database capacity | Max support 2,000 faces | |
| Face Posture | Horizontal less than 67°, vertical less than 40° | |
| Occlusion | Ordinary glasses and short fringe have no effect on recognition. | |
| Expression | Under normal circumstances, slight expressions do not affect recognition. | |
| Response Speed | About 200ms | |
| Face exposure | Support | |
| Local Storage | Support storage of 5,000 records | |
| Recognition area | Full screen recognition | |
| Upload Method | TCP, HTTP, MQTT | |
| Network Functions | ||
| Network protocol | IPv4, TCP/IP, HTTP, MQTT | |
| Interface protocol | Private protocol | |
| Security Mode | Authorized password | |
| Event linkage | Voice broadcast, Abnormal event upload to the platform, Alarm output | |
| System Upgrade | Support remote upgrade | |
| Accessories | ||
| Supplementary light | IR light, LED white light | |
| Identification Module | / | |
| Audio In | Support Internal MIC (Developing) | |
| Audio Out | Built in Speaker support voice broadcast after successful recognition | |
| Network Module | / | |
| Wi-Fi | 2.4G/5.8G Dual frequency, IEEE 802.11b/g/n, IEEE802.11a/ac | |
| Bluetooth | / | |
| Temperature Sensor | Heimann32*32 | |
| Alarm Indicator Light | Abnormal red light, Normal green light | |
| Interface | ||
| Network Interface | RJ45 10M/100M Network Adaptation | |
| Alarm Input | / | |
| Alarm Output | / | |
| Relay Output | Support, NO, NC, COM | |
| RS485 interface | Support | |
| Wiegand interface | Support external Wiegand protocol equipment | |
| TF card slot | / | |
| HDMI | / | |
| Reset key | Support | |
| Anti-disassembly switch | / | |
| General | ||
| Housing | Plastic (PC+ABS), Aluminum alloy, Glass | |
| Operating Temperature | 8 ° C ~ 33 ° C | |
| Working humidity | 10% -90% Non-condensing | |
| Storage Temperature | -20 ° C ~ 70 ° C | |
| Storage humidity | 5% -95% Non-condensing | |
| Protection Level | / | |
| Power Supply | DC12V, 2A | |
| Power dissipation (maximum) | ≤ 12 W | |

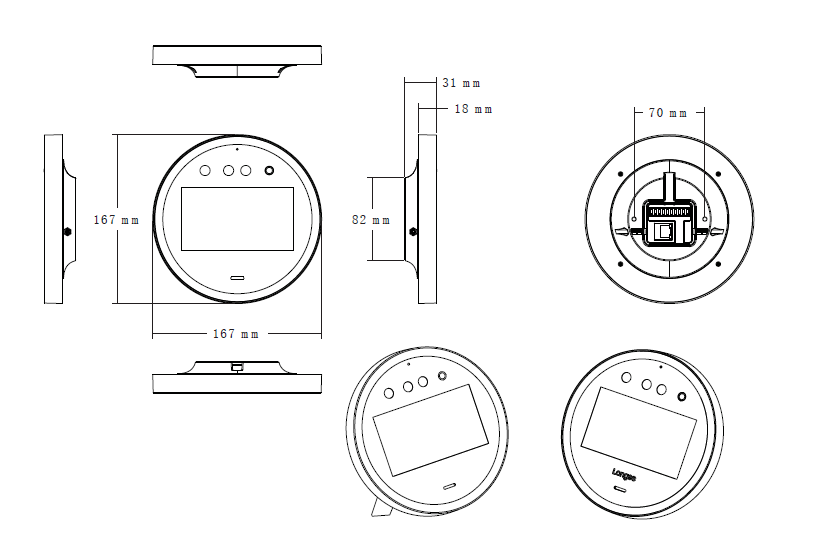

| Dimensions (mm) | φ167*18.3mm | |
| Bracket Type | Wall Mounting & Desktop | |
| Product weight (without packaging) | 1.2kg | |
| Packing size (mm) | 241×202×104mm | |
| Installation Method | Desktop installation/Doorpost installation/Wall installation | |
