PRODUCTS

S5003TP
  • Specification
  • Drawing
  • Download
  • Feedback
Model NO.S5003TP
Camera
Image Sensor1/2.8" SONY Starvis Back-illuminated CMOS sensor
Resolution4MP
Effective Pixels2616 (H) x 1964 (V)
Compression H.264/H.264+/H.265/H.265+/JPEG/AVI
TV SystemPAL/NTSC
Electronic Shutter TimeAuto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
Minimun Illumination0.01Lux
S/N Ratio≥52dB
Scanning SystemProgressive
Reset ButtonSupport
Lens
Focus LengthBoard Lens 3.6mm
Focus ControlFixed
Lens TypeFixed
Pixels4MP
Night Vision
Infrared LEDNot support
Infrared Distance/
IR Status/
IR Power On/
Network
EthernetRJ-45 (10/100Base-T)
Wireless/
ProtocolTCP/IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE
P2PYES, Support QR Code
POE/
Main Stream 1Optical: 2592*1944@20fp
2560*1920@20fp
Main Stream 2Optical: 2560*1440@30fp
Main Stream 3Optical: 1920*1080@30fps
1280*720@30fps
Sub Stream 1Optical: 352*288@30fps
Sub Stream 2/
Sub Stream 3/
Tri StreamThermal: 256*192@25fps
Web BrowserIE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
Smart PhoneiPhone, iPad, Android, Android Pad
IE Brower IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53), Mac Safari(lower than version 12)
Smart PhoneiPhone, iPad, Android, Android Pad
Thermal
Image SensorVox Uncooled Focal Plane Arrays
Resolution256x192
Pixel Interval12μm
NETDLess than 60 mK (@25°C.F#=1.1)
ApertureF1.1
Focal Length3.2mm
Field of View56° x 42° (H x V)
Smart Function
Bi-spectrum Image
Fusion
Support  display the thermal image and optical image simultaneously
Face CaptureBuilt-in deep learning Al algorithm, Face snaping support 30 faces
detection simultaneous and measure temperature 6 faces
Temperature
measurement
Non-contact temperature measurement, Temperature measuring range: 1-4m
Temperature Range35°C~42°C
Temperature AccuracyHighly accurate temperature measurement within ±0.5 °C, with black body ±0.3 °C
Alarm Indicator LightSuport light flash when detect abnormal temperature
Sound AlarmBuilt in speaker support voice broadcast when detect abnormal temperature
Local Record StorageSupport local snapshot records and temperature measurement records,Support video storage and playback
DisplaySupport HD output, maximum support 4K output
Local OperationSupport local configuration with mouse
Sound AlarmBuilt in speaker support voice broadcast when detect abnormal temperature
Camera Features
Day/NightColor
Image ConfigSaturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control)
Corridor Pattern/
Defog  ModeSupport
BLCSupport
WDRHDR:120dB
Motion DetectionSupport
Privacy  Masking3 Rectangular Zone
Recording ModeSD Card
LanguageChinese Simplified, Chinese Traditional, English

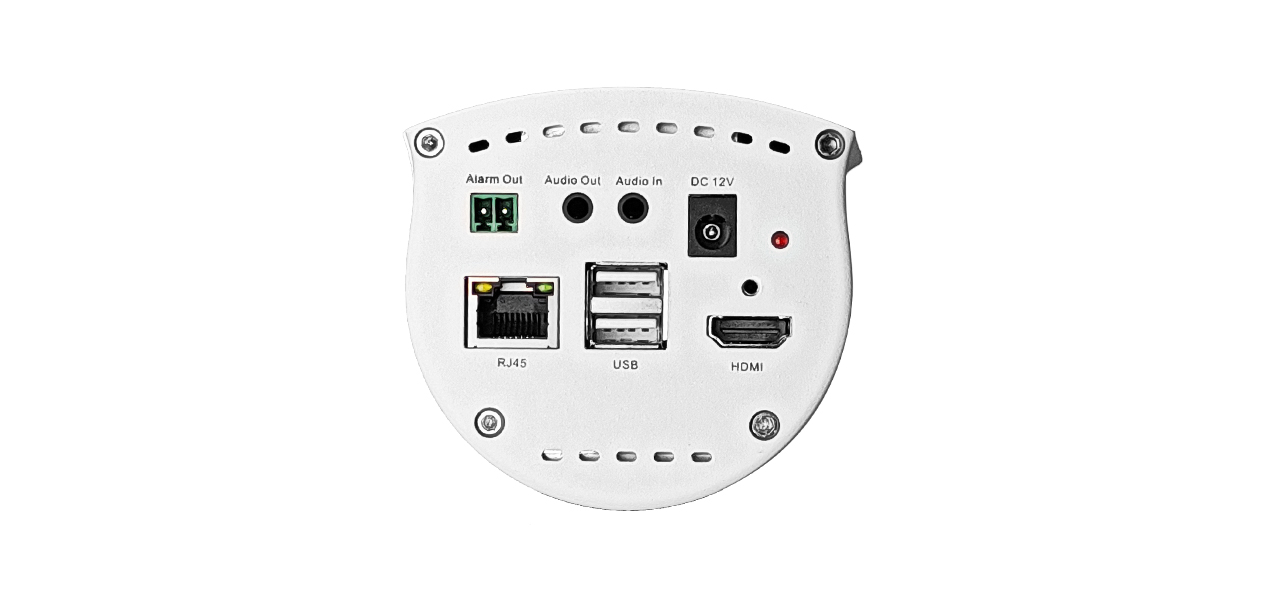

Interface
Audio1CH Bulit In Mic, 1 Channel Intput/Output
Alarm1 Channel Output
SD Card SlotSupport Max 512GB
Video OuputHD Output
USBUSB2.0*2
RS485/
General
HousingAluminum alloy, plastic
IR Cut FilterYes
Operation Temperature(Temperature measuring)10℃ ~ +35℃ RH95% Max
Storage Temperature-20℃ ~ +60℃ RH95% Max
Power Source1000mA/12V

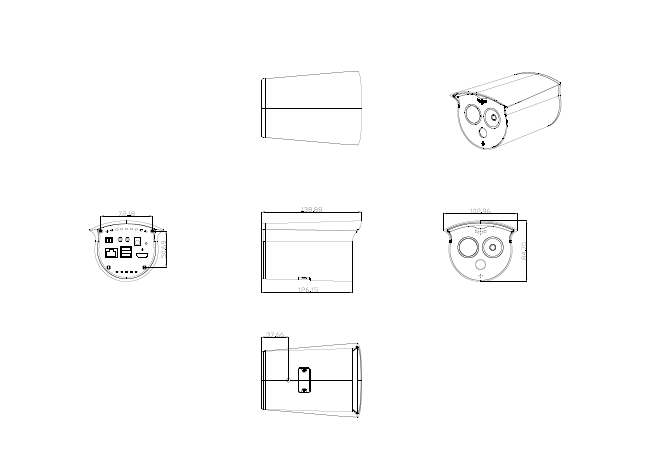

Dimension239.53(L)*102.96(W)*84.7(H)mm
Weight1.4KG
