| Model NO. | S280G | |
| Basic Parameters | ||
| Driver Signal | 12V | |
| Driver Voltage | 24V | |
| Movement | Single | |
| Passing Speed | 30 Persons/Min | |
| Traffic | Steering of Brake lever,Unidirectional/Bidirectional (optional) | |
| Material | 304 Stainless | |
| Channel Width | ≤500mm | |
| Card Reader | Support | |
| Counting People | Support | |
| Interface | ||
| RS485 | RS485 electrical standard,communication distance: <1200 meters | |
| Input Port | Switch Signal(NO NC COM) | |
| General Specification | ||
| Power | 220V±10% 50Hz 110V±10% 60Hz(optional) | |
| Working Temperature | -30℃~60℃/10~95% | |

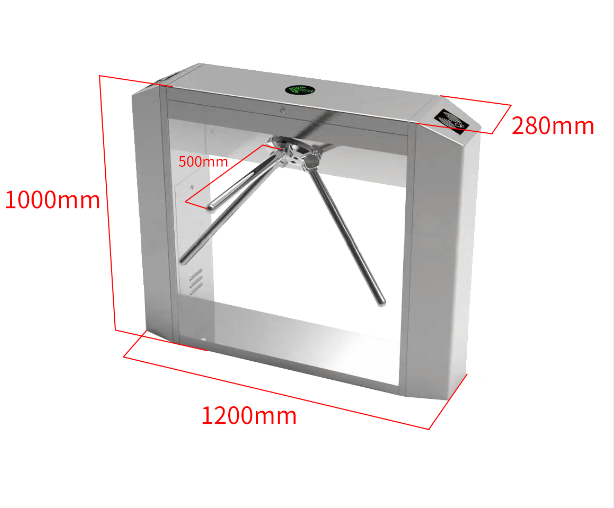

| Device Size | 1200*280*1000mm | |
| Package Size | 128*37*116 | |
| Package Weight | 143KGs | |
