| Model NO. | iBox 1 | |
| System | ||
| Main Processor | ARM Cortex A7 Processor | |
| Operating System | Embedded LINUX | |
| Video | ||
| Input | 4 thermal imaging IPC+1 normal IPC | |
| 5CH(3840*2160,2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc) | ||
| Output | 1 VGA, 1 HD | |
| Alarm | ||
| Sensor Input | NO | |
| Output | NO | |
| Motion Detection | 5Channel, MD Zones: 396 (22 × 18) | |
| Trigger Events | Recording, Email, FTP, Snapshot, Buzzer and Screen Tips | |
| Display | ||
| HD Output1 | 1024x768/60Hz，1280x720/60Hz，1280x1024/60Hz，1920x1080/60Hz，4K(3840x2160)/30Hz | |
| HD Output2 | / | |
| VGA | Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
| Display Split | 9CHxD1/8CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k | |
| Digital Zoom | YES | |
| OSD | Camera Title, Time, Recording, Motion Detection, Event Alarm | |
| Recording | ||
| Video Compression | H265/H264/H265+/H264+ | |
| Resolution | 4k(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536), 1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480) | |
| Record Rate | PAL 4K@5x25fps,5MP@5×25fp,4MP59x25fp,3MP@5×25fp, 1080P@5×25fp, 960P@5×25fp,720P@5×25fp, D1@5×25fp NTSC: 4K@5x30fps,5MP@5×30fp,4MP@5×30fp,3MP@5×30fp, 1080P@5×30fp, 960P@5×30fp, 720P@5×30fp, D1@5×30fp | |
| Record Mode | ||
| Local Sync Playback | 1CH@Main stream(Max4K@30fps)+ Sub stream(D1) | |
| Decode Capability | 4CH 1080P(1920x1080)@30fps | |
| Remote Sync Playback | YES | |
| Search Mode | ALL, Channel, Manual, Time, Date, Motion Detection,Event Alarm,Tag search,Temperature | |
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow Play, Full Screen, Frame Play ,Frame Rewind, Digital Zoom,tag,clip | |
| Backup Mode | USB Device/Network | |
| Network | ||
| Interface | 1 x RJ45 (10M/100M Adaptive Ethernet Interface) | |
| Incoming Bandwidth | 80MB | |
| Network Functions | TCP/IP, HTTP,HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE | |
| Onvif Version | Support Onvif 2.8 | |
| Web Browser | IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53) | |
| CMS Software | Support Windows 7/ Windows 8/Windows 10/MAC OS | |
| Cloud Support | Yes | |
| Smart Phone | iPhone, iPad, Android, Android Pad | |
| POE | / | |
| WIFI UI | / | |
| Storage | ||
| Interface Type | 1 SATA Hard Disk Interface (3.5" SATA) | |
| Capacity | Up to 8TB capacity | |
| eSATA | / | |
| General | ||
| Language UI | Traditional Chinese, Simplified Chinese, English | |
| USB Interface | 2 USB 2.0 Interfaces | |
| RS485 | / | |
| Power Supply | DC12V 2A | |
| Working Environment | -10~55℃/10~90% | |

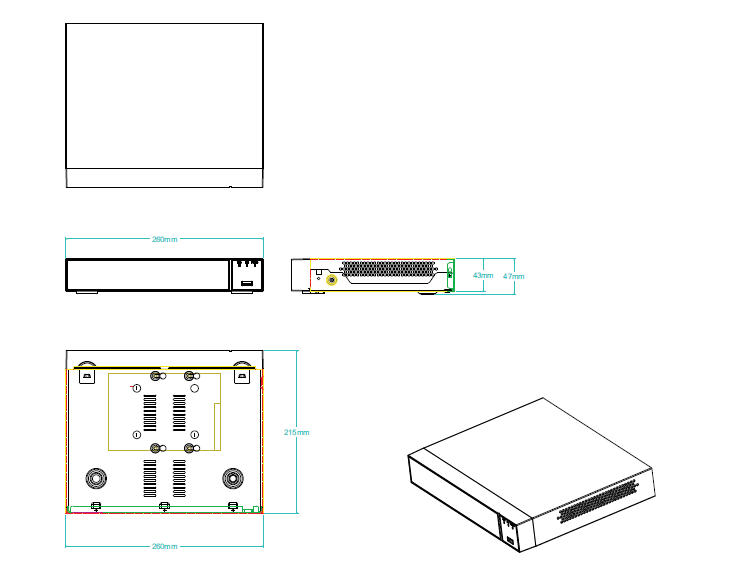

| Dimension(W×D×H) | 260*205*43(mm) | |
| Weight | 2kg(without HDD) | |
